Šifra 280651

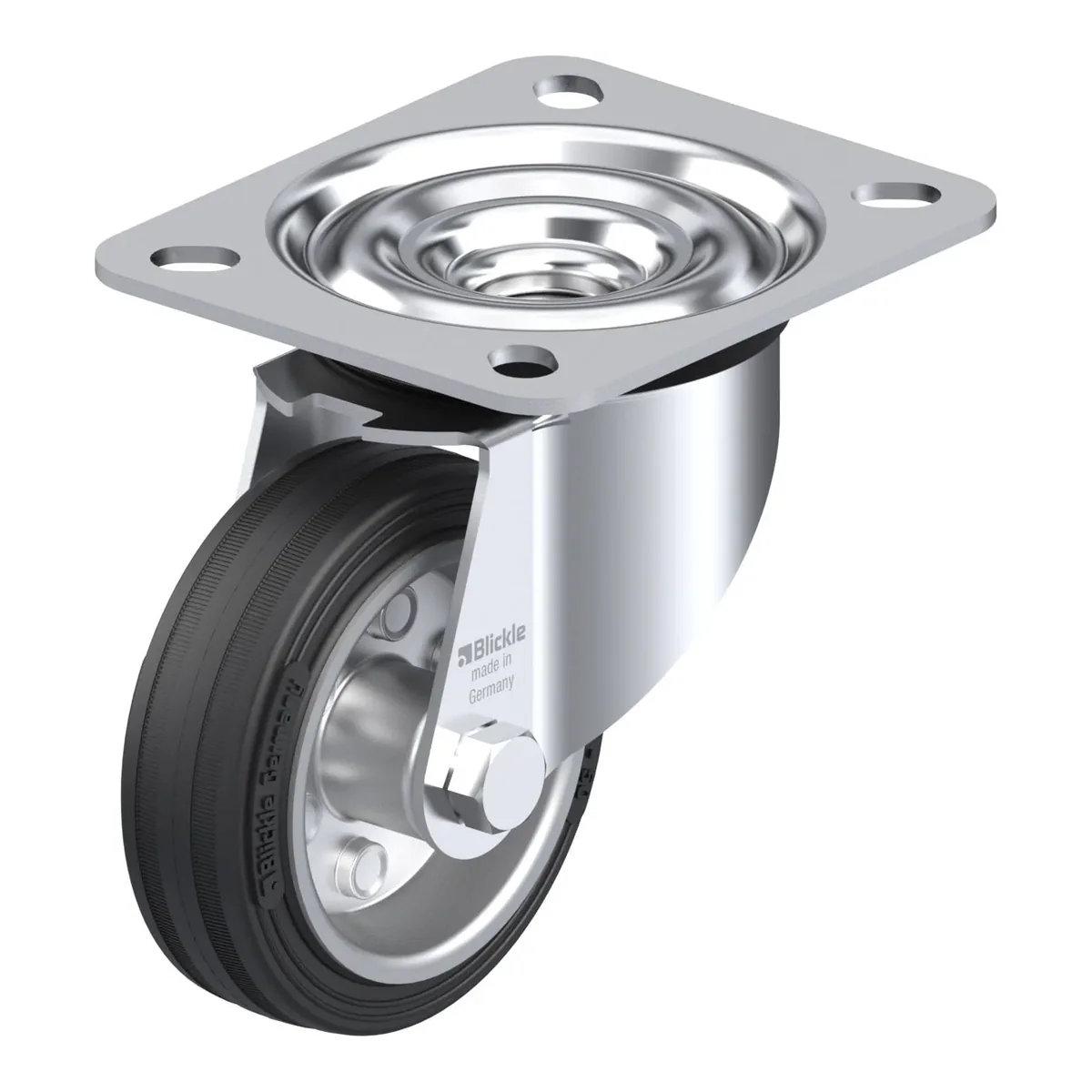

LE-VE 80R
Okretni točkić, Blickle, Made in Germany
Ukratko: LE-VE 80R je okretni točkić Blickle promjera 80 mm, širine 25 mm, nosivosti 50 kg pri 4 km/h (statički 125 kg). Ukupna visina je 102 mm. Cijena je 26.27 KM s PDV-om.
Pressed steel swivel castor, with top plate fitting, wheel, with standard solid rubber tyre, with pressed steel rim
26.27 KM
Redovna cijena 29.19 KM, akcija −10%
Cijena s PDV-om. Dostava širom Bosne i Hercegovine.
Veće količine: posebna ponuda na upit, +387 62 924 140, info@mhtrade.co.ba.
Tehnički podaci
| Šifra artikla | 280651 |
|---|---|
| EAN | 4047526280659 |
| Promjer točka | 80 mm |
| Širina točka | 25 mm |
| Ukupna visina | 102 mm |
| Nosivost pri 4 km/h | 50 kg |
| Statička nosivost | 125 kg |
| Veličina ploče | 100 x 85 mm |
| Razmak rupa | 65.0 x 55.0 mm |
| Offset | 38 mm |
Nosač
- pressed steel, zinc-plated, blue-passivated, Cr6-free
- double ball bearing in the swivel head
- swivel head seal
- minimum swivel head play and smooth rolling characteristic and increased service life due to the special dynamic Blickle riveting process
Točak
- tyre: standard solid rubber, hardness 80 Shore A, colour black
- rim: pressed steel, zinc-plated, blue-passivated, Cr6-free
Dodatne karakteristike
- chemical resistance to many aggressive substances, except oils
- operating temperature: -25 °C to +80 °C, reduced load capacity over +60 °C
