Šifra 911316
L-GTH 200K-TTM13
Okretni točkić, Blickle, Made in Germany
Ukratko: L-GTH 200K-TTM13 je okretni točkić Blickle promjera 200 mm, širine 50 mm, nosivosti 400 kg pri 4 km/h (statički 1000 kg). Ukupna visina je 235 mm. Cijena je 749.20 KM s PDV-om.

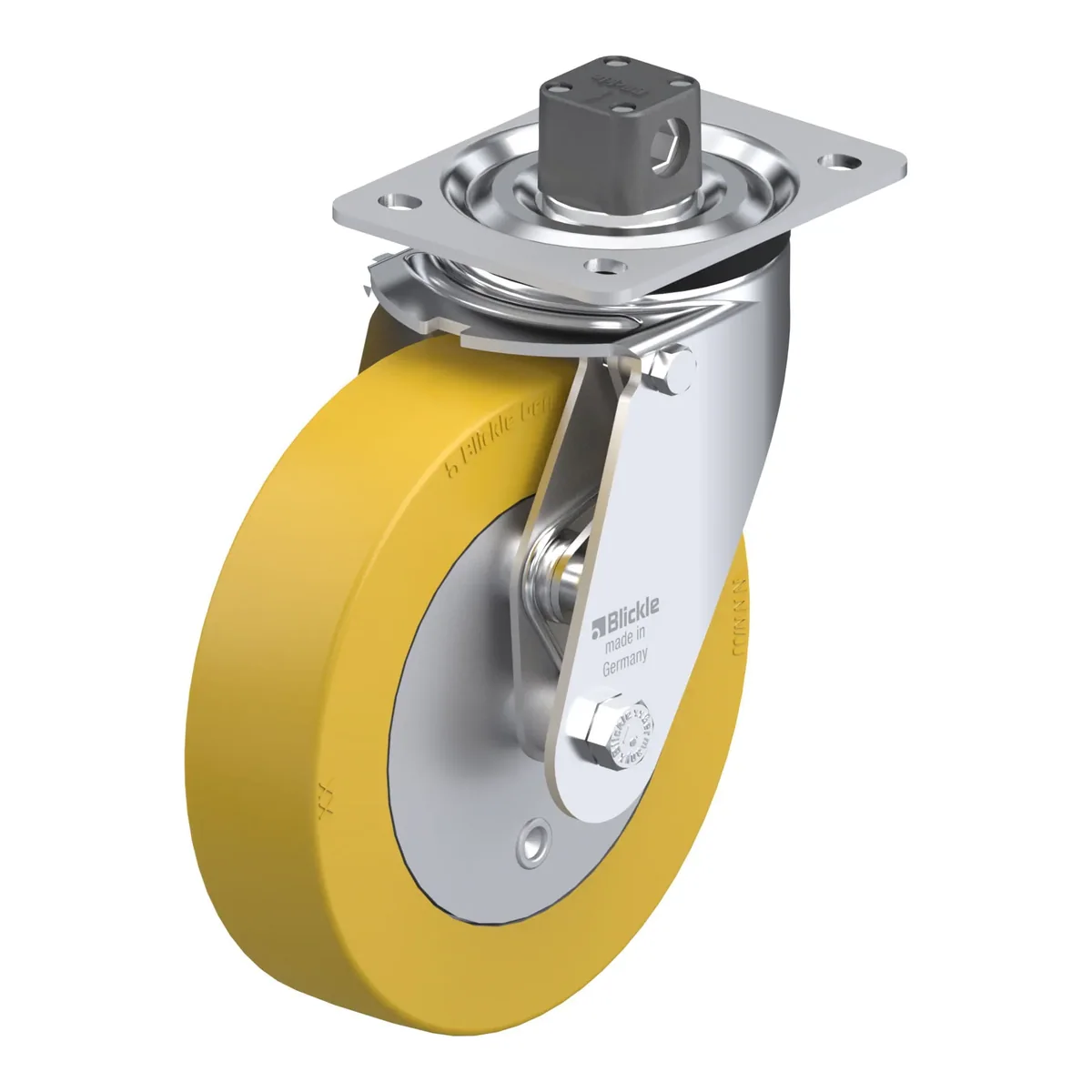

Pressed steel swivel castor, medium duty design, with top plate fitting, with dead man’s brake and swivel head brake, heavy duty wheel, with Blickle Extrathane® polyurethane tread, with cast iron wheel centre
749.20 KM
Cijena s PDV-om. Dostava širom Bosne i Hercegovine.
Veće količine: posebna ponuda na upit, +387 62 924 140, info@mhtrade.co.ba.
Tehnički podaci
| Šifra artikla | 911316 |
|---|---|
| EAN | 4047526347239 |
| Promjer točka | 200 mm |
| Širina točka | 50 mm |
| Ukupna visina | 235 mm |
| Nosivost pri 4 km/h | 400 kg |
| Statička nosivost | 1000 kg |
| Veličina ploče | 140 x 110 mm |
| Razmak rupa | 105.0 x 80.0 mm |
| Offset | 65 mm |
| Ne ostavlja tragove | da |
Točak
- tread: high-quality polyurethane elastomer Blickle Extrathane®, hardness 92 Shore A, colour yellow, non-marking, non-staining
- wheel centre: rugged grey cast iron, lacquered, colour silver
Dodatne karakteristike
- high chemical resistance to many aggressive substances
- operating temperature: -20 °C to +70 °C, temporarily up to +90 °C, reduced load capacity over +40 °C
