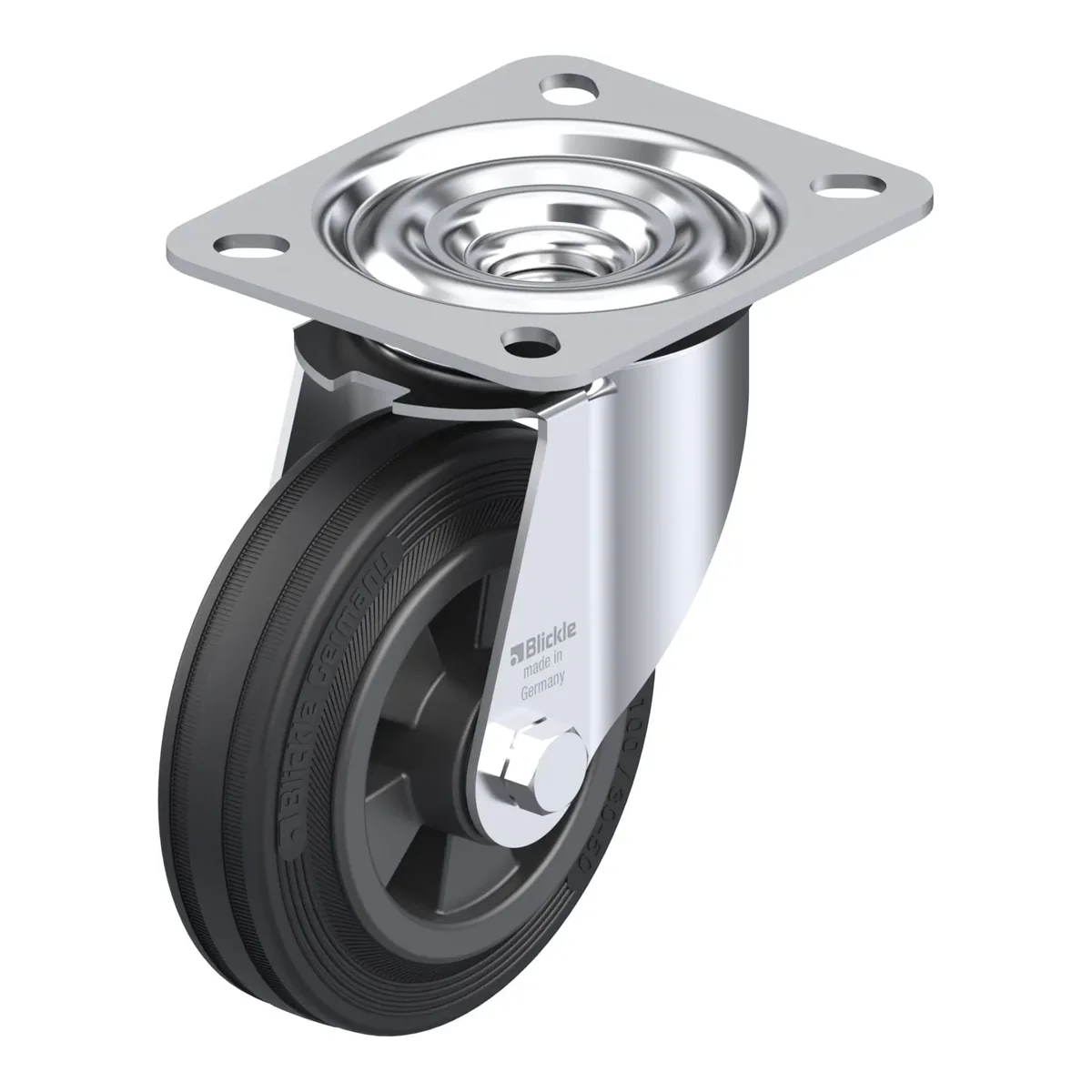

LE-VPP 100R – okretni točkić Blickle

Šifra 289165

LE-VPP 100R

Okretni točkić, Blickle, Made in Germany

Ukratko: LE-VPP 100R je okretni točkić Blickle promjera 100 mm, širine 30 mm, nosivosti 70 kg pri 4 km/h (statički 175 kg). Ukupna visina je 125 mm. Cijena je 31.05 KM s PDV-om.

Pressed steel swivel castor, with top plate fitting, wheel, with standard solid rubber tyre, with synthetic rim

31.05 KM

Cijena s PDV-om. Dostava širom Bosne i Hercegovine.

Veće količine: posebna ponuda na upit, +387 62 924 140, info@mhtrade.co.ba.

Tehnički podaci

Šifra artikla289165
EAN4047526289164
Promjer točka100 mm
Širina točka30 mm
Ukupna visina125 mm
Nosivost pri 4 km/h70 kg
Statička nosivost175 kg
Veličina ploče100 x 85 mm
Razmak rupa65.0 x 55.0 mm
Offset36 mm

Nosač

  • pressed steel, zinc-plated, blue-passivated, Cr6-free
  • double ball bearing in the swivel head
  • swivel head seal
  • minimum swivel head play and smooth rolling characteristic and increased service life due to the special dynamic Blickle riveting process

Točak

  • tyre: standard solid rubber, hardness 80 Shore A, colour black
  • rim: high-quality polypropylene, impact resistant, colour black

Dodatne karakteristike

  • high chemical resistance to many aggressive substances, except oils
  • operating temperature: -20 °C to +60 °C, reduced load capacity over +30 °C
