Šifra 754903

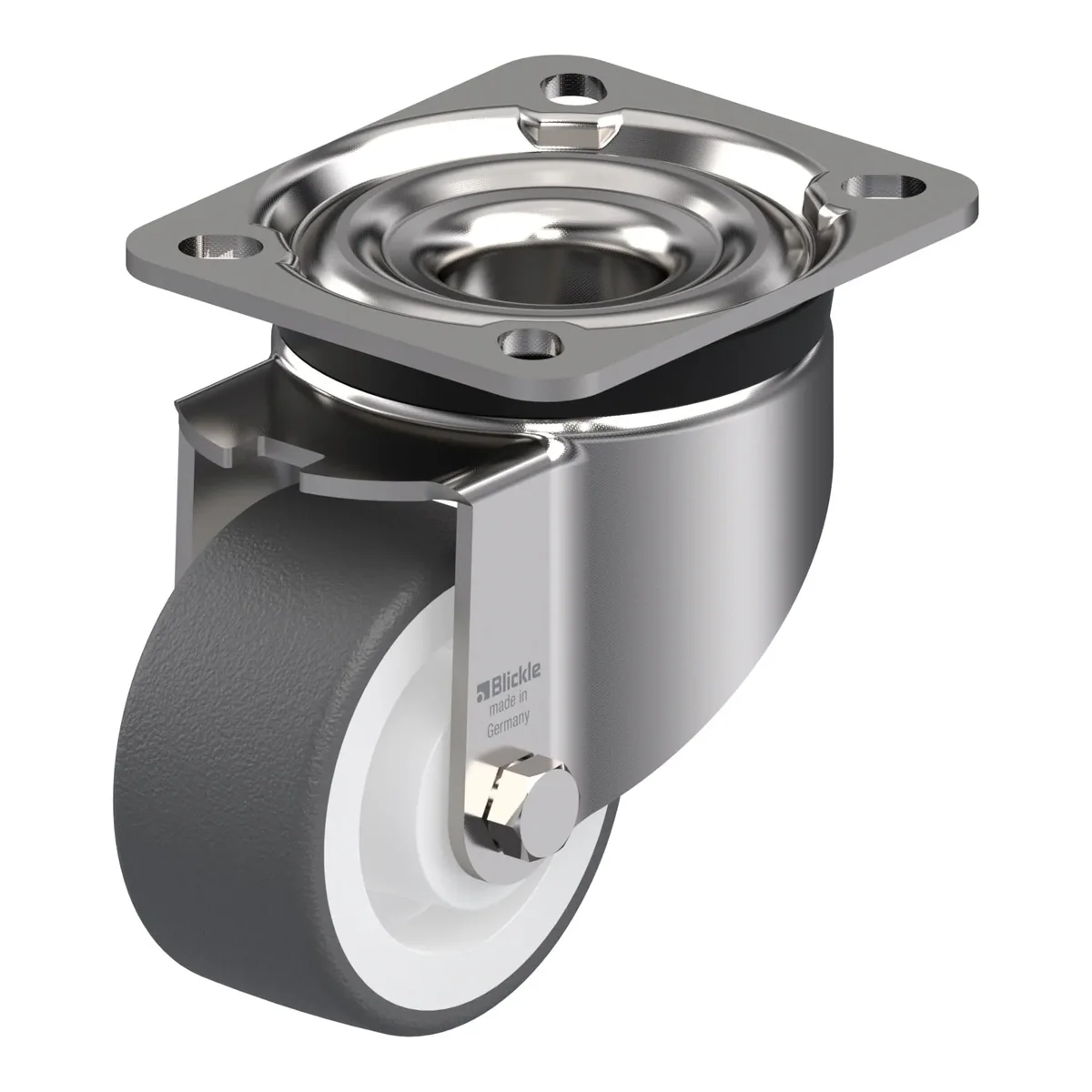

LKX-POTH 75XR
Okretni točkić, Blickle, Made in Germany
Ukratko: LKX-POTH 75XR je okretni točkić Blickle promjera 75 mm, širine 37 mm, nosivosti 200 kg pri 4 km/h (statički 500 kg). Ukupna visina je 108 mm. Cijena je 213.95 KM s PDV-om.
Stainless steel heavy duty swivel castor, with top plate fitting, wheel, with thermoplastic polyurethane tread, with heavy duty nylon wheel centre
213.95 KM
Cijena s PDV-om. Dostava širom Bosne i Hercegovine.
Veće količine: posebna ponuda na upit, +387 62 924 140, info@mhtrade.co.ba.
Tehnički podaci
| Šifra artikla | 754903 |
|---|---|
| EAN | 4047526084967 |
| Promjer točka | 75 mm |
| Širina točka | 37 mm |
| Ukupna visina | 108 mm |
| Nosivost pri 4 km/h | 200 kg |
| Statička nosivost | 500 kg |
| Veličina ploče | 100 x 85 mm |
| Razmak rupa | 65.0 x 55.0 mm |
| Offset | 40 mm |
| Ne ostavlja tragove | da |
| Otporan na koroziju | da |
Nosač
- high-quality chromium-nickel steel (1.4301/AISI 304), stainless steel, vibration-ground finishing
- all parts including axle material are corrosion-resistant
- double ball bearing in the swivel head
- strong central kingpin (from wheel Ø 125x50 mm)
- swivel head seal
- minimum swivel head play and smooth rolling characteristic and increased service life due to the special dynamic Blickle riveting process
Točak
- tread: high-quality thermoplastic polyurethane (TPU), hardness 94 Shore A, colour dark grey, non-marking, non-staining
- wheel centre: high-quality nylon 6, impact resistant, colour natural white
Dodatne karakteristike
- very high chemical resistance to many aggressive substances
- operating temperature: -25 °C to +70 °C, temporarily up to +90 °C, reduced load capacity over +35 °C
