Šifra 276881
LE-VPP 125R

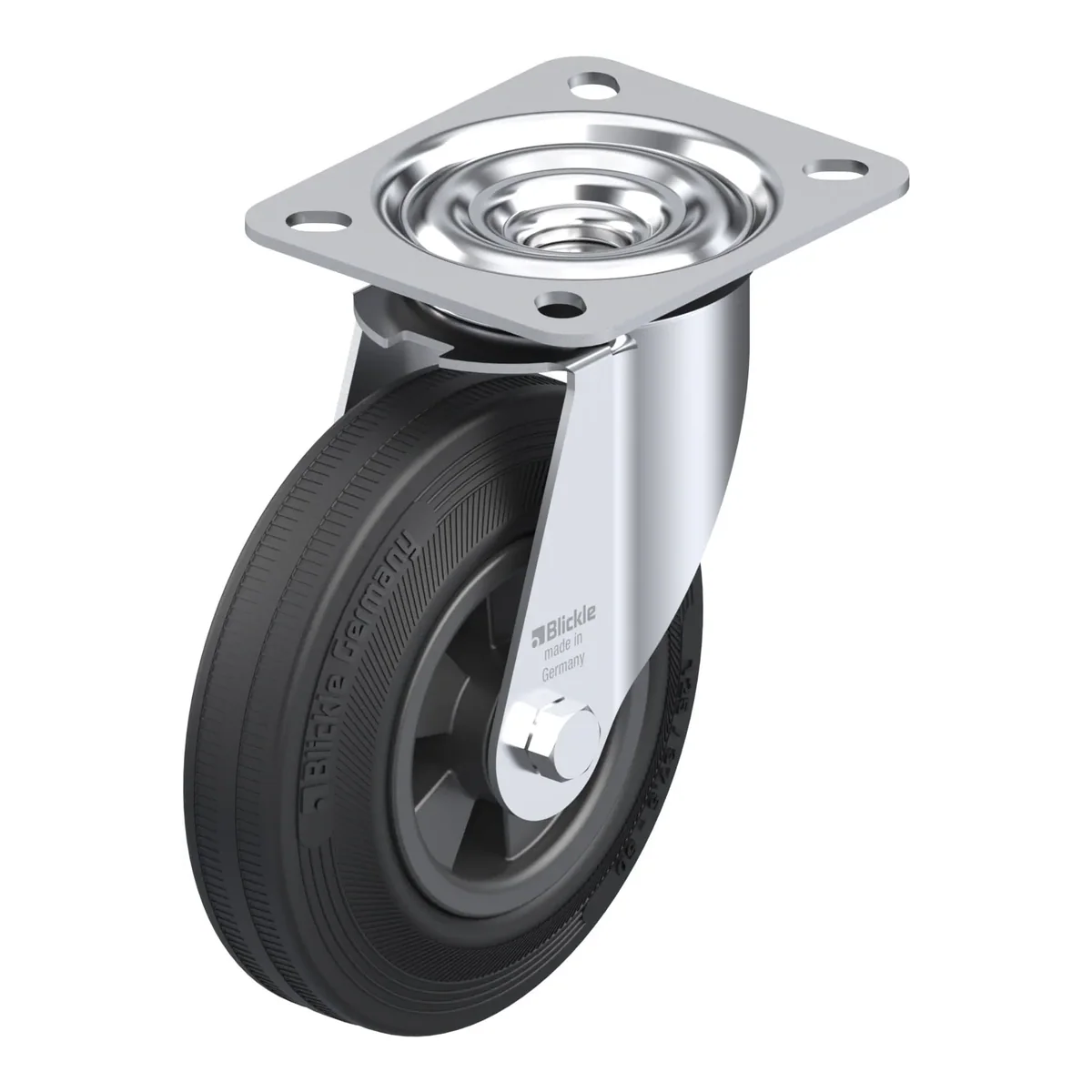

Okretni točkić, Blickle, Made in Germany
Ukratko: LE-VPP 125R je okretni točkić Blickle promjera 125 mm, širine 37.5 mm, nosivosti 100 kg pri 4 km/h (statički 250 kg). Ukupna visina je 150 mm. Cijena je 32.85 KM s PDV-om.
Pressed steel swivel castor, with top plate fitting, wheel, with standard solid rubber tyre, with synthetic rim
32.85 KM
Cijena s PDV-om. Dostava širom Bosne i Hercegovine.
Veće količine: posebna ponuda na upit, +387 62 924 140, info@mhtrade.co.ba.
Tehnički podaci
| Šifra artikla | 276881 |
|---|---|
| EAN | 4047526276881 |
| Promjer točka | 125 mm |
| Širina točka | 37.5 mm |
| Ukupna visina | 150 mm |
| Nosivost pri 4 km/h | 100 kg |
| Statička nosivost | 250 kg |
| Veličina ploče | 100 x 85 mm |
| Razmak rupa | 65.0 x 55.0 mm |
| Offset | 38 mm |
Nosač
- pressed steel, zinc-plated, blue-passivated, Cr6-free
- double ball bearing in the swivel head
- swivel head seal
- minimum swivel head play and smooth rolling characteristic and increased service life due to the special dynamic Blickle riveting process
Točak
- tyre: standard solid rubber, hardness 80 Shore A, colour black
- rim: high-quality polypropylene, impact resistant, colour black
Dodatne karakteristike
- high chemical resistance to many aggressive substances, except oils
- operating temperature: -20 °C to +60 °C, reduced load capacity over +30 °C
