Šifra 754932

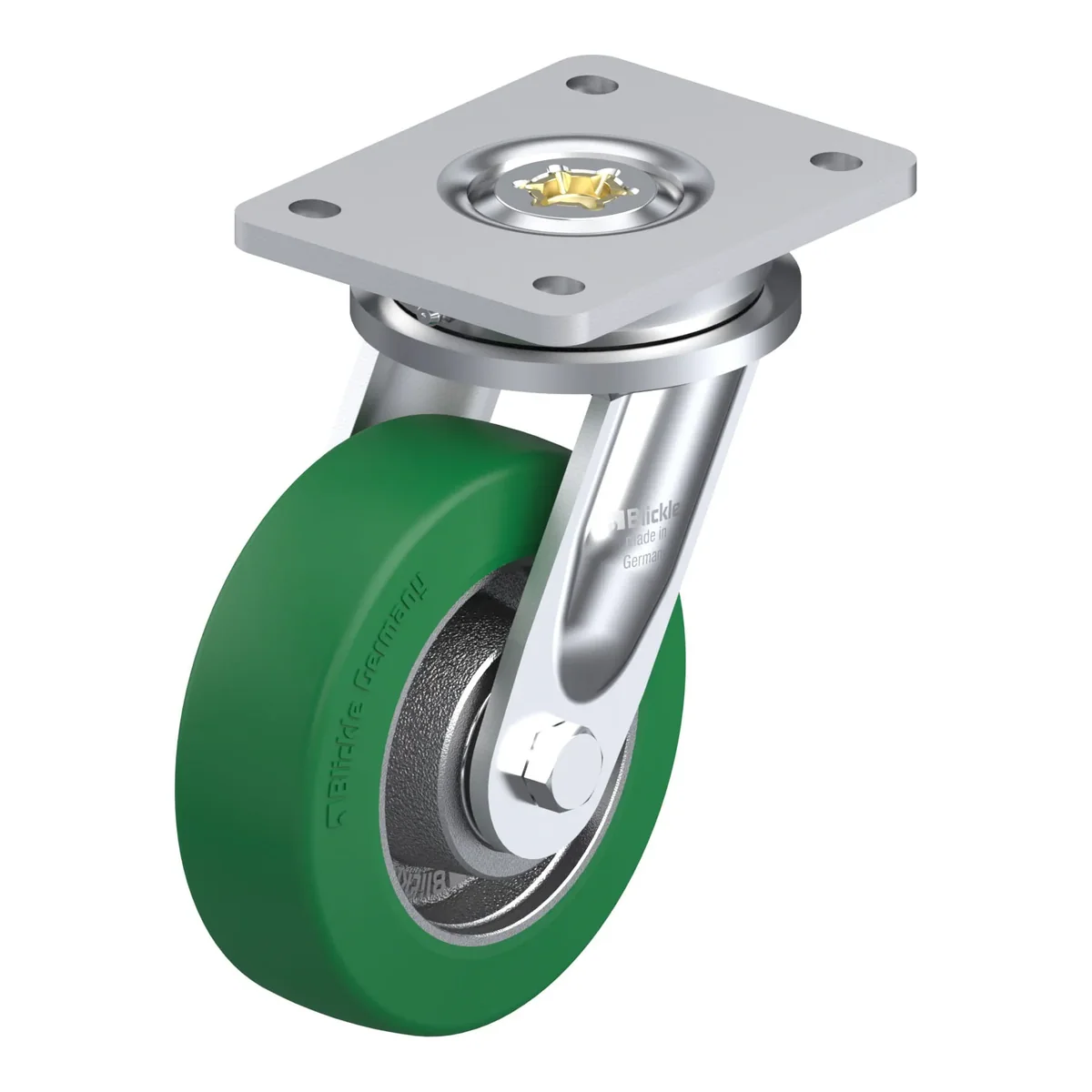

LO-GST 150K
Okretni točkić, Blickle, Made in Germany
Ukratko: LO-GST 150K je okretni točkić Blickle promjera 150 mm, širine 50 mm, nosivosti 570 kg pri 4 km/h (statički 1425 kg). Ukupna visina je 200 mm. Cijena je 325.13 KM s PDV-om.
Heavy duty welded steel swivel castor, heavy duty wheel, with Blickle Softhane® polyurethane tread, with cast iron wheel centre
325.13 KM
Cijena s PDV-om. Dostava širom Bosne i Hercegovine.
Veće količine: posebna ponuda na upit, +387 62 924 140, info@mhtrade.co.ba.
Tehnički podaci
| Šifra artikla | 754932 |
|---|---|
| EAN | 4047526077679 |
| Promjer točka | 150 mm |
| Širina točka | 50 mm |
| Ukupna visina | 200 mm |
| Nosivost pri 4 km/h | 570 kg |
| Statička nosivost | 1425 kg |
| Veličina ploče | 140 x 110 mm |
| Razmak rupa | 105.0 x 80.0 mm |
| Offset | 55 mm |
| Ne ostavlja tragove | da |
Nosač
- solid welded steel construction, zinc-plated, blue-passivated, Cr6-free
- double ball bearing in the swivel head
- four specially-shaped, hardened bearing seatsfor additional strength
- bolted and secured welded central kingpin, extremely strong
- swivel head seal with labyrinth design
- grease nipple
Točak
- tread: high-quality polyurethane elastomer Blickle Softhane®, hardness 75 Shore A, colour green, non-marking, non-staining
- wheel centre: rugged grey cast iron, with grease nipple from wheel Ø 160 mm, lacquered, colour silver
Dodatne karakteristike
- high chemical resistance to many aggressive substances
- operating temperature: -20 °C to +70 °C, temporarily up to +90 °C, reduced load capacity over +40 °C
