MHC Tradetočkići.ba

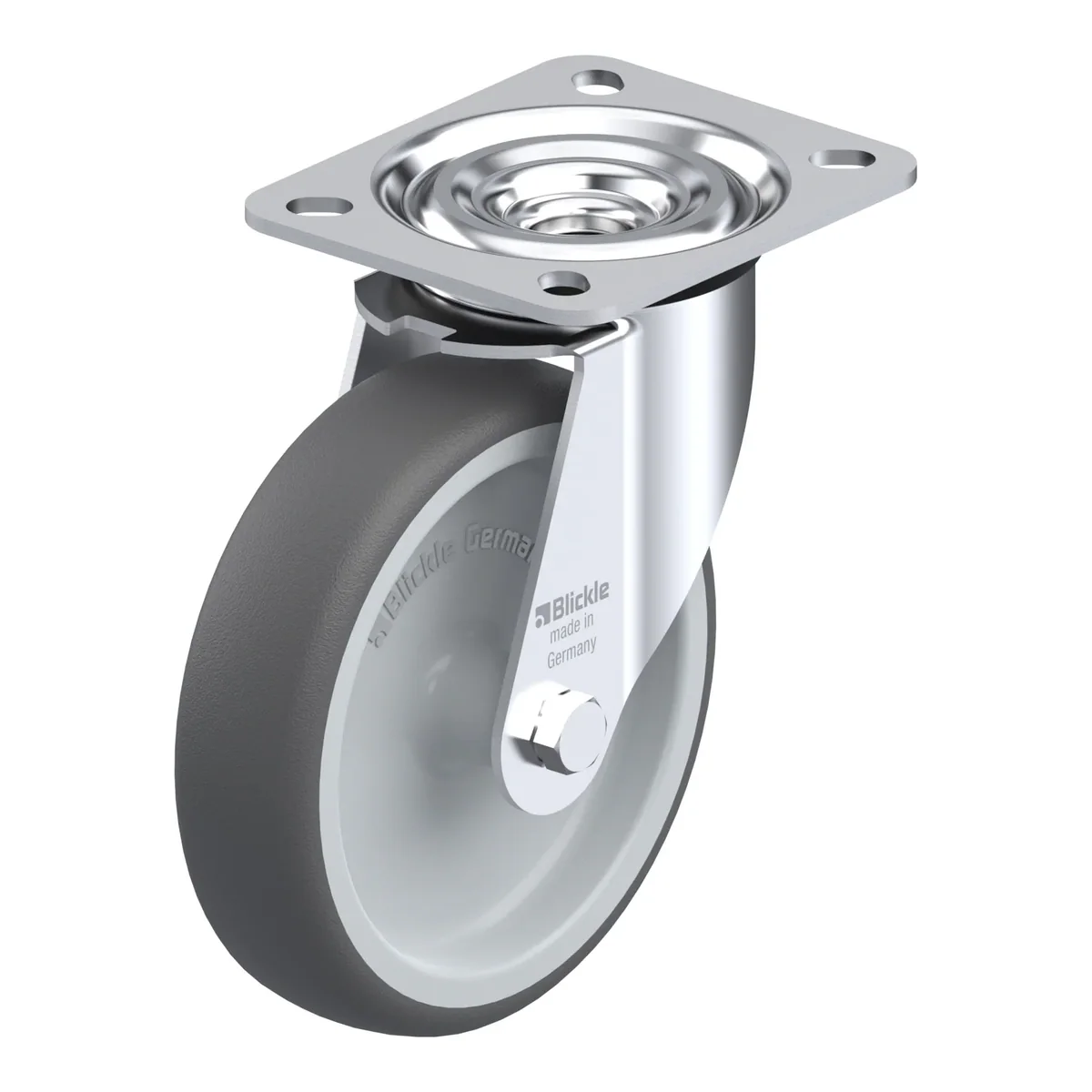

L-PATH 125G – okretni točkić Blickle

Šifra 847016

L-PATH 125G

Okretni točkić, Blickle, Made in Germany

Ukratko: L-PATH 125G je okretni točkić Blickle promjera 125 mm, širine 32 mm, nosivosti 250 kg pri 4 km/h (statički 625 kg). Ukupna visina je 150 mm. Cijena je 43.66 KM s PDV-om.

Pressed steel swivel castor, medium duty design, with top plate fitting, wheel, with thermoplastic polyurethane tread, with nylon wheel centre

43.66 KM

Cijena s PDV-om. Dostava širom Bosne i Hercegovine.

Veće količine: posebna ponuda na upit, +387 62 924 140, info@mhtrade.co.ba.

Tehnički podaci

Šifra artikla847016
EAN4047526126612
Promjer točka125 mm
Širina točka32 mm
Ukupna visina150 mm
Nosivost pri 4 km/h250 kg
Statička nosivost625 kg
Veličina ploče100 x 85 mm
Razmak rupa65.0 x 55.0 mm
Offset38 mm
Ne ostavlja tragoveda

Nosač

  • pressed steel, zinc-plated, blue-passivated, Cr6-free
  • double ball bearing in the swivel head
  • strong central kingpin (from wheel Ø 150 mm)
  • swivel head seal
  • minimum swivel head play and smooth rolling characteristic and increased service life due to the special dynamic Blickle riveting process

Točak

  • tread: high-quality thermoplastic polyurethane (TPU), hardness 94 Shore A, colour dark grey, non-marking, non-staining
  • wheel centre: high-quality nylon 6, impact resistant, colour silver grey

Dodatne karakteristike

  • very high chemical resistance to many aggressive substances
  • operating temperature: -25 °C to +70 °C, temporarily up to +90 °C, reduced load capacity over +35 °C
