Šifra 49411
BO-G 250G

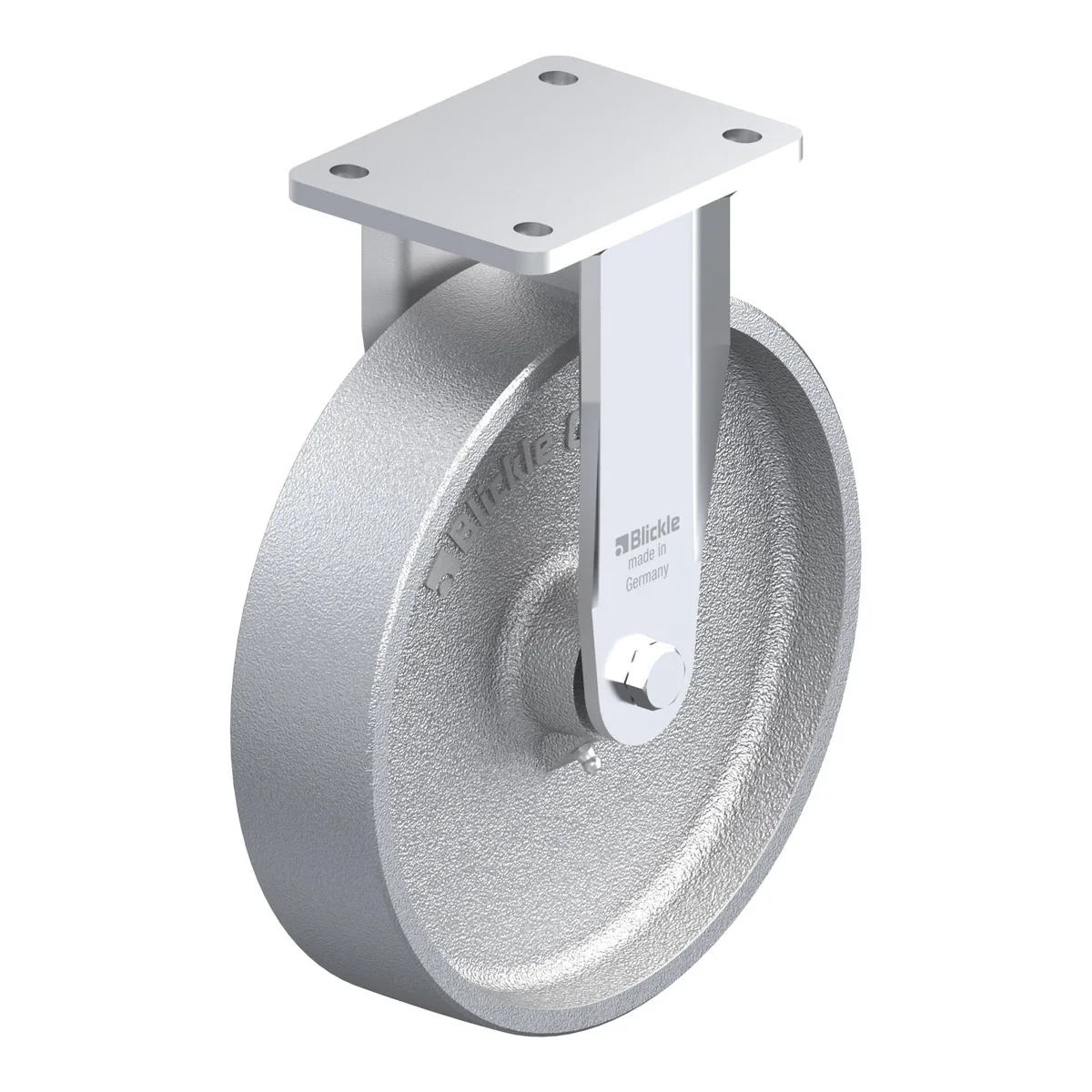

Fiksni točkić, Blickle, Made in Germany
Ukratko: BO-G 250G je fiksni točkić Blickle promjera 250 mm, širine 60 mm, nosivosti 1200 kg pri 4 km/h (statički 3000 kg). Ukupna visina je 295 mm. Radi na temperaturi od -25 °C do 270 °C. Cijena je 289.11 KM s PDV-om.
Heavy duty welded steel fixed castor, cast iron wheel
289.11 KM
Cijena s PDV-om. Dostava širom Bosne i Hercegovine.
Veće količine: posebna ponuda na upit, +387 62 924 140, info@mhtrade.co.ba.
Tehnički podaci
| Šifra artikla | 49411 |
|---|---|
| EAN | 4047526049416 |
| Promjer točka | 250 mm |
| Širina točka | 60 mm |
| Ukupna visina | 295 mm |
| Nosivost pri 4 km/h | 1200 kg |
| Statička nosivost | 3000 kg |
| Veličina ploče | 140 x 110 mm |
| Razmak rupa | 105.0 x 80.0 mm |
| Tvrdoća gazišta | 180 Shore A |
| Radna temperatura | -25 °C do 270 °C |
| Težina | 10.3 kg |
| ESD zaštita | da |
Nosač
- solid welded steel construction, zinc-plated, blue-passivated, Cr6-free
Točak
- rugged grey cast iron, hardness 180–220 HB, grease nipple, lacquered, colour silver
Dodatne karakteristike
- chemical resistance to many aggressive substances
- consider the surface pressure on sensitive floors due to high point loads
- provide adequate lubrication on a regular basis for plain bore version
- to be lubricated according to the application temperature
