MHC Tradetočkići.ba

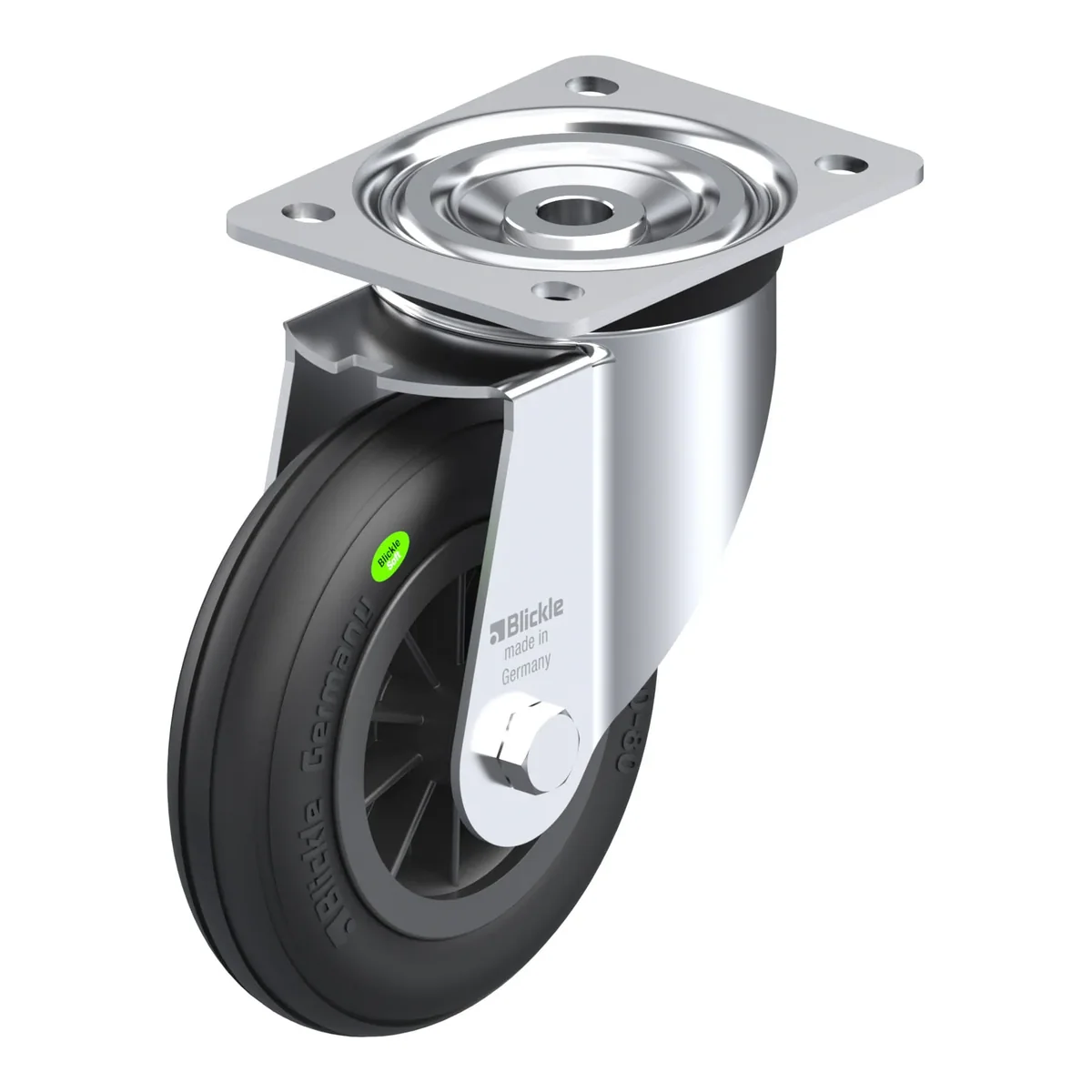

L-VWPP 160G – okretni točkić Blickle

Šifra 578187

L-VWPP 160G

Okretni točkić, Blickle, Made in Germany

Ukratko: L-VWPP 160G je okretni točkić Blickle promjera 160 mm, širine 40 mm, nosivosti 70 kg pri 4 km/h (statički 175 kg). Ukupna visina je 195 mm. Cijena je 84.23 KM s PDV-om.

Pressed steel swivel castor, medium duty design, with top plate fitting, wheel, with 'Blickle Soft' soft rubber tyre, with synthetic rim

84.23 KM

Cijena s PDV-om. Dostava širom Bosne i Hercegovine.

Veće količine: posebna ponuda na upit, +387 62 924 140, info@mhtrade.co.ba.

Tehnički podaci

Šifra artikla578187
EAN4047526578183
Promjer točka160 mm
Širina točka40 mm
Ukupna visina195 mm
Nosivost pri 4 km/h70 kg
Statička nosivost175 kg
Veličina ploče140 x 110 mm
Razmak rupa105.0 x 80.0 mm
Offset60 mm

Nosač

  • pressed steel, zinc-plated, blue-passivated, Cr6-free
  • double ball bearing in the swivel head
  • strong central kingpin (from wheel Ø 150 mm)
  • swivel head seal
  • minimum swivel head play and smooth rolling characteristic and increased service life due to the special dynamic Blickle riveting process

Točak

  • tyre: soft rubber "Blickle Soft", hardness 50 Shore A, colour black (wheel Ø 260 mm with additional hard rubber core)
  • rim: high-quality polypropylene, impact resistant, colour black

Dodatne karakteristike

  • high chemical resistance to many aggressive substances, except oils
  • operating temperature: -20 °C to +60 °C, reduced load capacity over +30 °C
  • wheel Ø 260 mm with additional hard rubber core
  • puncture-proof alternatives for pneumatic tyres
