Šifra 946606

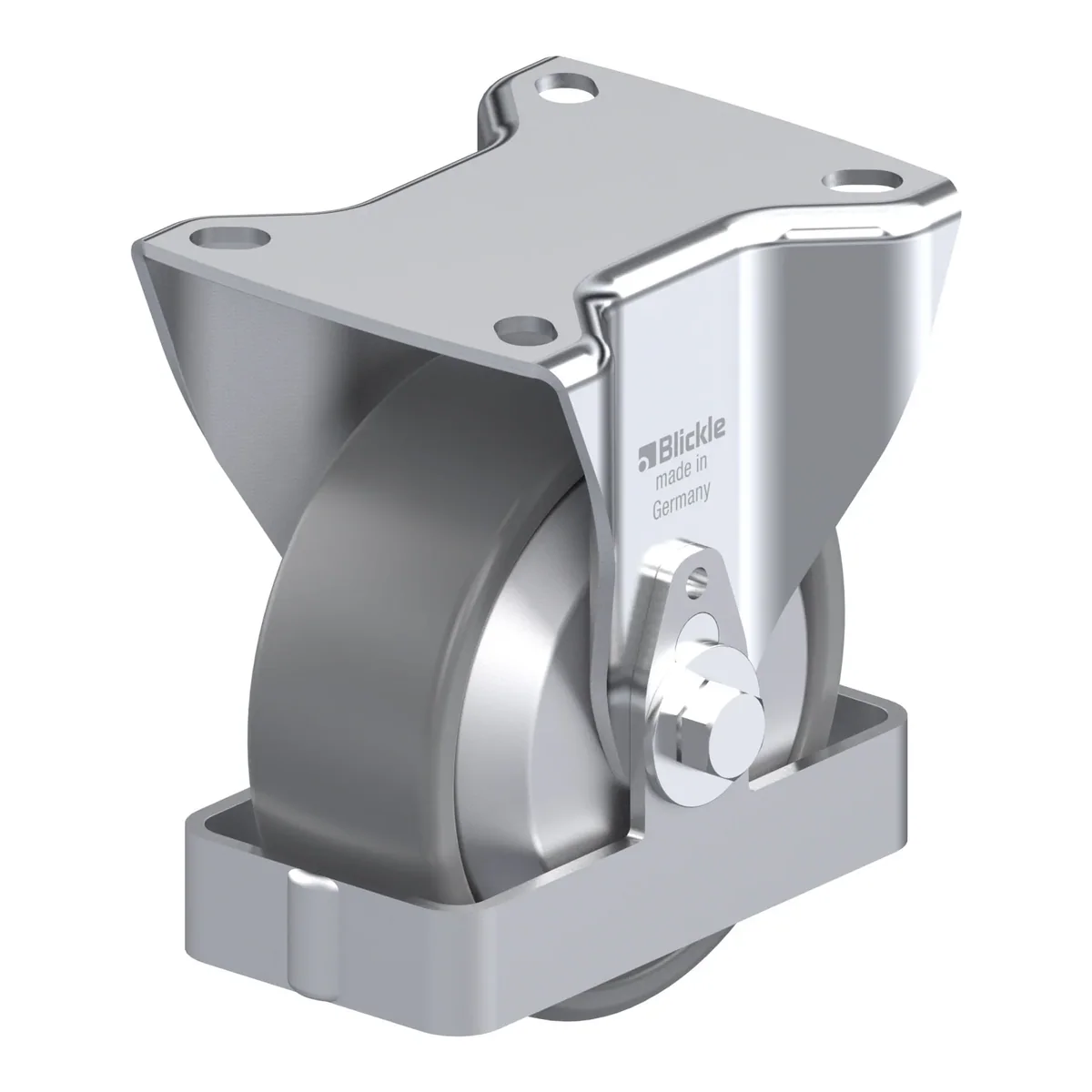

B-PO 100KA-ELS-FA-FS
Fiksni točkić, Blickle, Made in Germany
Ukratko: B-PO 100KA-ELS-FA-FS je fiksni točkić Blickle promjera 100 mm, širine 37 mm, nosivosti 250 kg pri 4 km/h (statički 625 kg). Ukupna visina je 125 mm. Radi na temperaturi od -20 °C do 80 °C. Cijena je 121.77 KM s PDV-om.
Pressed steel fixed castor, medium duty design, with top plate fitting, steel foot guard, nylon wheel, with synthetic thread guard, small, with steel thread guard, electrically conductive, non-marking
121.77 KM
Cijena s PDV-om. Dostava širom Bosne i Hercegovine.
Veće količine: posebna ponuda na upit, +387 62 924 140, info@mhtrade.co.ba.
Tehnički podaci
| Šifra artikla | 946606 |
|---|---|
| EAN | 4047526370046 |
| Promjer točka | 100 mm |
| Širina točka | 37 mm |
| Ukupna visina | 125 mm |
| Nosivost pri 4 km/h | 250 kg |
| Statička nosivost | 625 kg |
| Veličina ploče | 100 x 85 mm |
| Razmak rupa | 65.0 x 55.0 mm |
| Tvrdoća gazišta | 70 Shore A |
| Radna temperatura | -20 °C do 80 °C |
| Težina | 0.9 kg |
| Ne ostavlja tragove | da |
| ESD zaštita | da |
Nosač
- pressed steel, zinc-plated, blue-passivated, Cr6-free
Točak
- high-quality nylon 6, impact resistant, hardness 70 Shore D, colour grey, non-marking
Dodatne karakteristike
- with synthetic thread guard, small
- high chemical resistance to many aggressive substances
- operating temperature: -20 °C to +80 °C, reduced load capacity over +35 °C
- electrical conductivity (ohmic resistance) ≤ 104Ω
