Šifra 7724
B-G 80G

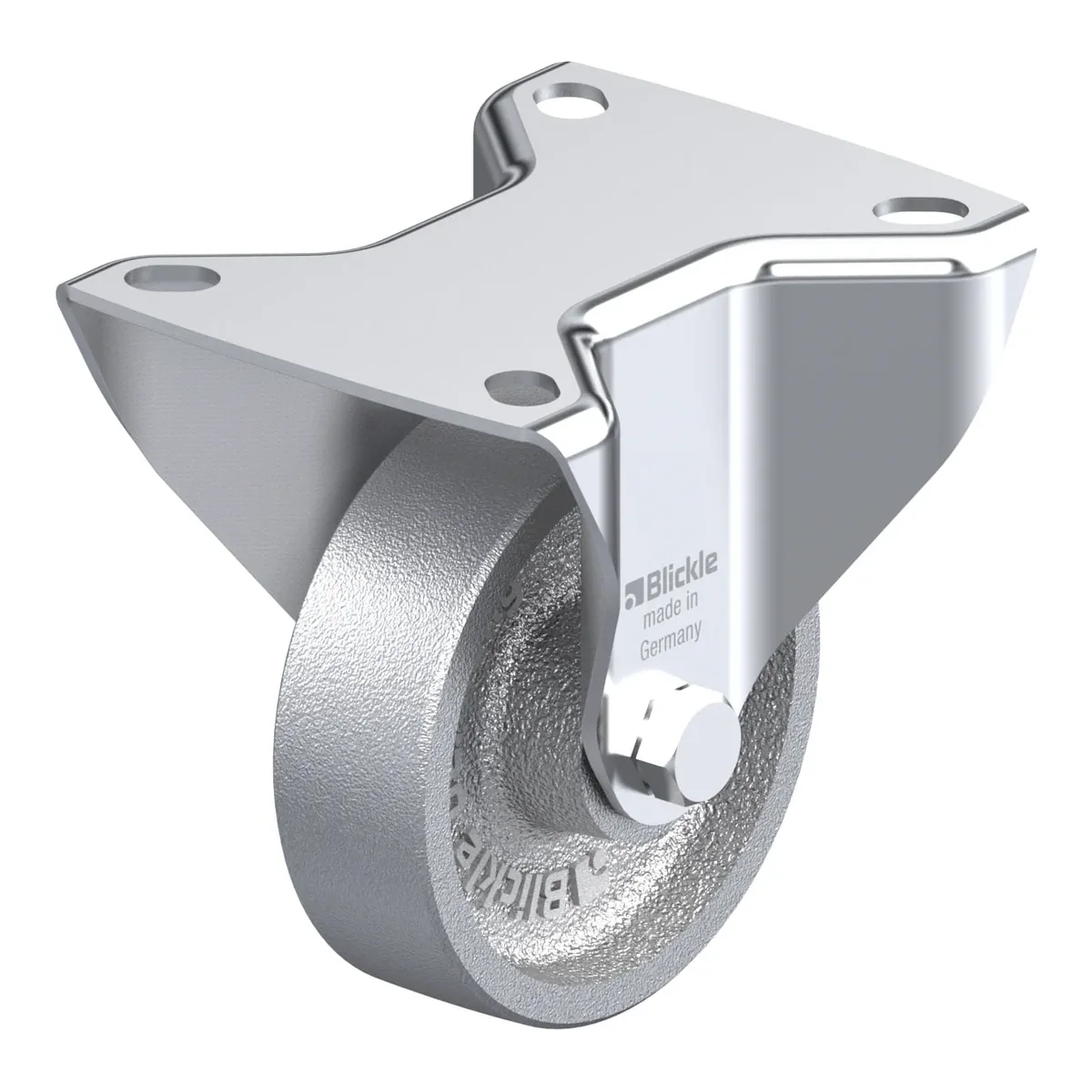

Fiksni točkić, Blickle, Made in Germany
Ukratko: B-G 80G je fiksni točkić Blickle promjera 80 mm, širine 25 mm, nosivosti 200 kg pri 4 km/h (statički 500 kg). Ukupna visina je 102 mm. Cijena je 35.42 KM s PDV-om.
Pressed steel fixed castor, medium duty design, with top plate fitting, cast iron wheel
35.42 KM
Cijena s PDV-om. Dostava širom Bosne i Hercegovine.
Veće količine: posebna ponuda na upit, +387 62 924 140, info@mhtrade.co.ba.
Tehnički podaci
| Šifra artikla | 7724 |
|---|---|
| EAN | 4047526007720 |
| Promjer točka | 80 mm |
| Širina točka | 25 mm |
| Ukupna visina | 102 mm |
| Nosivost pri 4 km/h | 200 kg |
| Statička nosivost | 500 kg |
| Veličina ploče | 100 x 85 mm |
| Razmak rupa | 65.0 x 55.0 mm |
| ESD zaštita | da |
Nosač
- pressed steel, zinc-plated, blue-passivated, Cr6-free
Točak
- rugged grey cast iron, hardness 180–220 HB, grease nipple, lacquered, colour silver
Dodatne karakteristike
- chemical resistance to many aggressive substances
- consider the surface pressure on sensitive floors due to high point loads
- provide adequate lubrication on a regular basis for plain bore version
- to be lubricated according to the application temperature
