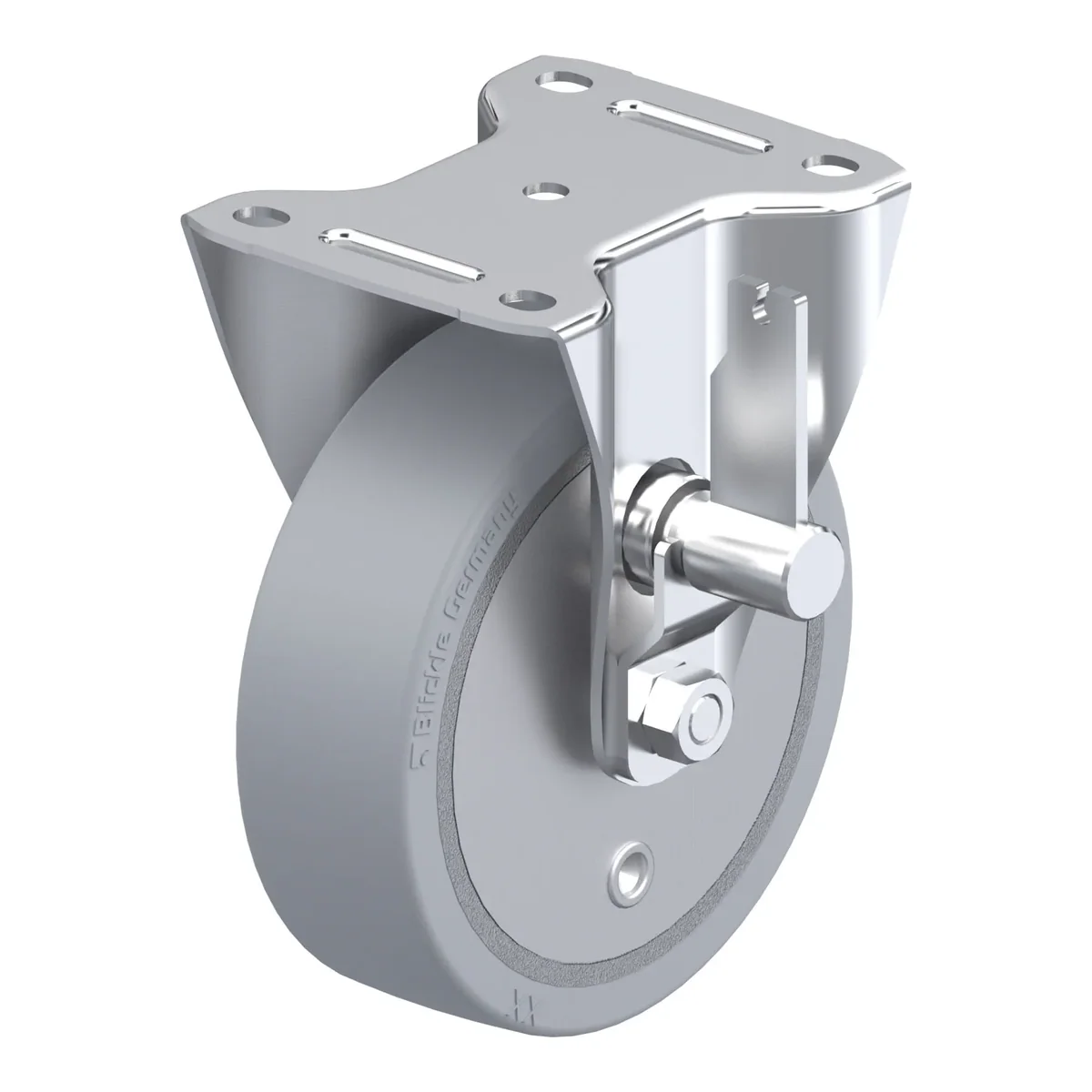

B-GEV 160K-TB-SG – fiksni točkić Blickle

Šifra 842745

B-GEV 160K-TB-SG

Fiksni točkić, Blickle, Made in Germany

Ukratko: B-GEV 160K-TB-SG je fiksni točkić Blickle promjera 160 mm, širine 50 mm, nosivosti 450 kg pri 4 km/h (statički 1125 kg). Ukupna visina je 195 mm. Cijena je 394.41 KM s PDV-om.

Pressed steel fixed castor, medium duty design, with top plate fitting, with drum brake, heavy duty wheel, with elastic solid rubber tyre, with cast iron wheel centre, non-marking, grey

394.41 KM

Cijena s PDV-om. Dostava širom Bosne i Hercegovine.

Veće količine: posebna ponuda na upit, +387 62 924 140, info@mhtrade.co.ba.

Tehnički podaci

Šifra artikla842745
EAN4047526122966
Promjer točka160 mm
Širina točka50 mm
Ukupna visina195 mm
Nosivost pri 4 km/h450 kg
Statička nosivost1125 kg
Veličina ploče140 x 110 mm
Razmak rupa105.0 x 80.0 mm
Ne ostavlja tragoveda

Nosač

  • pressed steel, zinc-plated, blue-passivated, Cr6-free

Točak

  • tyre: high-quality elastic solid rubber in smooth rolling quality, hardness 65 Shore A, colour grey
  • wheel centre: rugged grey cast iron, lacquered, colour silver

Dodatne karakteristike

  • chemical resistance to many aggressive substances, except oils
  • operating temperature: -20 °C to +80 °C, temporarily up to +100 °C, reduced load capacity over +60 °C
  • wheel centre is approximately 4 mm wider than the specified wheel width
