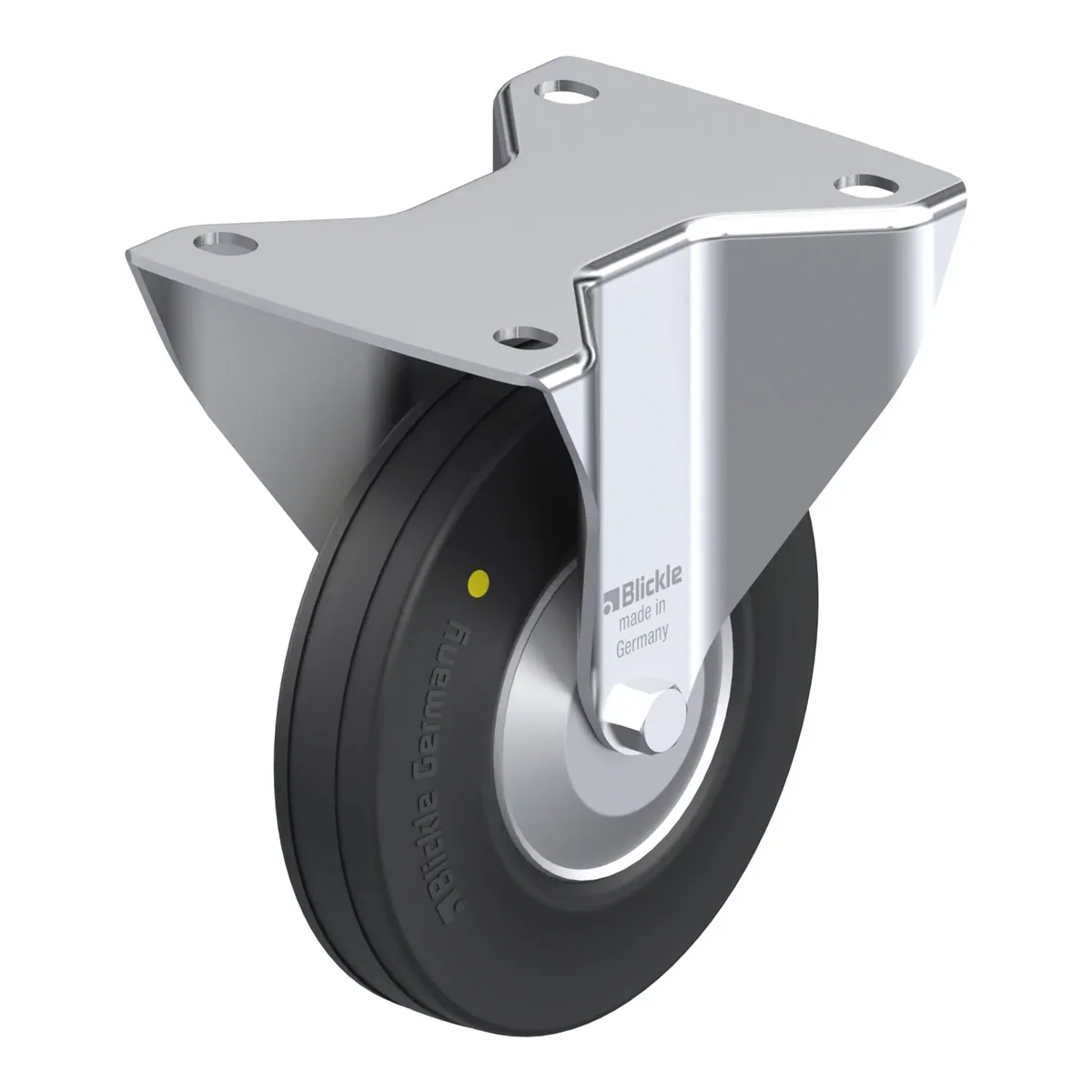

B-V 140R-EL-FA – fiksni točkić Blickle

Šifra 434290

B-V 140R-EL-FA

Fiksni točkić, Blickle, Made in Germany

Ukratko: B-V 140R-EL-FA je fiksni točkić Blickle promjera 140 mm, širine 37.5 mm, nosivosti 115 kg pri 4 km/h (statički 287.5 kg). Ukupna visina je 170 mm. Cijena je 84.15 KM s PDV-om.

Pressed steel fixed castor, medium duty design, with top plate fitting, wheel, with standard solid rubber tyre, with pressed steel rim, reinforced design, with steel thread guard, electrically conductive

84.15 KM

Cijena s PDV-om. Dostava širom Bosne i Hercegovine.

Veće količine: posebna ponuda na upit, +387 62 924 140, info@mhtrade.co.ba.

Tehnički podaci

Šifra artikla434290
EAN4047526108021
Promjer točka140 mm
Širina točka37.5 mm
Ukupna visina170 mm
Nosivost pri 4 km/h115 kg
Statička nosivost287.5 kg
Veličina ploče140 x 110 mm
Razmak rupa105.0 x 80.0 mm
ESD zaštitada

Nosač

  • pressed steel, zinc-plated, blue-passivated, Cr6-free

Točak

  • tyre: standard solid rubber, hardness 80 Shore A, colour black
  • rim: pressed steel, strong rim structure with tubular steel hub, bolted or pressed, zinc-plated, blue-passivated, Cr6-free

Dodatne karakteristike

  • chemical resistance to many aggressive substances, except oils
  • operating temperature: -25 °C to +80 °C, reduced load capacity over +60 °C
  • electrical conductivity (ohmic resistance) ≤ 104Ω
