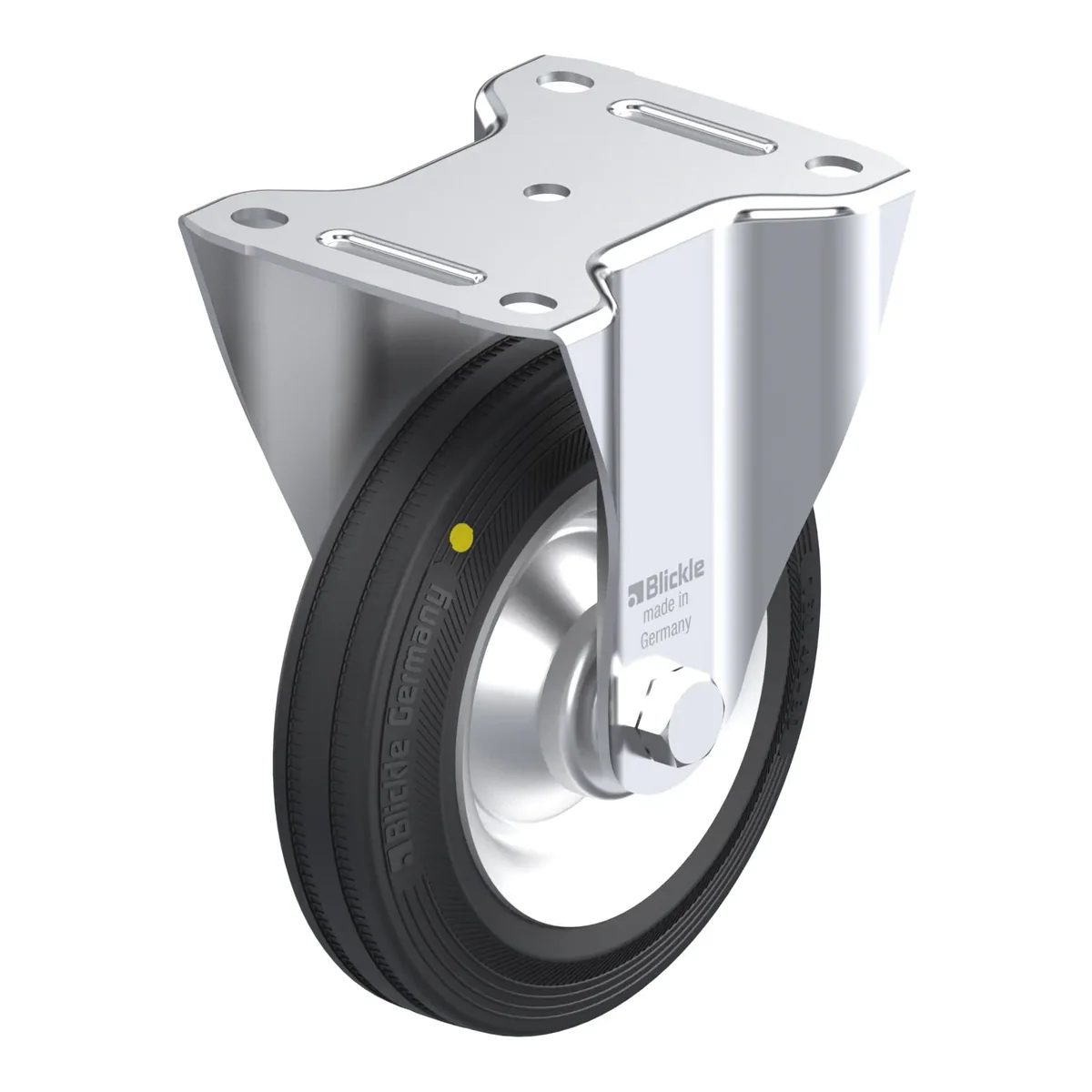

B-V 162R-EL – fiksni točkić Blickle

Šifra 67801

B-V 162R-EL

Fiksni točkić, Blickle, Made in Germany

Ukratko: B-V 162R-EL je fiksni točkić Blickle promjera 160 mm, širine 40 mm, nosivosti 135 kg pri 4 km/h (statički 337.5 kg). Ukupna visina je 195 mm. Cijena je 86.37 KM s PDV-om.

Pressed steel fixed castor, medium duty design, with top plate fitting, wheel, with standard solid rubber tyre, with pressed steel rim, reinforced design, electrically conductive

86.37 KM

Cijena s PDV-om. Dostava širom Bosne i Hercegovine.

Veće količine: posebna ponuda na upit, +387 62 924 140, info@mhtrade.co.ba.

Tehnički podaci

Šifra artikla67801
EAN4047526067809
Promjer točka160 mm
Širina točka40 mm
Ukupna visina195 mm
Nosivost pri 4 km/h135 kg
Statička nosivost337.5 kg
Veličina ploče140 x 110 mm
Razmak rupa105.0 x 80.0 mm
ESD zaštitada

Nosač

  • pressed steel, zinc-plated, blue-passivated, Cr6-free

Točak

  • tyre: standard solid rubber, hardness 80 Shore A, colour black
  • rim: pressed steel, strong rim structure with tubular steel hub, bolted or pressed, zinc-plated, blue-passivated, Cr6-free

Dodatne karakteristike

  • chemical resistance to many aggressive substances, except oils
  • operating temperature: -25 °C to +80 °C, reduced load capacity over +60 °C
  • electrical conductivity (ohmic resistance) ≤ 104Ω
