Šifra 842751

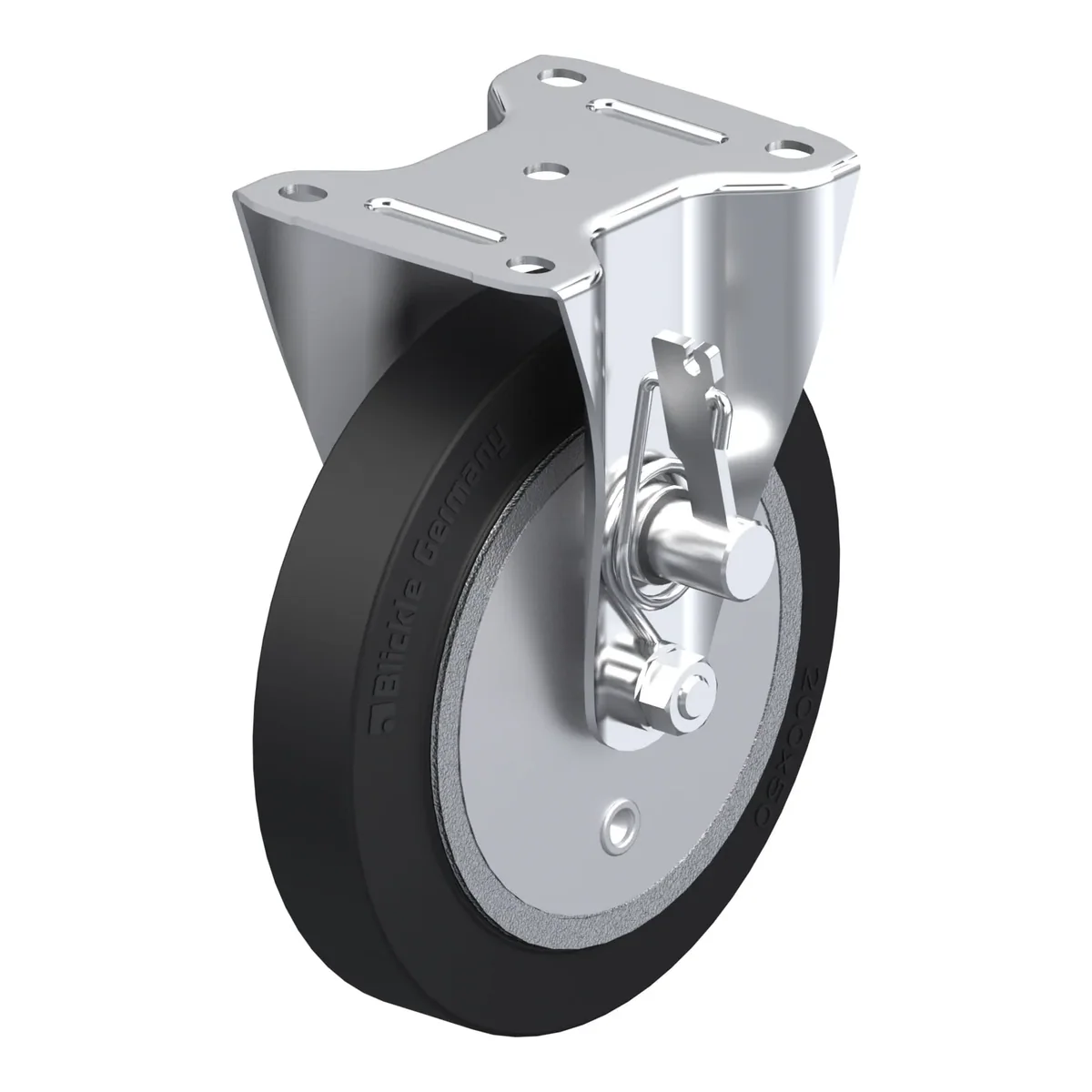

B-GEV 200K-TML
Fiksni točkić, Blickle, Made in Germany
Ukratko: B-GEV 200K-TML je fiksni točkić Blickle promjera 200 mm, širine 50 mm, nosivosti 600 kg pri 4 km/h (statički 1500 kg). Ukupna visina je 235 mm. Cijena je 423.19 KM s PDV-om.
Pressed steel fixed castor, medium duty design, with top plate fitting, with dead man’s brake, heavy duty wheel, with elastic solid rubber tyre, with cast iron wheel centre
423.19 KM
Cijena s PDV-om. Dostava širom Bosne i Hercegovine.
Veće količine: posebna ponuda na upit, +387 62 924 140, info@mhtrade.co.ba.
Tehnički podaci
| Šifra artikla | 842751 |
|---|---|
| EAN | 4047526123024 |
| Promjer točka | 200 mm |
| Širina točka | 50 mm |
| Ukupna visina | 235 mm |
| Nosivost pri 4 km/h | 600 kg |
| Statička nosivost | 1500 kg |
| Veličina ploče | 140 x 110 mm |
| Razmak rupa | 105.0 x 80.0 mm |
Nosač
- pressed steel, zinc-plated, blue-passivated, Cr6-free
Točak
- tyre: high-quality elastic solid rubber in smooth rolling quality, hardness 65 Shore A, colour black
- wheel centre: rugged grey cast iron, lacquered, colour silver
Dodatne karakteristike
- chemical resistance to many aggressive substances, except oils
- operating temperature: -20 °C to +80 °C, temporarily up to +100 °C, reduced load capacity over +60 °C
- wheel centre is approximately 4 mm wider than the specified wheel width
