Šifra 906525

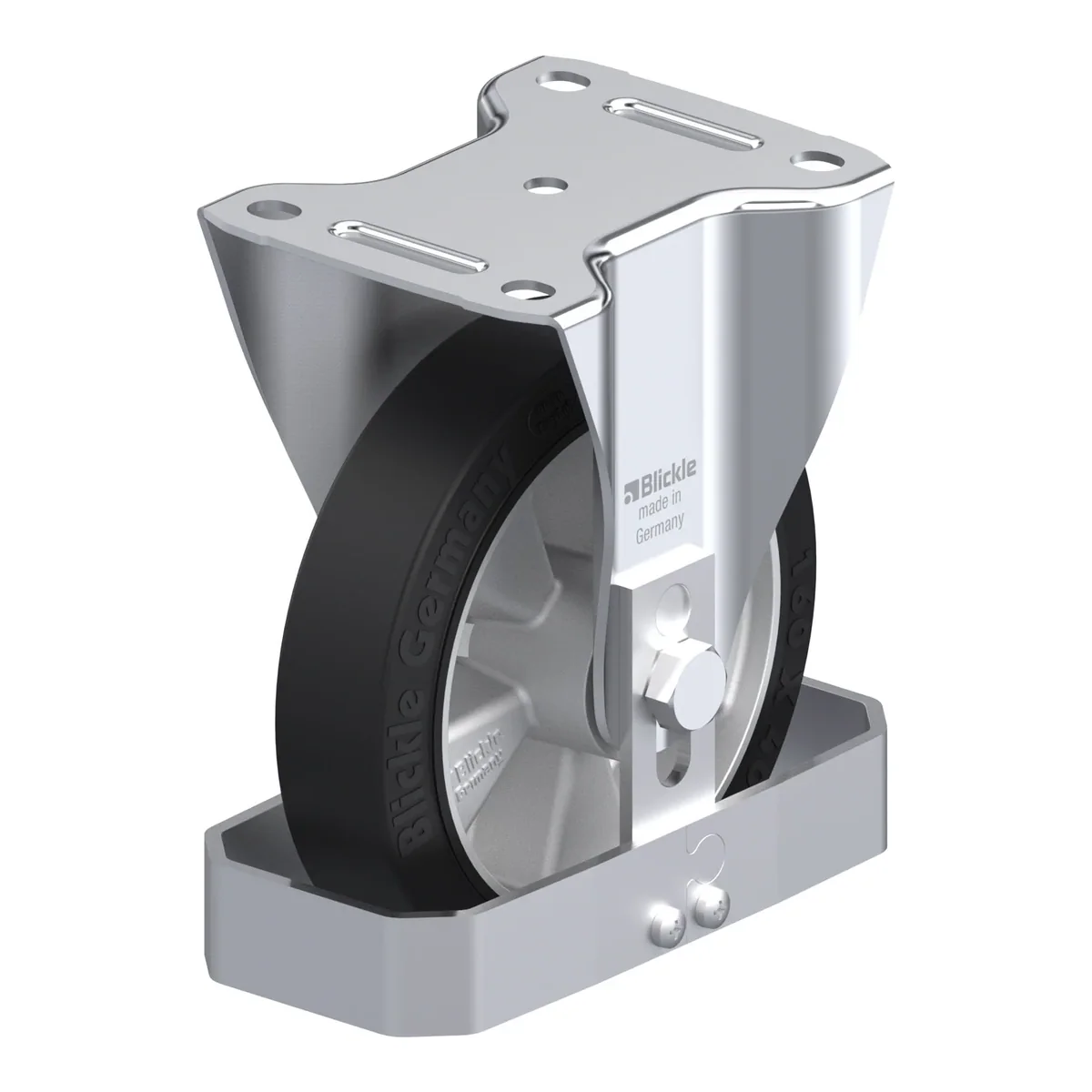

B-ALEV 161K-FS
Fiksni točkić, Blickle, Made in Germany
Ukratko: B-ALEV 161K-FS je fiksni točkić Blickle promjera 160 mm, širine 40 mm, nosivosti 300 kg pri 4 km/h (statički 750 kg). Ukupna visina je 195 mm. Cijena je 148.00 KM s PDV-om.
Pressed steel fixed castor, medium duty design, with top plate fitting, steel foot guard, heavy duty wheel, with 'Blickle EasyRoll' elastic solid rubber tyres, with aluminium wheel centre
148.00 KM
Cijena s PDV-om. Dostava širom Bosne i Hercegovine.
Veće količine: posebna ponuda na upit, +387 62 924 140, info@mhtrade.co.ba.
Tehnički podaci
| Šifra artikla | 906525 |
|---|---|
| EAN | 4047526323172 |
| Promjer točka | 160 mm |
| Širina točka | 40 mm |
| Ukupna visina | 195 mm |
| Nosivost pri 4 km/h | 300 kg |
| Statička nosivost | 750 kg |
| Veličina ploče | 140 x 110 mm |
| Razmak rupa | 105.0 x 80.0 mm |
Nosač
- pressed steel, zinc-plated, blue-passivated, Cr6-free
Točak
- tyre: high-quality elastic solid rubber "Blickle EasyRoll" in smooth rolling quality, hardness 65 Shore A, colour black
- wheel centre: die-cast aluminium
Dodatne karakteristike
- high chemical resistance to many aggressive substances, except oils
- operating temperature: -20 °C to +80 °C, temporarily up to +100 °C, reduced load capacity over +60 °C
