Šifra 842477

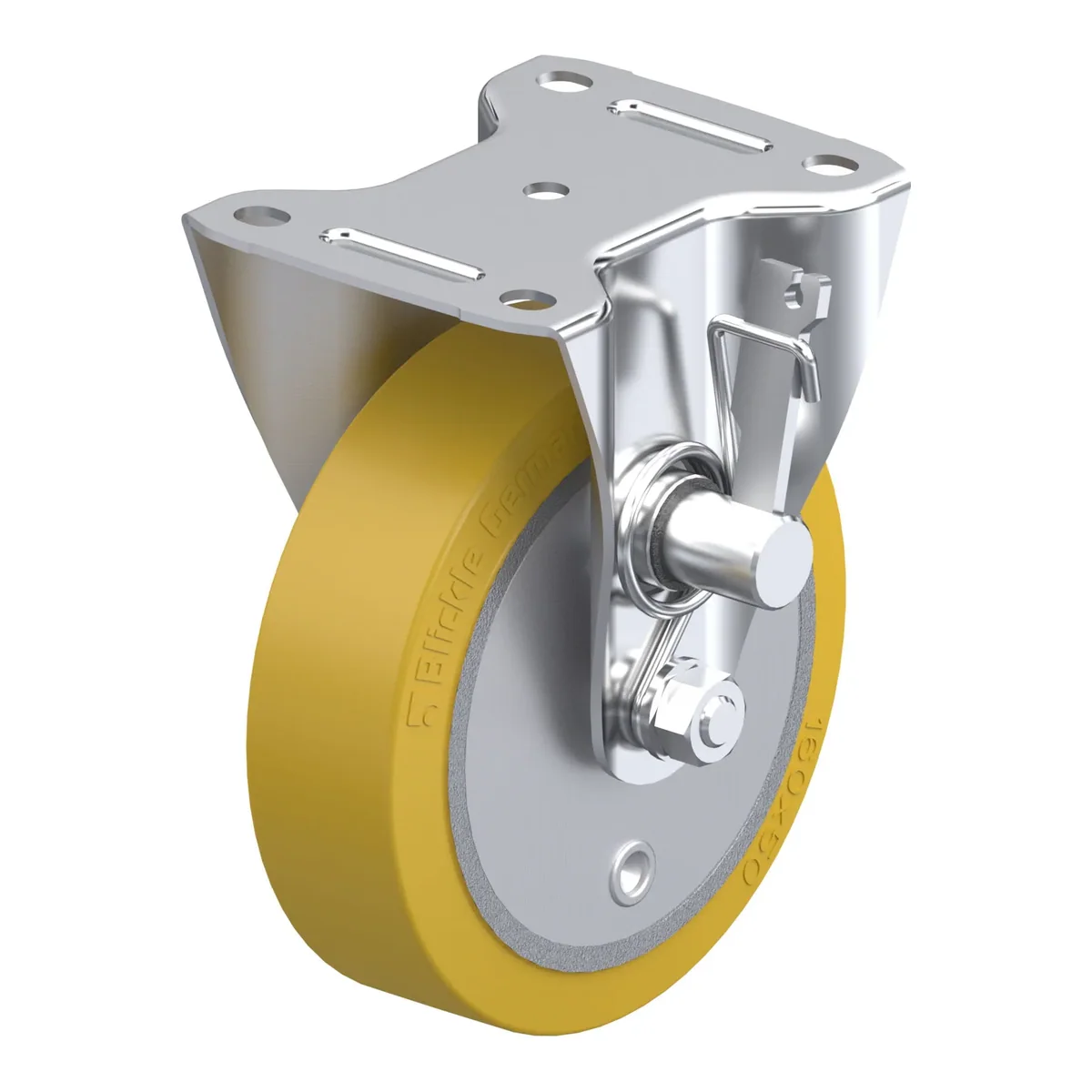

B-GTH 160K-TMR
Fiksni točkić, Blickle, Made in Germany
Ukratko: B-GTH 160K-TMR je fiksni točkić Blickle promjera 160 mm, širine 50 mm, nosivosti 600 kg pri 4 km/h (statički 1500 kg). Ukupna visina je 195 mm. Cijena je 449.74 KM s PDV-om.
Pressed steel fixed castor, medium duty design, with top plate fitting, with dead man’s brake, heavy duty wheel, with Blickle Extrathane® polyurethane tread, with cast iron wheel centre
449.74 KM
Cijena s PDV-om. Dostava širom Bosne i Hercegovine.
Veće količine: posebna ponuda na upit, +387 62 924 140, info@mhtrade.co.ba.
Tehnički podaci
| Šifra artikla | 842477 |
|---|---|
| EAN | 4047526122850 |
| Promjer točka | 160 mm |
| Širina točka | 50 mm |
| Ukupna visina | 195 mm |
| Nosivost pri 4 km/h | 600 kg |
| Statička nosivost | 1500 kg |
| Veličina ploče | 140 x 110 mm |
| Razmak rupa | 105.0 x 80.0 mm |
| Ne ostavlja tragove | da |
Nosač
- pressed steel, zinc-plated, blue-passivated, Cr6-free
Točak
- tread: high-quality polyurethane elastomer Blickle Extrathane®, hardness 92 Shore A, colour yellow, non-marking, non-staining
- wheel centre: rugged grey cast iron, lacquered, colour silver
Dodatne karakteristike
- high chemical resistance to many aggressive substances
- operating temperature: -20 °C to +70 °C, temporarily up to +90 °C, reduced load capacity over +40 °C
