Šifra 938361

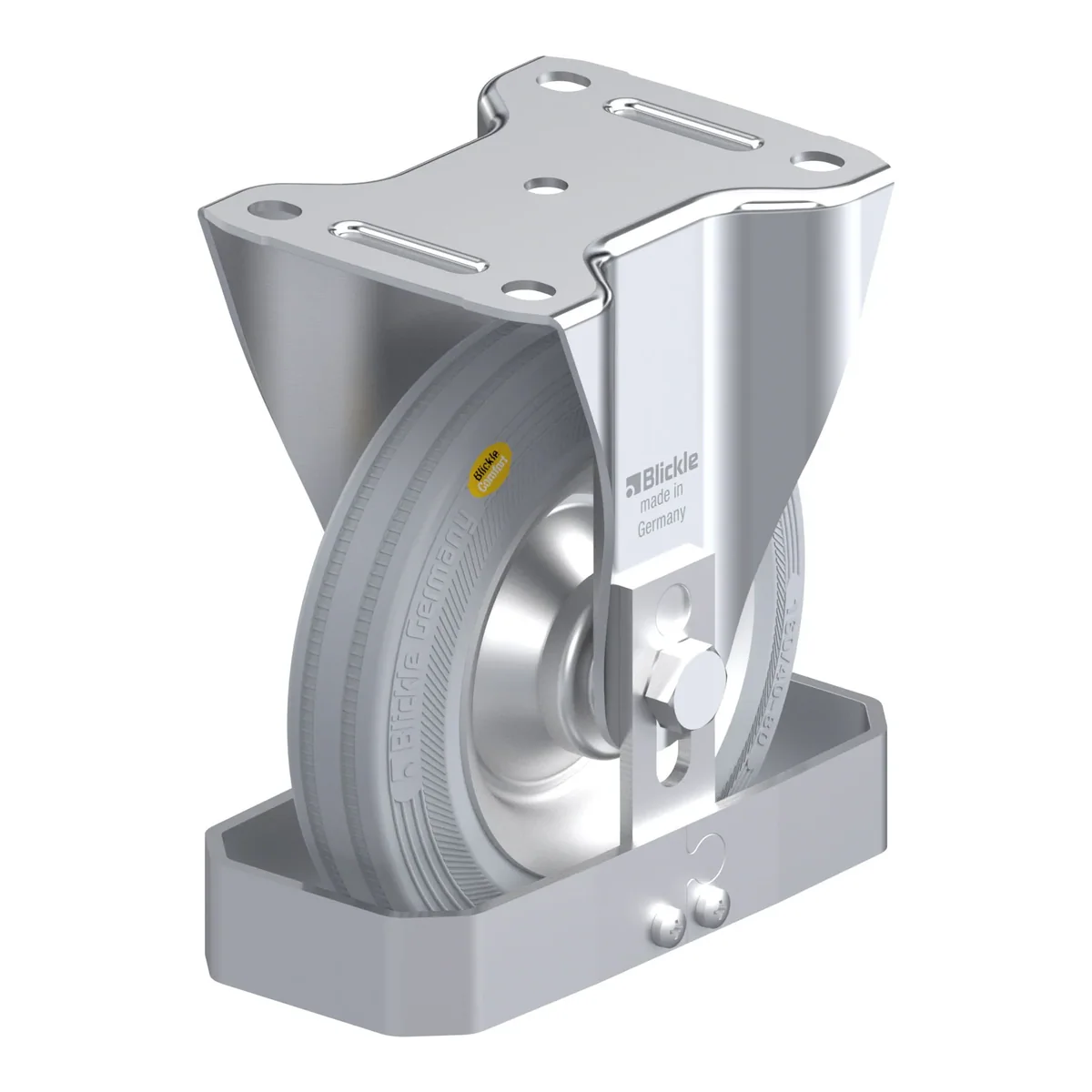

B-RD 162R-VLI-FS
Fiksni točkić, Blickle, Made in Germany
Ukratko: B-RD 162R-VLI-FS je fiksni točkić Blickle promjera 160 mm, širine 40 mm, nosivosti 225 kg pri 4 km/h (statički 565 kg). Ukupna visina je 195 mm. Radi na temperaturi od -25 °C do 80 °C. Cijena je 145.19 KM s PDV-om.
Pressed steel fixed castor, medium duty design, with top plate fitting, steel foot guard, wheel, with 'Blickle Comfort' two-component solid rubber tyres, with pressed steel rim, non-marking, grey
145.19 KM
Cijena s PDV-om. Dostava širom Bosne i Hercegovine.
Veće količine: posebna ponuda na upit, +387 62 924 140, info@mhtrade.co.ba.
Tehnički podaci
| Šifra artikla | 938361 |
|---|---|
| EAN | 4047526393137 |
| Promjer točka | 160 mm |
| Širina točka | 40 mm |
| Ukupna visina | 195 mm |
| Nosivost pri 4 km/h | 225 kg |
| Statička nosivost | 565 kg |
| Veličina ploče | 140 x 110 mm |
| Razmak rupa | 105.0 x 80.0 mm |
| Tvrdoća gazišta | 56 Shore A |
| Radna temperatura | -25 °C do 80 °C |
| Težina | 2.5 kg |
| Ne ostavlja tragove | da |
Nosač
- pressed steel, zinc-plated, blue-passivated, Cr6-free
Točak
- tyre: two-component solid rubber "Blickle Comfort", hardness 56 Shore A, colour grey
- rim: pressed steel, strong rim structure with tubular steel hub, bolted or pressed, zinc-plated, blue-passivated, Cr6-free
Dodatne karakteristike
- chemical resistance to many aggressive substances, except oils
- operating temperature: -25 °C to +80 °C, reduced load capacity over +60 °C
