Šifra 759136
B-ALSI 100HKA

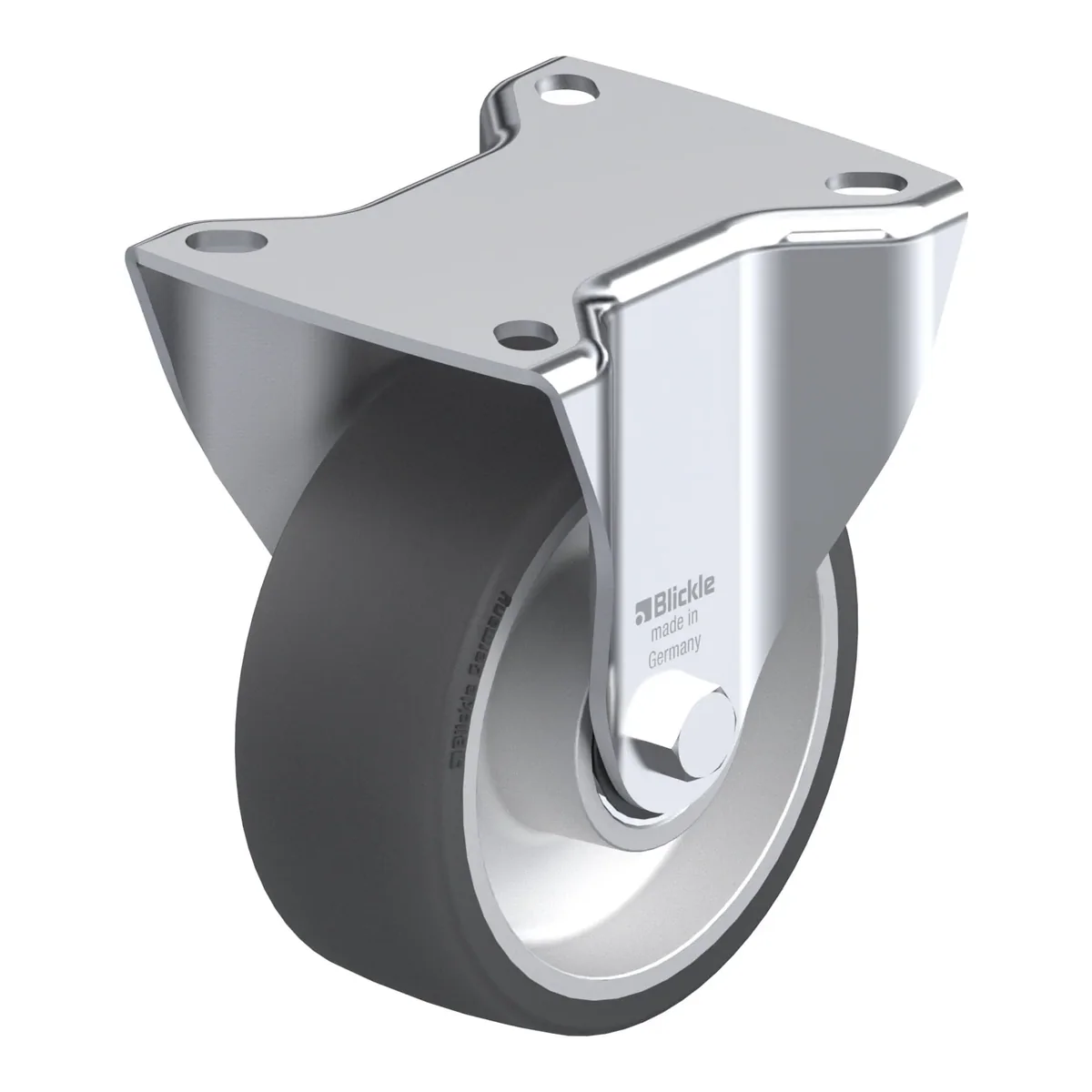

Fiksni točkić, Blickle, Made in Germany
Ukratko: B-ALSI 100HKA je fiksni točkić Blickle promjera 100 mm, širine 40 mm, nosivosti 100 kg pri 4 km/h (statički 250 kg). Ukupna visina je 125 mm. Radi na temperaturi od -25 °C do 250 °C. Cijena je 106.11 KM s PDV-om.
Pressed steel fixed castor, medium duty design, with top plate fitting, Blickle TempLine® Comfort wheel, with silicone rubber tread, with aluminium wheel centre, heat-resistant
106.11 KM
Cijena s PDV-om. Dostava širom Bosne i Hercegovine.
Veće količine: posebna ponuda na upit, +387 62 924 140, info@mhtrade.co.ba.
Tehnički podaci
| Šifra artikla | 759136 |
|---|---|
| EAN | 4047526118495 |
| Promjer točka | 100 mm |
| Širina točka | 40 mm |
| Ukupna visina | 125 mm |
| Nosivost pri 4 km/h | 100 kg |
| Statička nosivost | 250 kg |
| Veličina ploče | 100 x 85 mm |
| Razmak rupa | 65.0 x 55.0 mm |
| Tvrdoća gazišta | 75 Shore A |
| Radna temperatura | -25 °C do 250 °C |
| Težina | 0.8 kg |
Nosač
- pressed steel, zinc-plated, blue-passivated, Cr6-free
Točak
- Tread: highly heat-resistant silicone rubber, hardness 75 Shore A, colour black,non-marking
- wheel centre: die-cast aluminium
Dodatne karakteristike
- chemical resistance to many aggressive substances
- operating temperature: -25 °C to +250 °C
- oven temperature temporarily up to +300 °C, wheel temperature must not exceed +250 °C
