Šifra 938884
B-POTH 100R-FA-FS

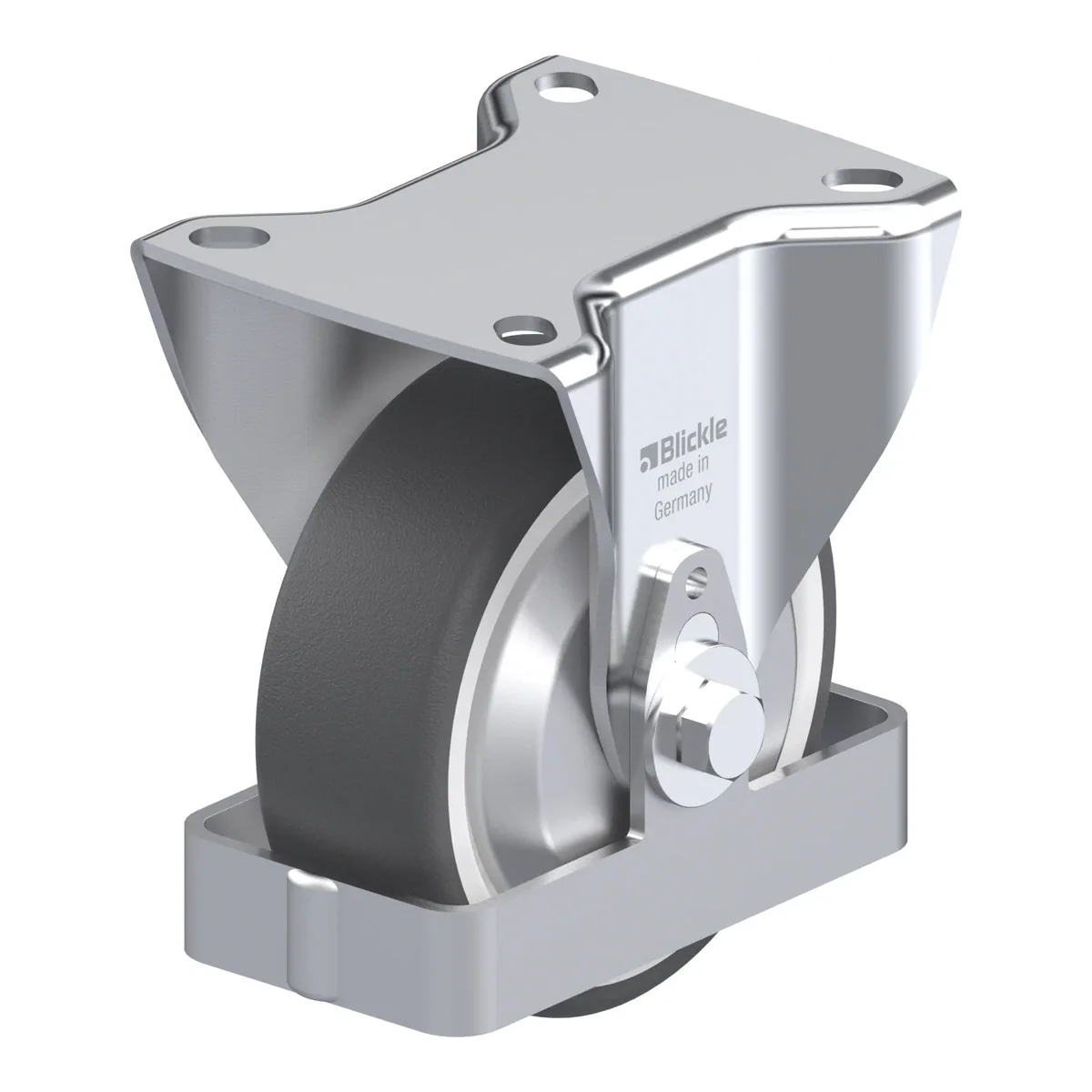

Fiksni točkić, Blickle, Made in Germany
Ukratko: B-POTH 100R-FA-FS je fiksni točkić Blickle promjera 100 mm, širine 35 mm, nosivosti 250 kg pri 4 km/h (statički 625 kg). Ukupna visina je 125 mm. Radi na temperaturi od -25 °C do 70 °C. Cijena je 108.19 KM s PDV-om.
Pressed steel fixed castor, medium duty design, with top plate fitting, steel foot guard, wheel, with thermoplastic polyurethane tread, with heavy duty nylon wheel centre, with steel thread guard
108.19 KM
Cijena s PDV-om. Dostava širom Bosne i Hercegovine.
Veće količine: posebna ponuda na upit, +387 62 924 140, info@mhtrade.co.ba.
Tehnički podaci
| Šifra artikla | 938884 |
|---|---|
| EAN | 4047526398620 |
| Promjer točka | 100 mm |
| Širina točka | 35 mm |
| Ukupna visina | 125 mm |
| Nosivost pri 4 km/h | 250 kg |
| Statička nosivost | 625 kg |
| Veličina ploče | 100 x 85 mm |
| Razmak rupa | 65.0 x 55.0 mm |
| Tvrdoća gazišta | 94 Shore A |
| Radna temperatura | -25 °C do 70 °C |
| Težina | 0.9 kg |
| Ne ostavlja tragove | da |
Nosač
- pressed steel, zinc-plated, blue-passivated, Cr6-free
Točak
- tread: high-quality thermoplastic polyurethane (TPU), hardness 94 Shore A, colour dark grey, non-marking, non-staining
- wheel centre: high-quality nylon 6, impact resistant, colour natural white
Dodatne karakteristike
- very high chemical resistance to many aggressive substances
- operating temperature: -25 °C to +70 °C, temporarily up to +90 °C, reduced load capacity over +35 °C
