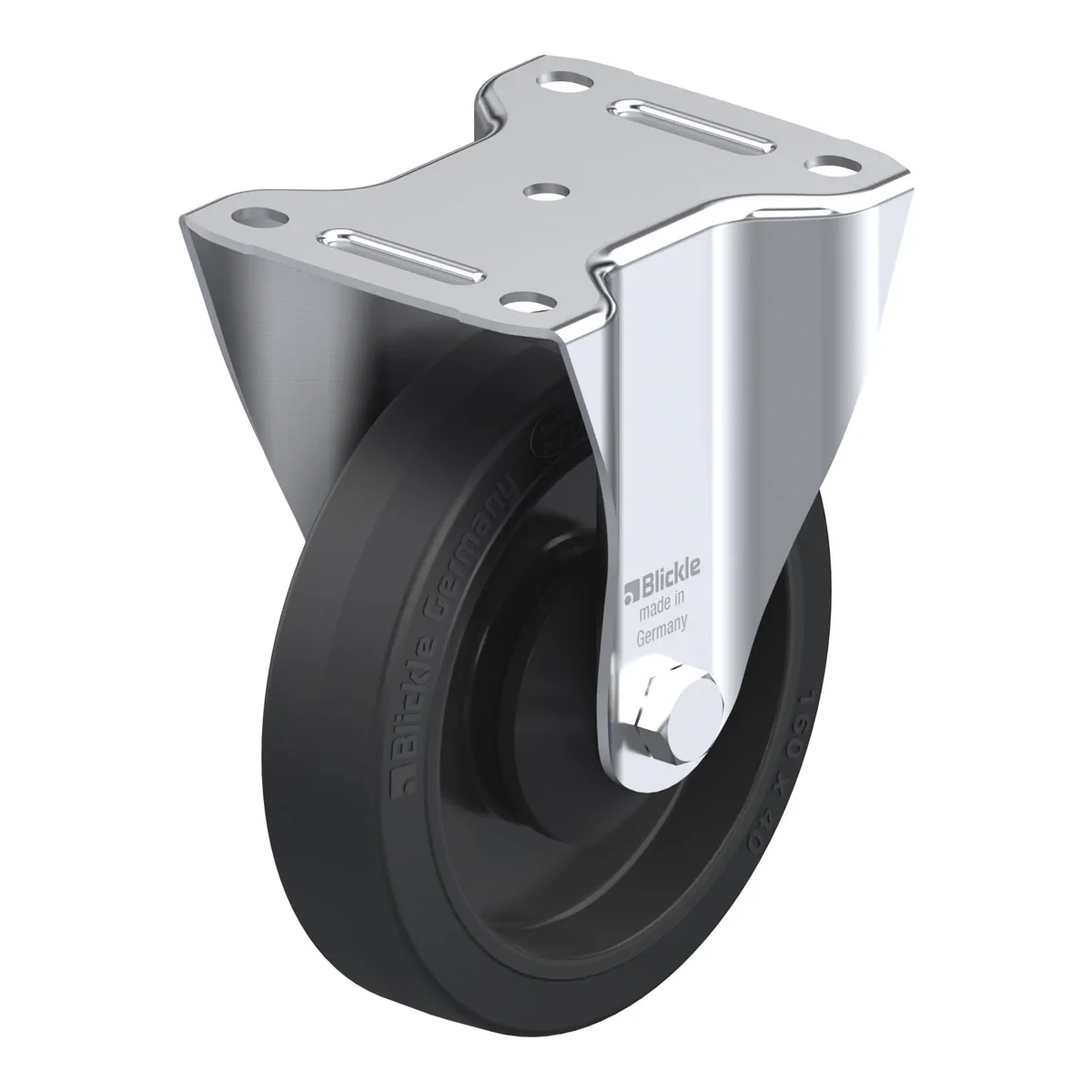

B-POEV 161KA – fiksni točkić Blickle

Šifra 754170

B-POEV 161KA

Fiksni točkić, Blickle, Made in Germany

Ukratko: B-POEV 161KA je fiksni točkić Blickle promjera 160 mm, širine 40 mm, nosivosti 320 kg pri 4 km/h (statički 800 kg). Ukupna visina je 195 mm. Radi na temperaturi od -20 °C do 80 °C. Cijena je 77.70 KM s PDV-om.

Pressed steel fixed castor, medium duty design, with top plate fitting, heavy duty wheel, with 'Blickle EasyRoll' elastic solid rubber tyres, with nylon wheel centre, with synthetic thread guard, small

77.70 KM

Cijena s PDV-om. Dostava širom Bosne i Hercegovine.

Veće količine: posebna ponuda na upit, +387 62 924 140, info@mhtrade.co.ba.

Tehnički podaci

Šifra artikla754170
EAN4047526080327
Promjer točka160 mm
Širina točka40 mm
Ukupna visina195 mm
Nosivost pri 4 km/h320 kg
Statička nosivost800 kg
Veličina ploče140 x 110 mm
Razmak rupa105.0 x 80.0 mm
Tvrdoća gazišta65 Shore A
Radna temperatura-20 °C do 80 °C
Težina1.4 kg

Nosač

  • pressed steel, zinc-plated, blue-passivated, Cr6-free

Točak

  • tyre: high-quality elastic solid rubber "Blickle EasyRoll" in smooth rolling quality, hardness 65 Shore A, colour black
  • wheel centre: high-quality nylon 6, impact resistant, colour black

Dodatne karakteristike

  • with synthetic thread guard, small
  • high chemical resistance to many aggressive substances, except oils
  • operating temperature: -20 °C to +80 °C, temporarily up to +100 °C, reduced load capacity over +35 °C
