Šifra 925966

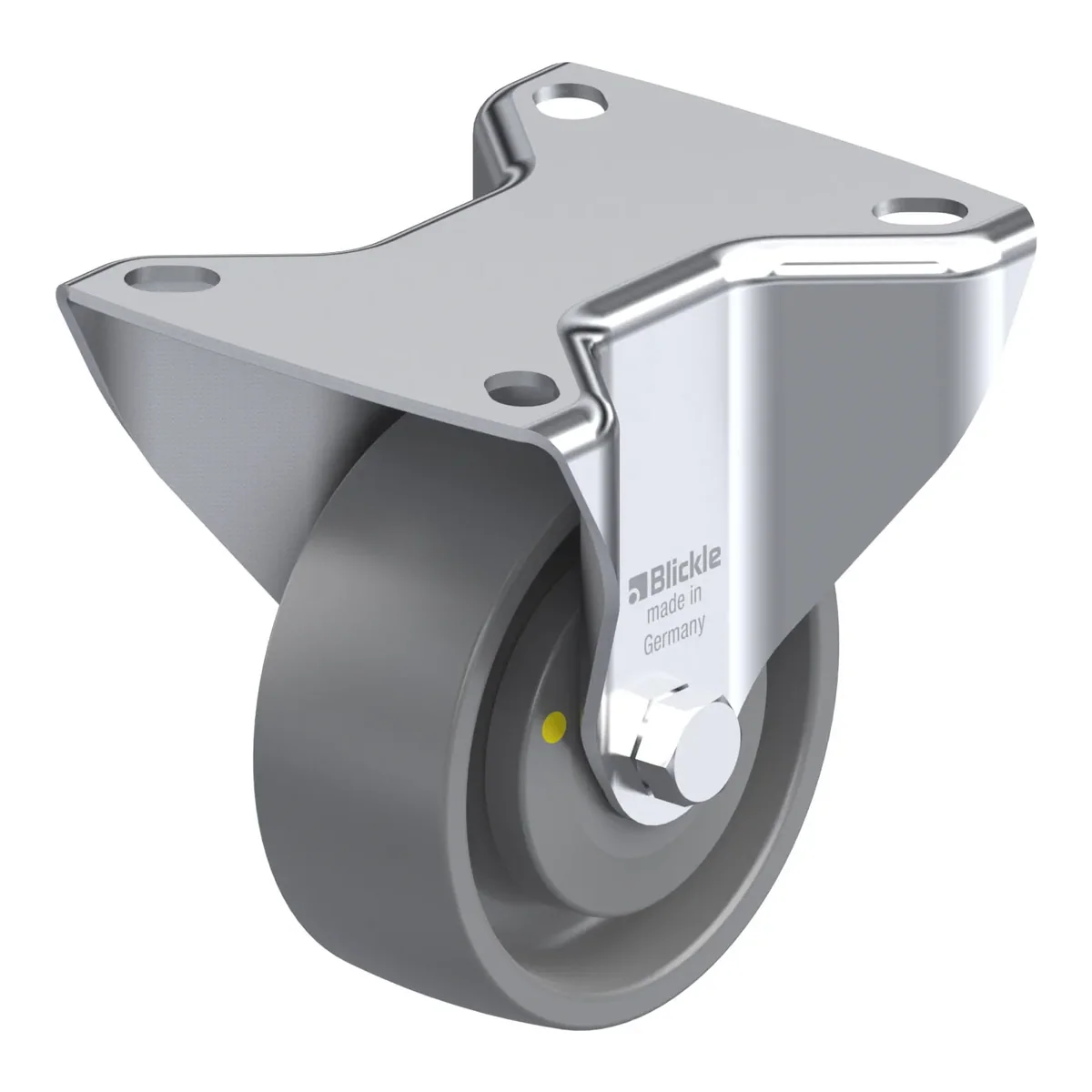

B-PO 80KA-ELS
Fiksni točkić, Blickle, Made in Germany
Ukratko: B-PO 80KA-ELS je fiksni točkić Blickle promjera 80 mm, širine 32 mm, nosivosti 220 kg pri 4 km/h (statički 550 kg). Ukupna visina je 102 mm. Radi na temperaturi od -20 °C do 80 °C. Cijena je 46.29 KM s PDV-om.
Pressed steel fixed castor, medium duty design, with top plate fitting, nylon wheel, with synthetic thread guard, small, electrically conductive, non-marking
46.29 KM
Cijena s PDV-om. Dostava širom Bosne i Hercegovine.
Veće količine: posebna ponuda na upit, +387 62 924 140, info@mhtrade.co.ba.
Tehnički podaci
| Šifra artikla | 925966 |
|---|---|
| EAN | 4047526354060 |
| Promjer točka | 80 mm |
| Širina točka | 32 mm |
| Ukupna visina | 102 mm |
| Nosivost pri 4 km/h | 220 kg |
| Statička nosivost | 550 kg |
| Veličina ploče | 100 x 85 mm |
| Razmak rupa | 65.0 x 55.0 mm |
| Tvrdoća gazišta | 70 Shore A |
| Radna temperatura | -20 °C do 80 °C |
| Težina | 0.4 kg |
| Ne ostavlja tragove | da |
| ESD zaštita | da |
Nosač
- pressed steel, zinc-plated, blue-passivated, Cr6-free
Točak
- high-quality nylon 6, impact resistant, hardness 70 Shore D, colour grey, non-marking
Dodatne karakteristike
- with synthetic thread guard, small
- high chemical resistance to many aggressive substances
- operating temperature: -20 °C to +80 °C, reduced load capacity over +35 °C
- electrical conductivity (ohmic resistance) ≤ 104Ω
