Šifra 40527
B-P 265R

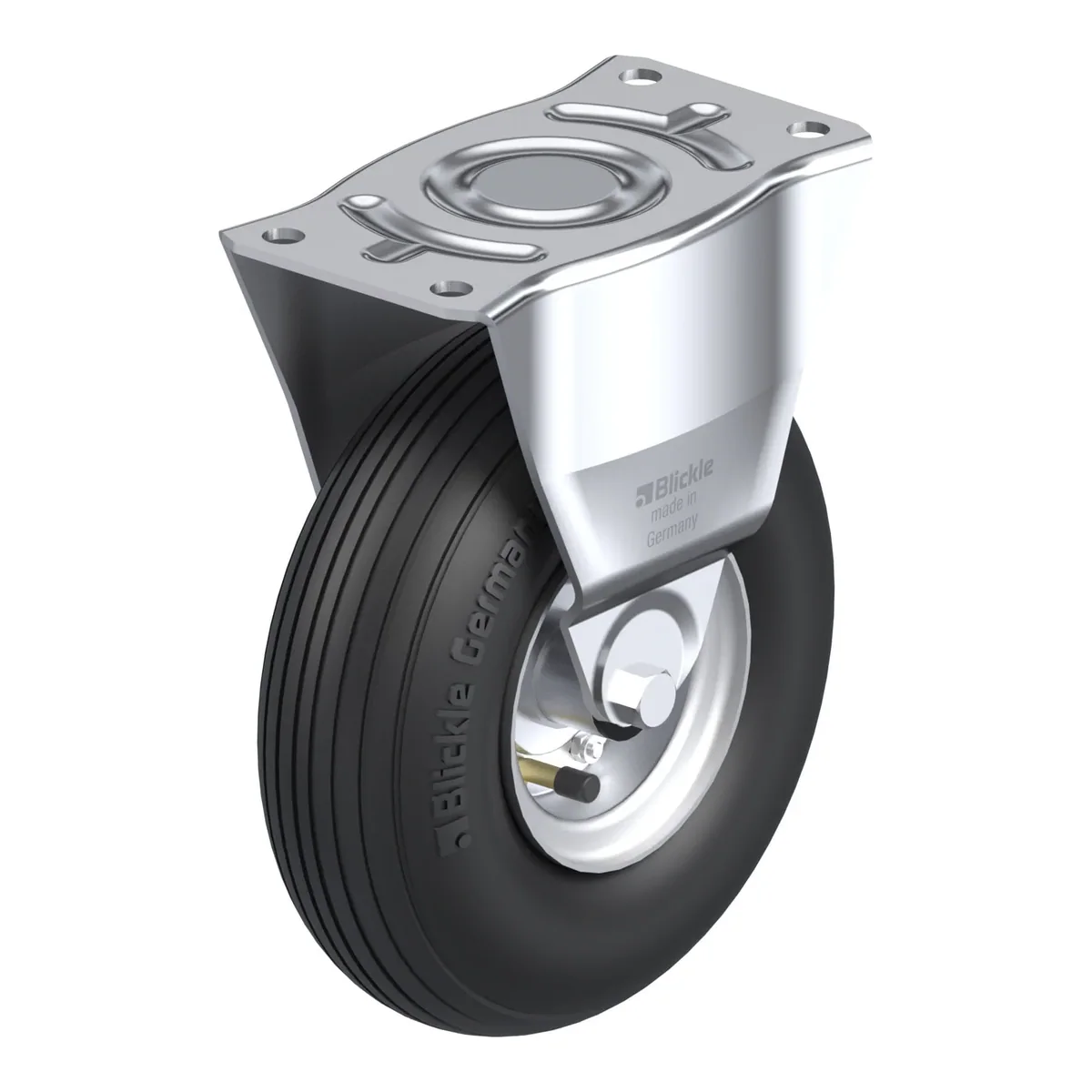

Fiksni točkić, Blickle, Made in Germany
Ukratko: B-P 265R je fiksni točkić Blickle promjera 260 mm, širine 85 mm, nosivosti 250 kg pri 4 km/h (statički 250 kg). Ukupna visina je 308 mm. Radi na temperaturi od -25 °C do 50 °C. Cijena je 190.58 KM s PDV-om.
Pressed steel fixed castor, medium duty design, with top plate fitting, wheel, with pneumatic tyre, with pressed steel rim
190.58 KM
Cijena s PDV-om. Dostava širom Bosne i Hercegovine.
Veće količine: posebna ponuda na upit, +387 62 924 140, info@mhtrade.co.ba.
Tehnički podaci
| Šifra artikla | 40527 |
|---|---|
| EAN | 4047526040529 |
| Promjer točka | 260 mm |
| Širina točka | 85 mm |
| Ukupna visina | 308 mm |
| Nosivost pri 4 km/h | 250 kg |
| Statička nosivost | 250 kg |
| Veličina ploče | 220 x 130 mm |
| Razmak rupa | 185.0 x 100.0 mm |
| Tvrdoća gazišta | 60 Shore A |
| Radna temperatura | -25 °C do 50 °C |
| Težina | 4.1 kg |
Nosač
- pressed steel, zinc-plated, blue-passivated, Cr6-free
Točak
- tyre: pneumatic tyre with ribbed profile, hardness 60 Shore A, colour black, 4-ply rating
- rim: pressed steel, with welded tubular steel hub, zinc-plated, blue-passivated, Cr6-free
- swivel castors with brakes lose brake force if the tyre pressure is too low
Dodatne karakteristike
- chemical resistance to many aggressive substances, except oils
- operating temperature: -25 °C to +50 °C
- the wheel and tyre dimensions provided here apply to new tyres that are not bearing a load. Their width and diameter may change when they are in use.
- speeds up to 16 km/h possible for wheels with ball bearing and reduced load capacity
