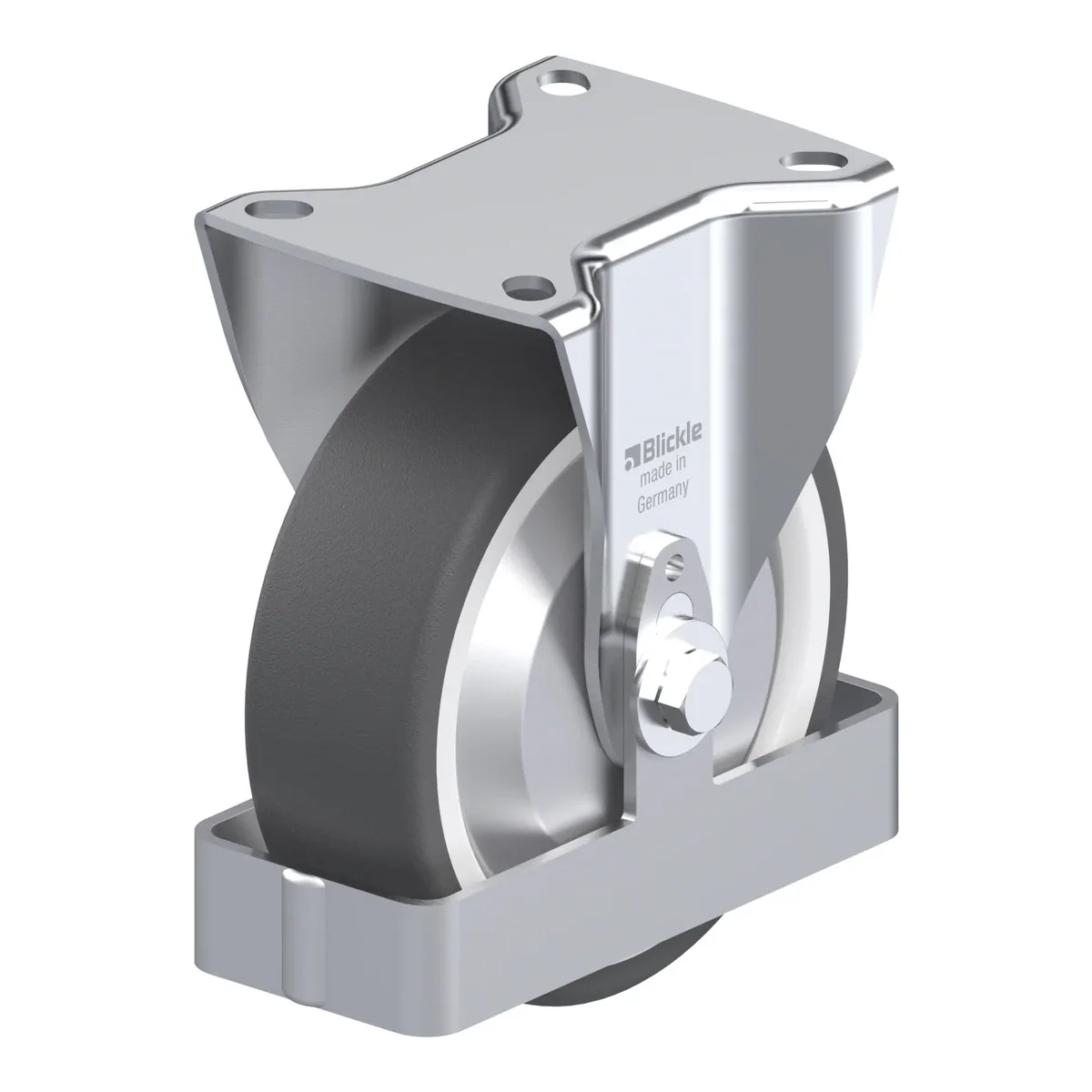

B-POTH 125G-FA-FS – fiksni točkić Blickle

Šifra 938886

B-POTH 125G-FA-FS

Fiksni točkić, Blickle, Made in Germany

Ukratko: B-POTH 125G-FA-FS je fiksni točkić Blickle promjera 125 mm, širine 40 mm, nosivosti 250 kg pri 4 km/h (statički 625 kg). Ukupna visina je 150 mm. Radi na temperaturi od -25 °C do 70 °C. Cijena je 114.73 KM s PDV-om.

Pressed steel fixed castor, medium duty design, with top plate fitting, steel foot guard, wheel, with thermoplastic polyurethane tread, with heavy duty nylon wheel centre, with steel thread guard

114.73 KM

Cijena s PDV-om. Dostava širom Bosne i Hercegovine.

Veće količine: posebna ponuda na upit, +387 62 924 140, info@mhtrade.co.ba.

Tehnički podaci

Šifra artikla938886
EAN4047526398644
Promjer točka125 mm
Širina točka40 mm
Ukupna visina150 mm
Nosivost pri 4 km/h250 kg
Statička nosivost625 kg
Veličina ploče100 x 85 mm
Razmak rupa65.0 x 55.0 mm
Tvrdoća gazišta94 Shore A
Radna temperatura-25 °C do 70 °C
Težina1.1 kg
Ne ostavlja tragoveda

Nosač

  • pressed steel, zinc-plated, blue-passivated, Cr6-free

Točak

  • tread: high-quality thermoplastic polyurethane (TPU), hardness 94 Shore A, colour dark grey, non-marking, non-staining
  • wheel centre: high-quality nylon 6, impact resistant, colour natural white

Dodatne karakteristike

  • very high chemical resistance to many aggressive substances
  • operating temperature: -25 °C to +70 °C, temporarily up to +90 °C, reduced load capacity over +35 °C
