Šifra 946612
B-PO 150G-ELS-FA-FS

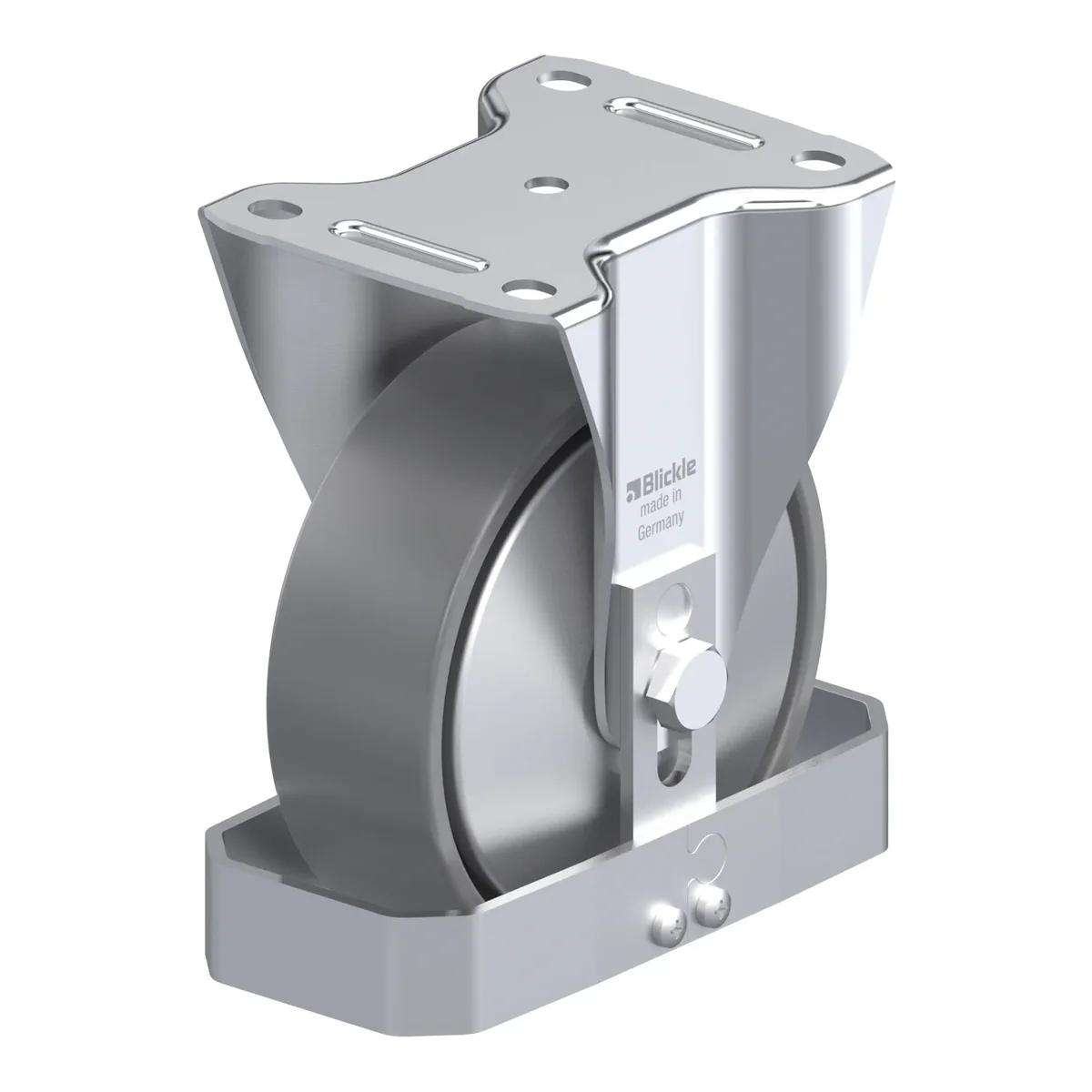

Fiksni točkić, Blickle, Made in Germany
Ukratko: B-PO 150G-ELS-FA-FS je fiksni točkić Blickle promjera 150 mm, širine 50 mm, nosivosti 400 kg pri 4 km/h (statički 1000 kg). Ukupna visina je 190 mm. Cijena je 171.15 KM s PDV-om.
Pressed steel fixed castor, medium duty design, with top plate fitting, steel foot guard, nylon wheel, with steel thread guard, electrically conductive, non-marking
171.15 KM
Cijena s PDV-om. Dostava širom Bosne i Hercegovine.
Veće količine: posebna ponuda na upit, +387 62 924 140, info@mhtrade.co.ba.
Tehnički podaci
| Šifra artikla | 946612 |
|---|---|
| EAN | 4047526370114 |
| Promjer točka | 150 mm |
| Širina točka | 50 mm |
| Ukupna visina | 190 mm |
| Nosivost pri 4 km/h | 400 kg |
| Statička nosivost | 1000 kg |
| Veličina ploče | 140 x 110 mm |
| Razmak rupa | 105.0 x 80.0 mm |
| Ne ostavlja tragove | da |
| ESD zaštita | da |
Nosač
- pressed steel, zinc-plated, blue-passivated, Cr6-free
Točak
- high-quality nylon 6, impact resistant, hardness 70 Shore D, colour grey, non-marking
Dodatne karakteristike
- high chemical resistance to many aggressive substances
- operating temperature: -25 °C to +80 °C, reduced load capacity over +35 °C
- electrical conductivity (ohmic resistance) ≤ 104Ω
