Šifra 846993

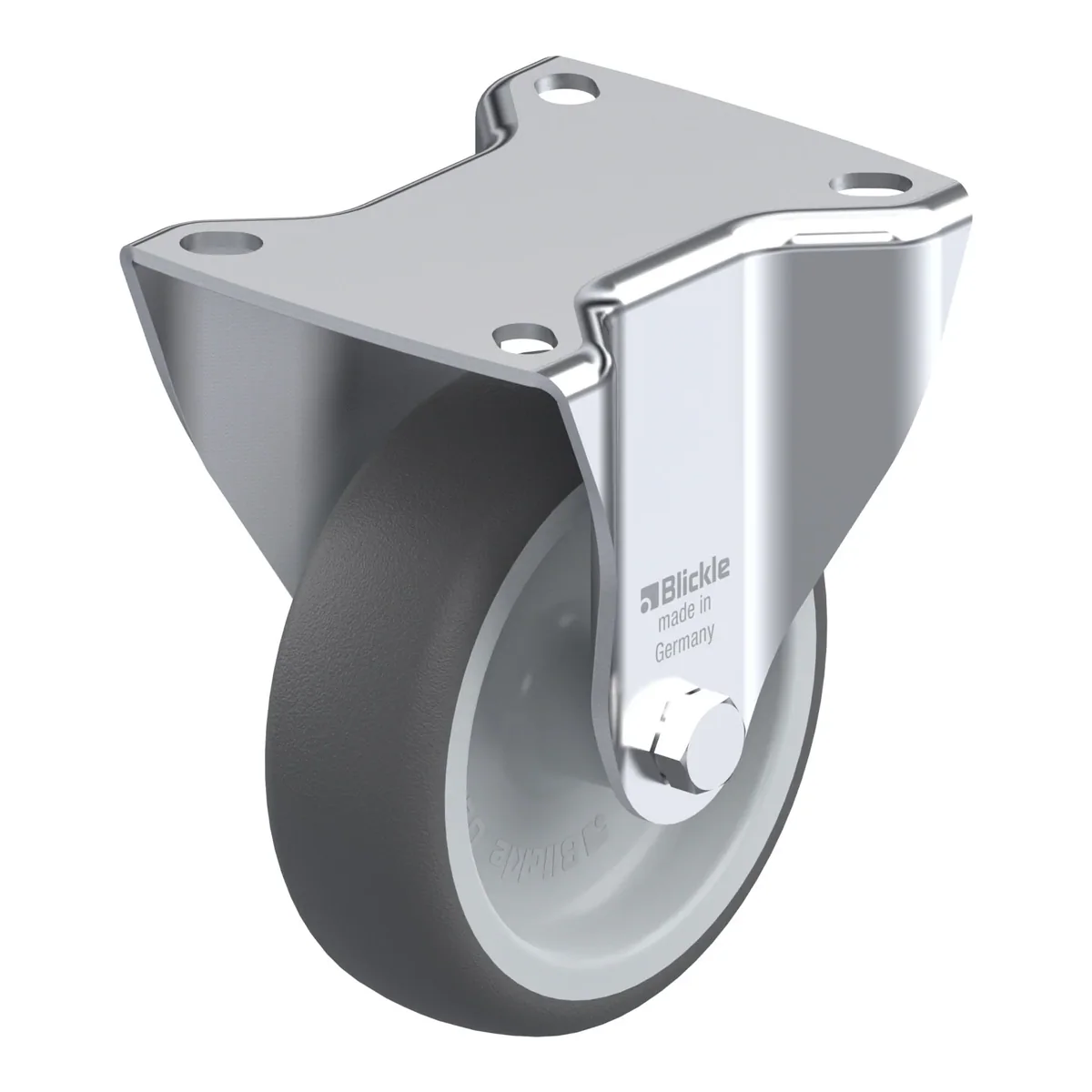

B-PATH 100G
Fiksni točkić, Blickle, Made in Germany
Ukratko: B-PATH 100G je fiksni točkić Blickle promjera 100 mm, širine 32 mm, nosivosti 200 kg pri 4 km/h (statički 500 kg). Ukupna visina je 125 mm. Cijena je 29.37 KM s PDV-om.
Pressed steel fixed castor, medium duty design, with top plate fitting, wheel, with thermoplastic polyurethane tread, with nylon wheel centre
29.37 KM
Cijena s PDV-om. Dostava širom Bosne i Hercegovine.
Veće količine: posebna ponuda na upit, +387 62 924 140, info@mhtrade.co.ba.
Tehnički podaci
| Šifra artikla | 846993 |
|---|---|
| EAN | 4047526126247 |
| Promjer točka | 100 mm |
| Širina točka | 32 mm |
| Ukupna visina | 125 mm |
| Nosivost pri 4 km/h | 200 kg |
| Statička nosivost | 500 kg |
| Veličina ploče | 100 x 85 mm |
| Razmak rupa | 65.0 x 55.0 mm |
| Ne ostavlja tragove | da |
Nosač
- pressed steel, zinc-plated, blue-passivated, Cr6-free
Točak
- tread: high-quality thermoplastic polyurethane (TPU), hardness 94 Shore A, colour dark grey, non-marking, non-staining
- wheel centre: high-quality nylon 6, impact resistant, colour silver grey
Dodatne karakteristike
- very high chemical resistance to many aggressive substances
- operating temperature: -25 °C to +70 °C, temporarily up to +90 °C, reduced load capacity over +35 °C
