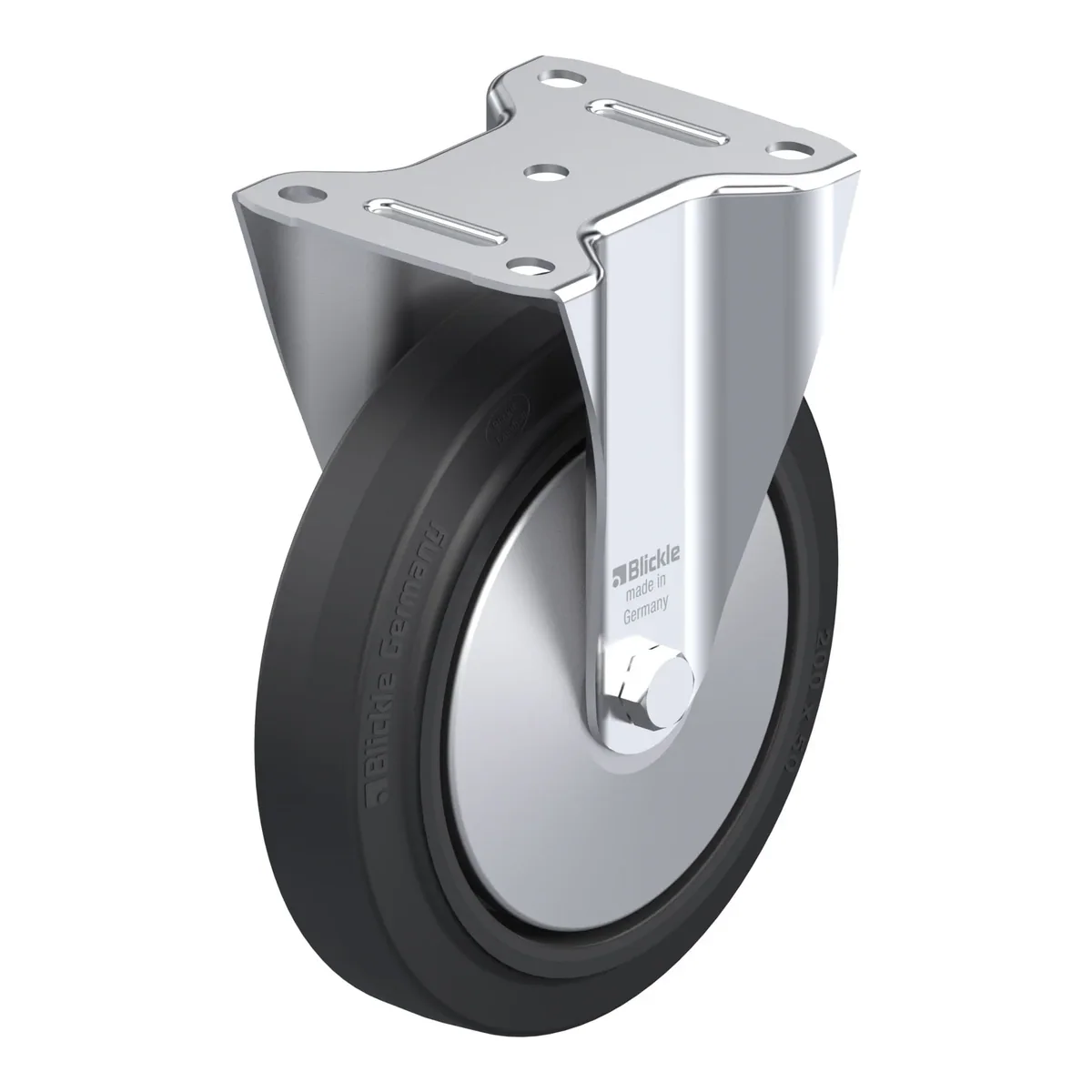

B-POEV 200KA-FA – fiksni točkić Blickle

Šifra 21204

B-POEV 200KA-FA

Fiksni točkić, Blickle, Made in Germany

Ukratko: B-POEV 200KA-FA je fiksni točkić Blickle promjera 200 mm, širine 50 mm, nosivosti 400 kg pri 4 km/h (statički 1000 kg). Ukupna visina je 235 mm. Radi na temperaturi od -20 °C do 80 °C. Cijena je 131.25 KM s PDV-om.

Pressed steel fixed castor, medium duty design, with top plate fitting, heavy duty wheel, with 'Blickle EasyRoll' elastic solid rubber tyres, with nylon wheel centre, with synthetic thread guard, small, w ith steel thread guard

131.25 KM

Cijena s PDV-om. Dostava širom Bosne i Hercegovine.

Veće količine: posebna ponuda na upit, +387 62 924 140, info@mhtrade.co.ba.

Tehnički podaci

Šifra artikla21204
EAN4047526021207
Promjer točka200 mm
Širina točka50 mm
Ukupna visina235 mm
Nosivost pri 4 km/h400 kg
Statička nosivost1000 kg
Veličina ploče140 x 110 mm
Razmak rupa105.0 x 80.0 mm
Tvrdoća gazišta65 Shore A
Radna temperatura-20 °C do 80 °C
Težina2.2 kg

Nosač

  • pressed steel, zinc-plated, blue-passivated, Cr6-free

Točak

  • tyre: high-quality elastic solid rubber "Blickle EasyRoll" in smooth rolling quality, hardness 65 Shore A, colour black
  • wheel centre: high-quality nylon 6, impact resistant, colour black

Dodatne karakteristike

  • with synthetic thread guard, small
  • high chemical resistance to many aggressive substances, except oils
  • operating temperature: -20 °C to +80 °C, temporarily up to +100 °C, reduced load capacity over +35 °C
