Šifra 449744
B-ALEV 100K

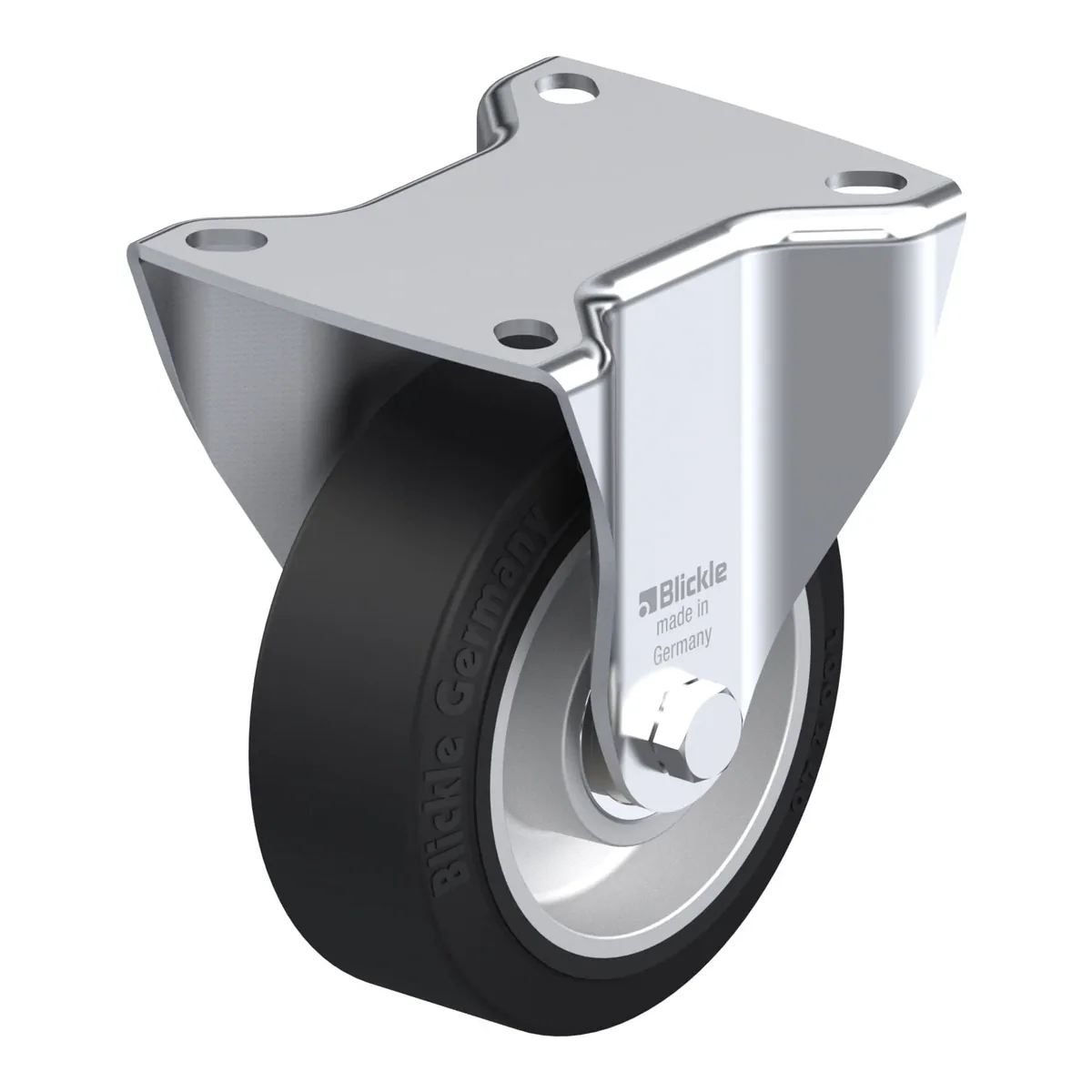

Fiksni točkić, Blickle, Made in Germany
Ukratko: B-ALEV 100K je fiksni točkić Blickle promjera 100 mm, širine 40 mm, nosivosti 200 kg pri 4 km/h (statički 500 kg). Ukupna visina je 125 mm. Cijena je 50.62 KM s PDV-om.
Pressed steel fixed castor, medium duty design, with top plate fitting, heavy duty wheel, with 'Blickle EasyRoll' elastic solid rubber tyres, with aluminium wheel centre
50.62 KM
Redovna cijena 56.24 KM, akcija −10%
Cijena s PDV-om. Dostava širom Bosne i Hercegovine.
Veće količine: posebna ponuda na upit, +387 62 924 140, info@mhtrade.co.ba.
Tehnički podaci
| Šifra artikla | 449744 |
|---|---|
| EAN | 4047526449742 |
| Promjer točka | 100 mm |
| Širina točka | 40 mm |
| Ukupna visina | 125 mm |
| Nosivost pri 4 km/h | 200 kg |
| Statička nosivost | 500 kg |
| Veličina ploče | 100 x 85 mm |
| Razmak rupa | 65.0 x 55.0 mm |
Nosač
- pressed steel, zinc-plated, blue-passivated, Cr6-free
Točak
- tyre: high-quality elastic solid rubber "Blickle EasyRoll" in smooth rolling quality, hardness 65 Shore A, colour black
- wheel centre: die-cast aluminium
Dodatne karakteristike
- high chemical resistance to many aggressive substances, except oils
- operating temperature: -20 °C to +80 °C, temporarily up to +100 °C, reduced load capacity over +60 °C
