Šifra 64709
B-V 80R-SG-FA

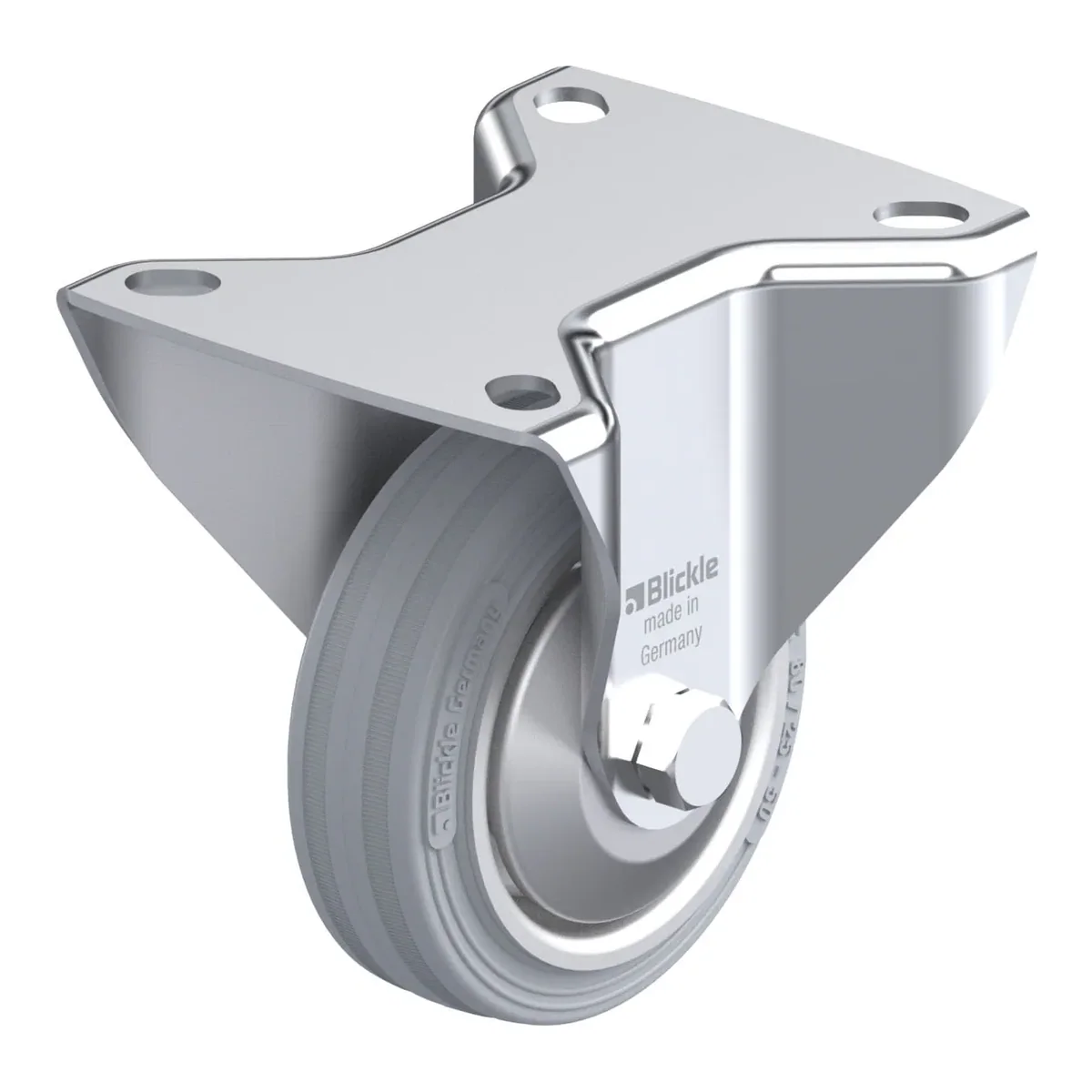

Fiksni točkić, Blickle, Made in Germany
Ukratko: B-V 80R-SG-FA je fiksni točkić Blickle promjera 80 mm, širine 25 mm, nosivosti 50 kg pri 4 km/h (statički 125 kg). Ukupna visina je 102 mm. Cijena je 40.95 KM s PDV-om.
Pressed steel fixed castor, medium duty design, with top plate fitting, wheel, with standard solid rubber tyre, with pressed steel rim, reinforced design, non-marking, grey, with steel thread guard
40.95 KM
Cijena s PDV-om. Dostava širom Bosne i Hercegovine.
Veće količine: posebna ponuda na upit, +387 62 924 140, info@mhtrade.co.ba.
Tehnički podaci
| Šifra artikla | 64709 |
|---|---|
| EAN | 4047526064709 |
| Promjer točka | 80 mm |
| Širina točka | 25 mm |
| Ukupna visina | 102 mm |
| Nosivost pri 4 km/h | 50 kg |
| Statička nosivost | 125 kg |
| Veličina ploče | 100 x 85 mm |
| Razmak rupa | 65.0 x 55.0 mm |
| Ne ostavlja tragove | da |
Nosač
- pressed steel, zinc-plated, blue-passivated, Cr6-free
Točak
- tyre: standard solid rubber, hardness 80 Shore A, colour grey, non-marking
- rim: pressed steel, strong rim structure with tubular steel hub, bolted or pressed, zinc-plated, blue-passivated, Cr6-free
Dodatne karakteristike
- chemical resistance to many aggressive substances, except oils
- operating temperature: -25 °C to +80 °C, reduced load capacity over +60 °C
