Šifra 281378

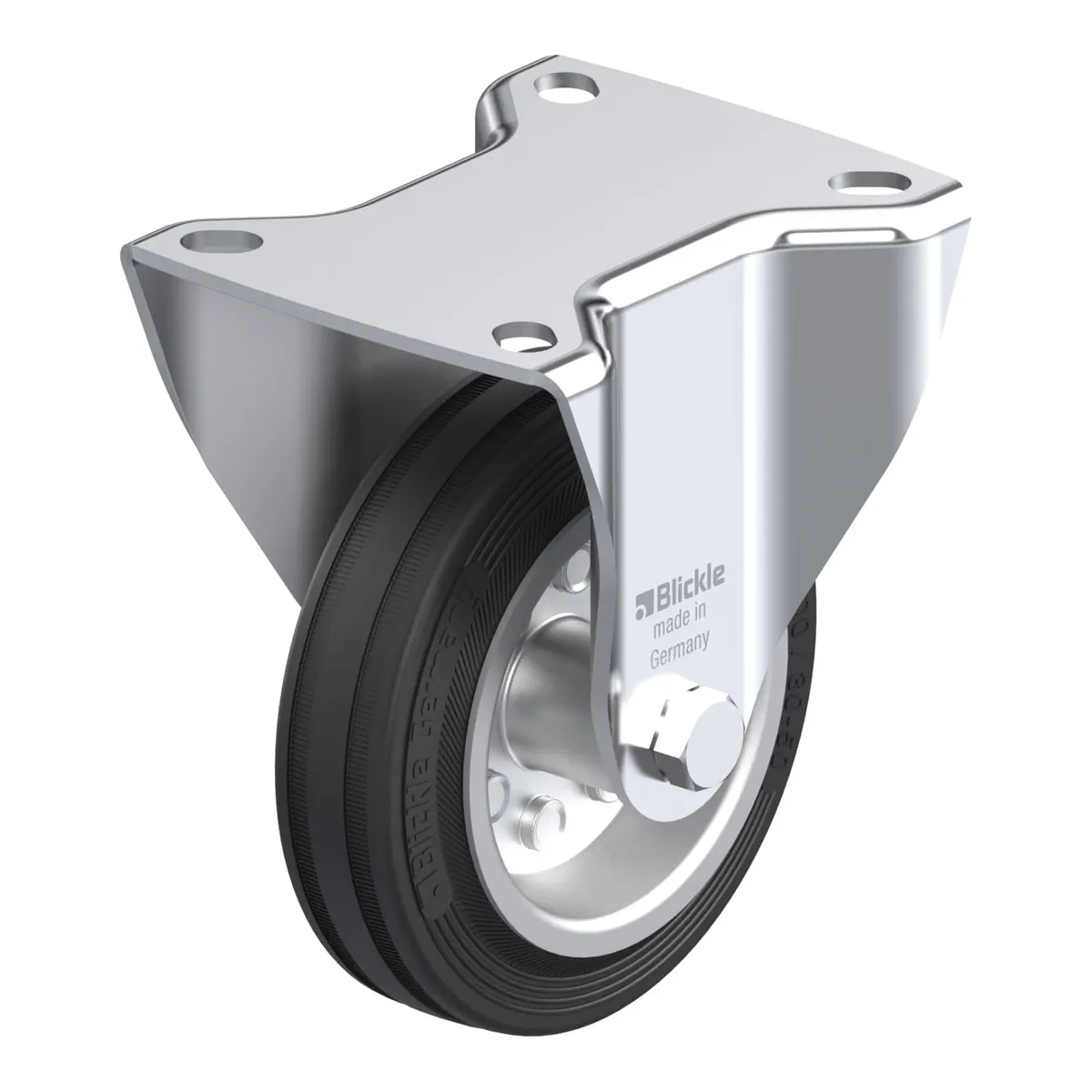

B-VE 100R
Fiksni točkić, Blickle, Made in Germany
Ukratko: B-VE 100R je fiksni točkić Blickle promjera 100 mm, širine 30 mm, nosivosti 70 kg pri 4 km/h (statički 175 kg). Ukupna visina je 125 mm. Cijena je 23.92 KM s PDV-om.
Pressed steel fixed castor, medium duty design, with top plate fitting, wheel, with standard solid rubber tyre, with pressed steel rim
23.92 KM
Redovna cijena 29.91 KM, akcija −20%
Cijena s PDV-om. Dostava širom Bosne i Hercegovine.
Veće količine: posebna ponuda na upit, +387 62 924 140, info@mhtrade.co.ba.
Tehnički podaci
| Šifra artikla | 281378 |
|---|---|
| EAN | 4047526281373 |
| Promjer točka | 100 mm |
| Širina točka | 30 mm |
| Ukupna visina | 125 mm |
| Nosivost pri 4 km/h | 70 kg |
| Statička nosivost | 175 kg |
| Veličina ploče | 100 x 85 mm |
| Razmak rupa | 65.0 x 55.0 mm |
Nosač
- pressed steel, zinc-plated, blue-passivated, Cr6-free
Točak
- tyre: standard solid rubber, hardness 80 Shore A, colour black
- rim: pressed steel, zinc-plated, blue-passivated, Cr6-free
Dodatne karakteristike
- chemical resistance to many aggressive substances, except oils
- operating temperature: -25 °C to +80 °C, reduced load capacity over +60 °C
