Šifra 62984

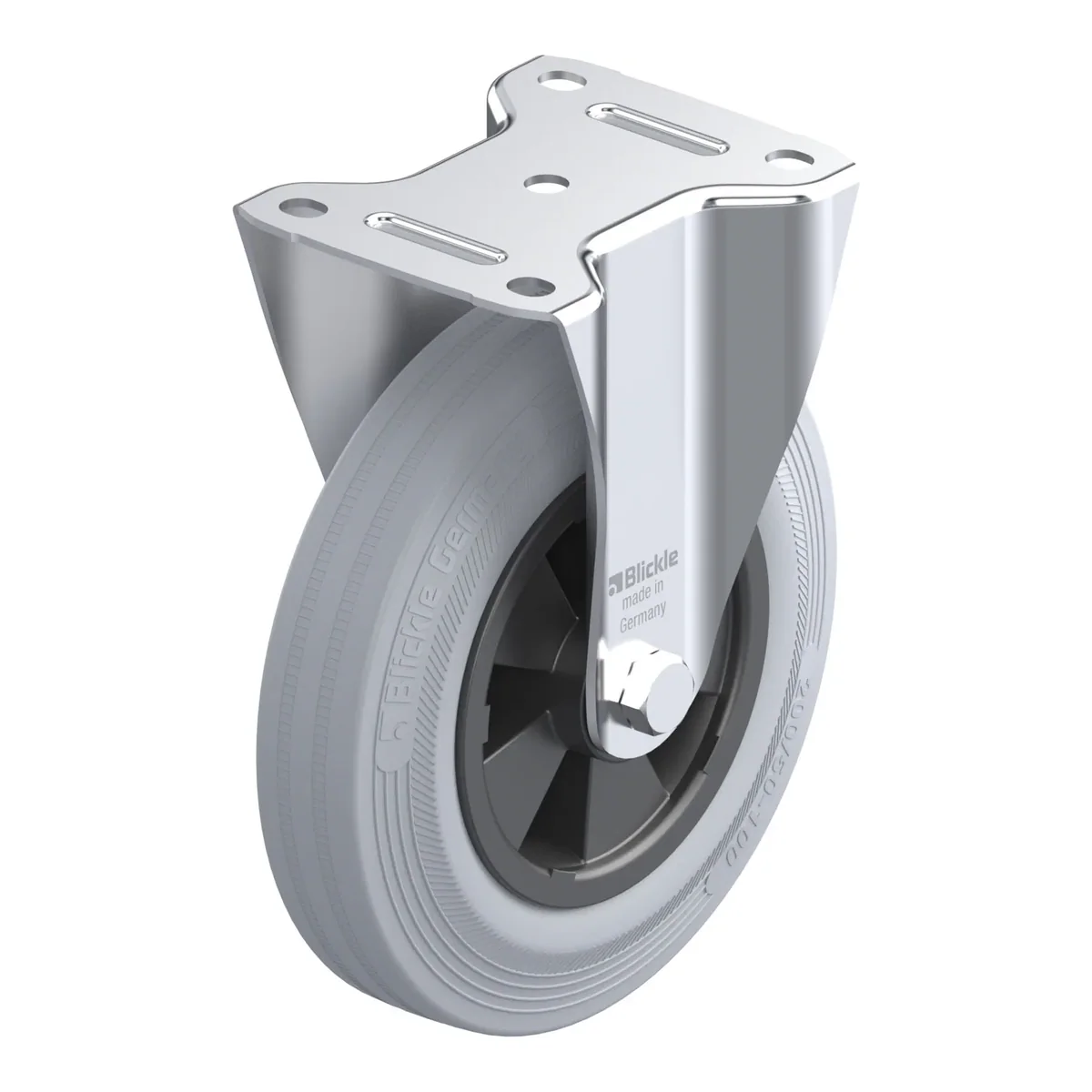

B-VPP 200R-SG
Fiksni točkić, Blickle, Made in Germany
Ukratko: B-VPP 200R-SG je fiksni točkić Blickle promjera 200 mm, širine 50 mm, nosivosti 205 kg pri 4 km/h (statički 515 kg). Ukupna visina je 235 mm. Radi na temperaturi od -20 °C do 60 °C. Cijena je 84.97 KM s PDV-om.
Pressed steel fixed castor, medium duty design, with top plate fitting, wheel, with standard solid rubber tyre, with synthetic rim, non-marking, grey
84.97 KM
Cijena s PDV-om. Dostava širom Bosne i Hercegovine.
Veće količine: posebna ponuda na upit, +387 62 924 140, info@mhtrade.co.ba.
Tehnički podaci
| Šifra artikla | 62984 |
|---|---|
| EAN | 4047526062989 |
| Promjer točka | 200 mm |
| Širina točka | 50 mm |
| Ukupna visina | 235 mm |
| Nosivost pri 4 km/h | 205 kg |
| Statička nosivost | 515 kg |
| Veličina ploče | 140 x 110 mm |
| Razmak rupa | 105.0 x 80.0 mm |
| Tvrdoća gazišta | 80 Shore A |
| Radna temperatura | -20 °C do 60 °C |
| Težina | 2.3 kg |
| Ne ostavlja tragove | da |
Nosač
- pressed steel, zinc-plated, blue-passivated, Cr6-free
Točak
- tyre: standard solid rubber, hardness 80 Shore A, colour grey, non-marking
- rim: high-quality polypropylene, impact resistant, colour black
Dodatne karakteristike
- high chemical resistance to many aggressive substances, except oils
- operating temperature: -20 °C to +60 °C, reduced load capacity over +30 °C
