Šifra 938372

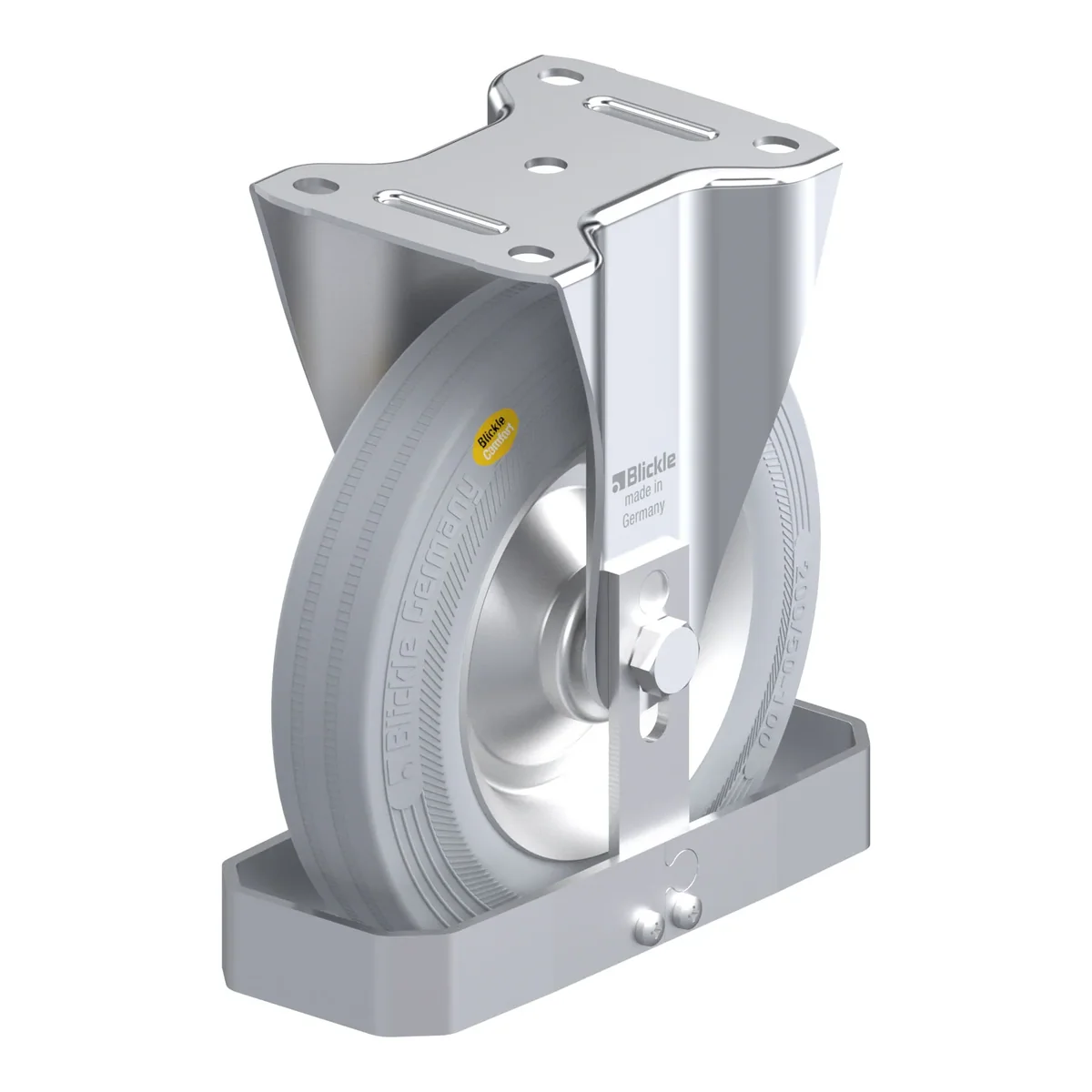

B-RD 202R-VLI-FS
Fiksni točkić, Blickle, Made in Germany
Ukratko: B-RD 202R-VLI-FS je fiksni točkić Blickle promjera 200 mm, širine 50 mm, nosivosti 350 kg pri 4 km/h (statički 875 kg). Ukupna visina je 235 mm. Cijena je 185.82 KM s PDV-om.
Pressed steel fixed castor, medium duty design, with top plate fitting, steel foot guard, wheel, with 'Blickle Comfort' two-component solid rubber tyres, with pressed steel rim, non-marking, grey
185.82 KM
Cijena s PDV-om. Dostava širom Bosne i Hercegovine.
Veće količine: posebna ponuda na upit, +387 62 924 140, info@mhtrade.co.ba.
Tehnički podaci
| Šifra artikla | 938372 |
|---|---|
| EAN | 4047526393274 |
| Promjer točka | 200 mm |
| Širina točka | 50 mm |
| Ukupna visina | 235 mm |
| Nosivost pri 4 km/h | 350 kg |
| Statička nosivost | 875 kg |
| Veličina ploče | 140 x 110 mm |
| Razmak rupa | 105.0 x 80.0 mm |
| Ne ostavlja tragove | da |
Nosač
- pressed steel, zinc-plated, blue-passivated, Cr6-free
Točak
- tyre: two-component solid rubber "Blickle Comfort", hardness 56 Shore A, colour grey
- rim: pressed steel, strong rim structure with tubular steel hub, bolted or pressed, zinc-plated, blue-passivated, Cr6-free
Dodatne karakteristike
- chemical resistance to many aggressive substances, except oils
- operating temperature: -25 °C to +80 °C, reduced load capacity over +60 °C
