Šifra 43174
B-POEV 200R

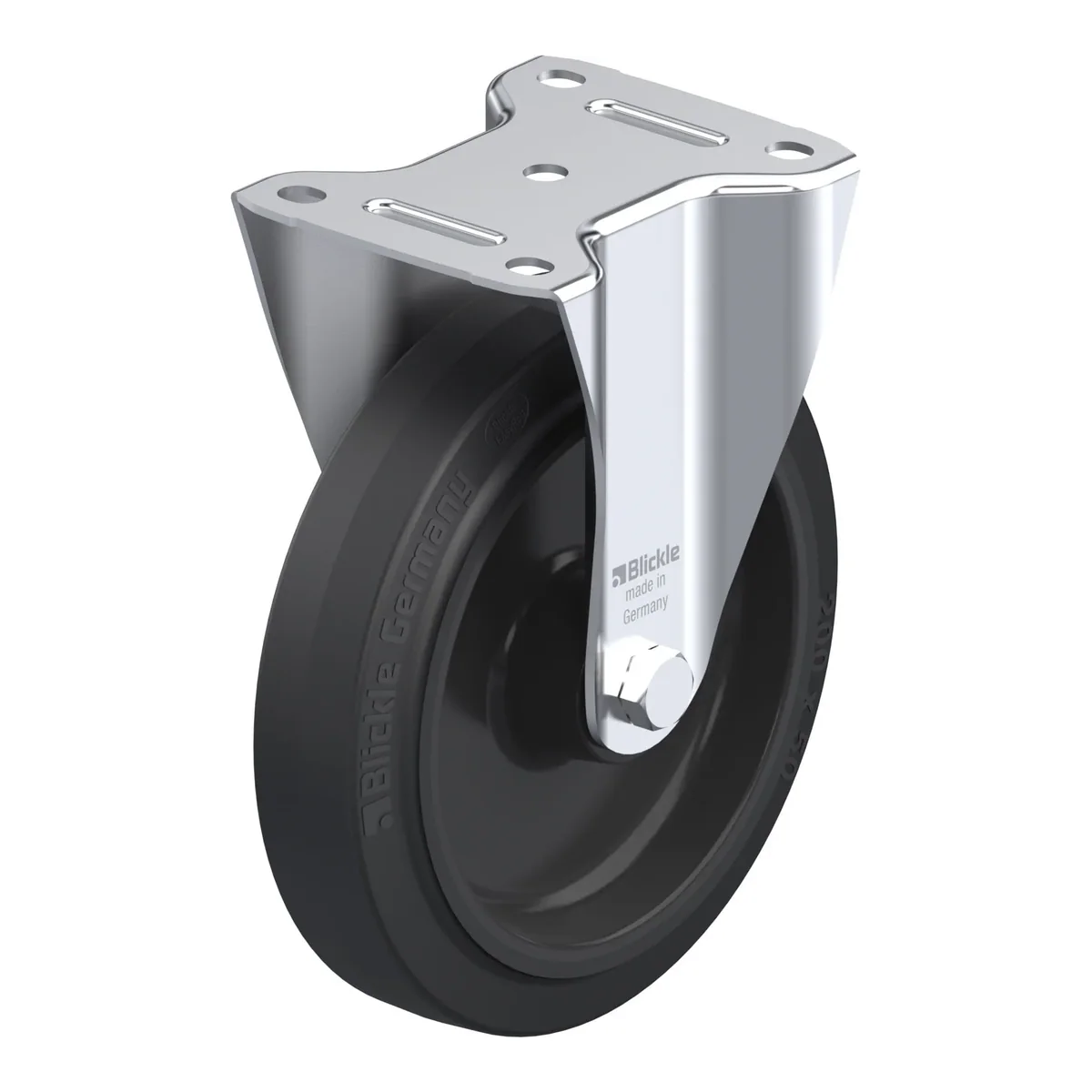

Fiksni točkić, Blickle, Made in Germany
Ukratko: B-POEV 200R je fiksni točkić Blickle promjera 200 mm, širine 50 mm, nosivosti 400 kg pri 4 km/h (statički 1000 kg). Ukupna visina je 235 mm. Radi na temperaturi od -25 °C do 80 °C. Cijena je 108.44 KM s PDV-om.
Pressed steel fixed castor, medium duty design, with top plate fitting, heavy duty wheel, with 'Blickle EasyRoll' elastic solid rubber tyres, with nylon wheel centre
108.44 KM
Cijena s PDV-om. Dostava širom Bosne i Hercegovine.
Veće količine: posebna ponuda na upit, +387 62 924 140, info@mhtrade.co.ba.
Tehnički podaci
| Šifra artikla | 43174 |
|---|---|
| EAN | 4047526043179 |
| Promjer točka | 200 mm |
| Širina točka | 50 mm |
| Ukupna visina | 235 mm |
| Nosivost pri 4 km/h | 400 kg |
| Statička nosivost | 1000 kg |
| Veličina ploče | 140 x 110 mm |
| Razmak rupa | 105.0 x 80.0 mm |
| Tvrdoća gazišta | 65 Shore A |
| Radna temperatura | -25 °C do 80 °C |
| Težina | 1.9 kg |
Nosač
- pressed steel, zinc-plated, blue-passivated, Cr6-free
Točak
- tyre: high-quality elastic solid rubber "Blickle EasyRoll" in smooth rolling quality, hardness 65 Shore A, colour black
- wheel centre: high-quality nylon 6, impact resistant, colour black
Dodatne karakteristike
- high chemical resistance to many aggressive substances, except oils
- operating temperature: -25 °C to +80 °C, temporarily up to +100 °C, reduced load capacity over +35 °C
