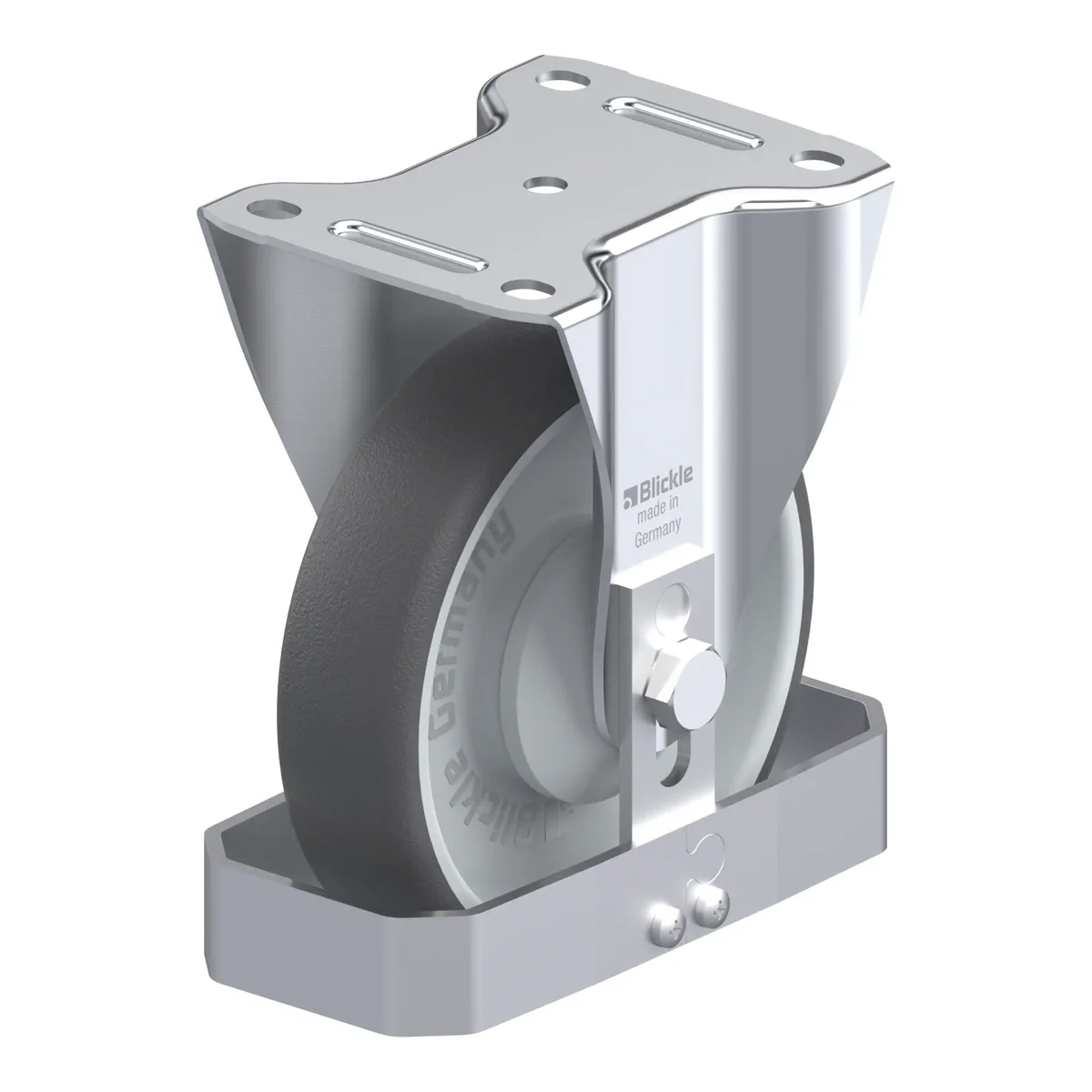

B-PATH 160KA-FS – fiksni točkić Blickle

Šifra 871583

B-PATH 160KA-FS

Fiksni točkić, Blickle, Made in Germany

Ukratko: B-PATH 160KA-FS je fiksni točkić Blickle promjera 160 mm, širine 40 mm, nosivosti 400 kg pri 4 km/h (statički 1000 kg). Ukupna visina je 195 mm. Cijena je 132.36 KM s PDV-om.

Pressed steel fixed castor, medium duty design, with top plate fitting, steel foot guard, wheel, with thermoplastic polyurethane tread, with nylon wheel centre, with synthetic thread guard, small

132.36 KM

Cijena s PDV-om. Dostava širom Bosne i Hercegovine.

Veće količine: posebna ponuda na upit, +387 62 924 140, info@mhtrade.co.ba.

Tehnički podaci

Šifra artikla871583
EAN4047526281496
Promjer točka160 mm
Širina točka40 mm
Ukupna visina195 mm
Nosivost pri 4 km/h400 kg
Statička nosivost1000 kg
Veličina ploče140 x 110 mm
Razmak rupa105.0 x 80.0 mm
Ne ostavlja tragoveda

Nosač

  • pressed steel, zinc-plated, blue-passivated, Cr6-free

Točak

  • tread: high-quality thermoplastic polyurethane (TPU), hardness 94 Shore A, colour dark grey, non-marking, non-staining
  • wheel centre: high-quality nylon 6, impact resistant, colour silver grey

Dodatne karakteristike

  • with synthetic thread guard, small
  • very high chemical resistance to many aggressive substances
  • operating temperature: -20 °C to +70 °C, temporarily up to +90 °C, reduced load capacity over +35 °C
