Šifra 754226

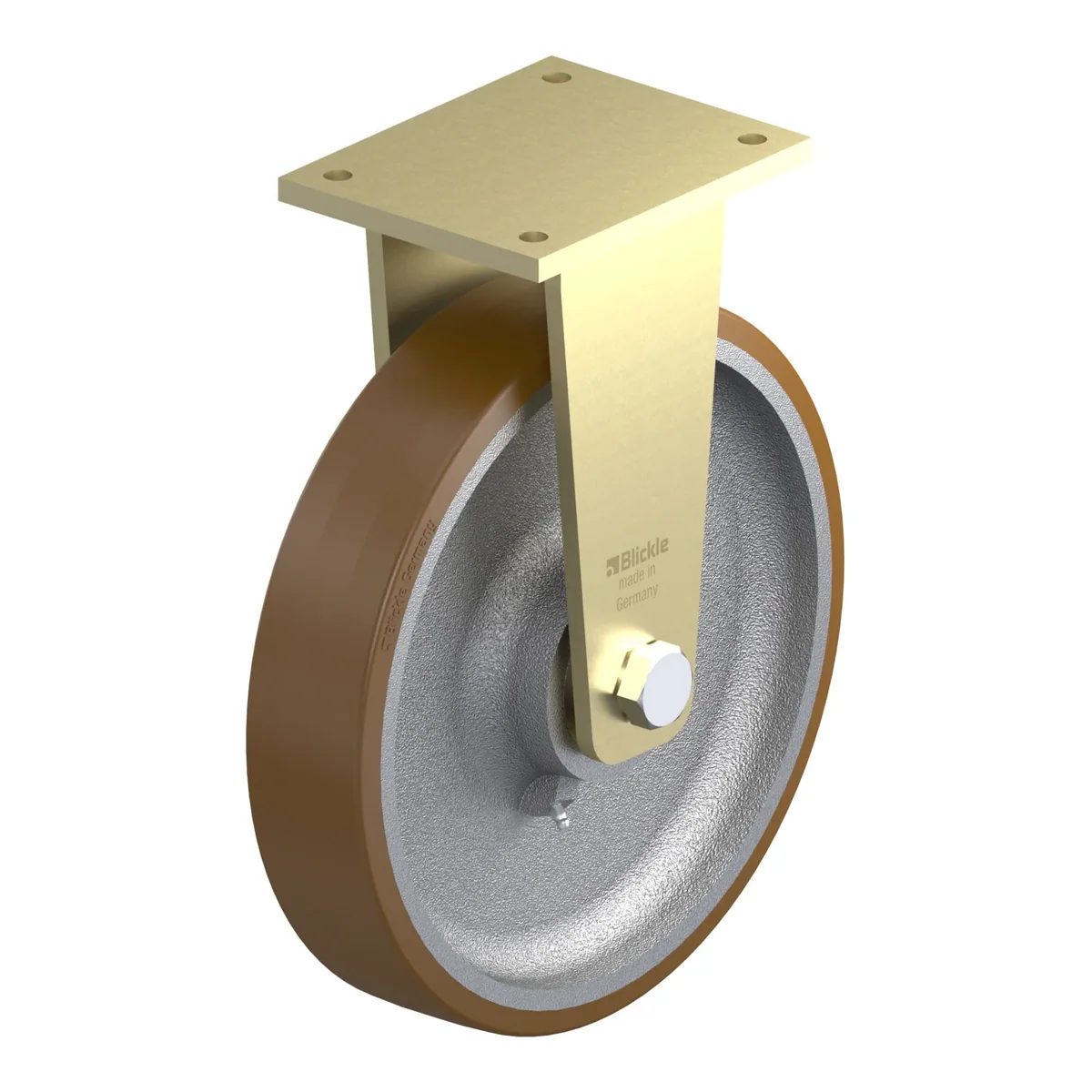

BS-GB 360K
Fiksni točkić, Blickle, Made in Germany
Ukratko: BS-GB 360K je fiksni točkić Blickle promjera 360 mm, širine 75 mm, nosivosti 2500 kg pri 4 km/h (statički 6250 kg). Ukupna visina je 430 mm. Cijena je 1933.02 KM s PDV-om.
Heavy duty welded steel fixed castor, heavy duty wheel, with Blickle Besthane® polyurethane tread, with cast iron wheel centre
1933.02 KM
Cijena s PDV-om. Dostava širom Bosne i Hercegovine.
Veće količine: posebna ponuda na upit, +387 62 924 140, info@mhtrade.co.ba.
Tehnički podaci
| Šifra artikla | 754226 |
|---|---|
| EAN | 4047526112509 |
| Promjer točka | 360 mm |
| Širina točka | 75 mm |
| Ukupna visina | 430 mm |
| Nosivost pri 4 km/h | 2500 kg |
| Statička nosivost | 6250 kg |
| Veličina ploče | 200 x 160 mm |
| Razmak rupa | 165.0 x 130.0 mm |
| Ne ostavlja tragove | da |
Nosač
- particularly robust welded steel construction
- zinc-plated, yellow-passivated, Cr6-free
Točak
- tread: high-quality polyurethane elastomer Blickle Besthane®, hardness 92 Shore A, colour brown, non-marking, non-staining
- wheel centre: rugged grey cast iron, with grease nipple from wheel Ø 150 mm, lacquered, colour silver
Dodatne karakteristike
- high chemical resistance to many aggressive substances
- operating temperature: -20 °C to +70 °C, temporarily up to +90 °C, reduced load capacity over +40 °C
