BS-P 410K – fiksni točkić Blickle

Šifra 40592

BS-P 410K

Fiksni točkić, Blickle, Made in Germany

Ukratko: BS-P 410K je fiksni točkić Blickle promjera 400 mm, širine 100 mm, nosivosti 350 kg pri 4 km/h (statički 875 kg). Ukupna visina je 470 mm. Cijena je 558.39 KM s PDV-om.

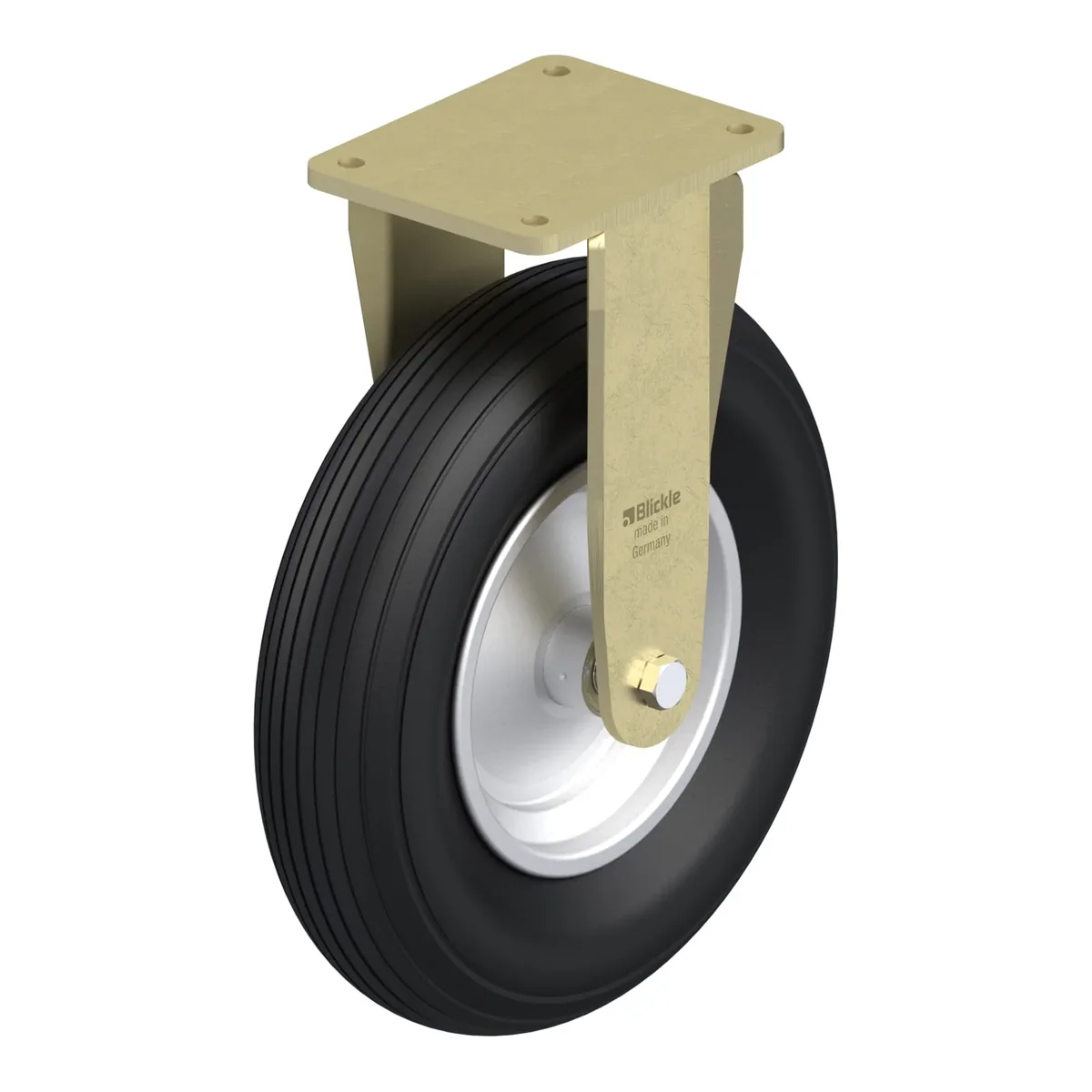

Heavy duty welded steel fixed castor, wheel, with pneumatic tyre, with pressed steel rim

558.39 KM

Cijena s PDV-om. Dostava širom Bosne i Hercegovine.

Veće količine: posebna ponuda na upit, +387 62 924 140, info@mhtrade.co.ba.

Tehnički podaci

Šifra artikla40592
EAN4047526040598
Promjer točka400 mm
Širina točka100 mm
Ukupna visina470 mm
Nosivost pri 4 km/h350 kg
Statička nosivost875 kg
Veličina ploče200 x 160 mm
Razmak rupa165.0 x 130.0 mm

Nosač

  • particularly robust welded steel construction
  • zinc-plated, yellow-passivated, Cr6-free

Točak

  • tyre: pneumatic tyre with ribbed profile, hardness 60 Shore A, colour black, 4-ply rating
  • rim: pressed steel, with welded tubular steel hub
  • lacquered, colour silver
  • swivel castors with brakes lose brake force if the tyre pressure is too low

Dodatne karakteristike

  • chemical resistance to many aggressive substances, except oils
  • operating temperature: -20 °C to +50 °C
  • the wheel and tyre dimensions provided here apply to new tyres that are not bearing a load. Their width and diameter may change when they are in use.
  • speeds up to 16 km/h possible for wheels with ball bearing and reduced load capacity
