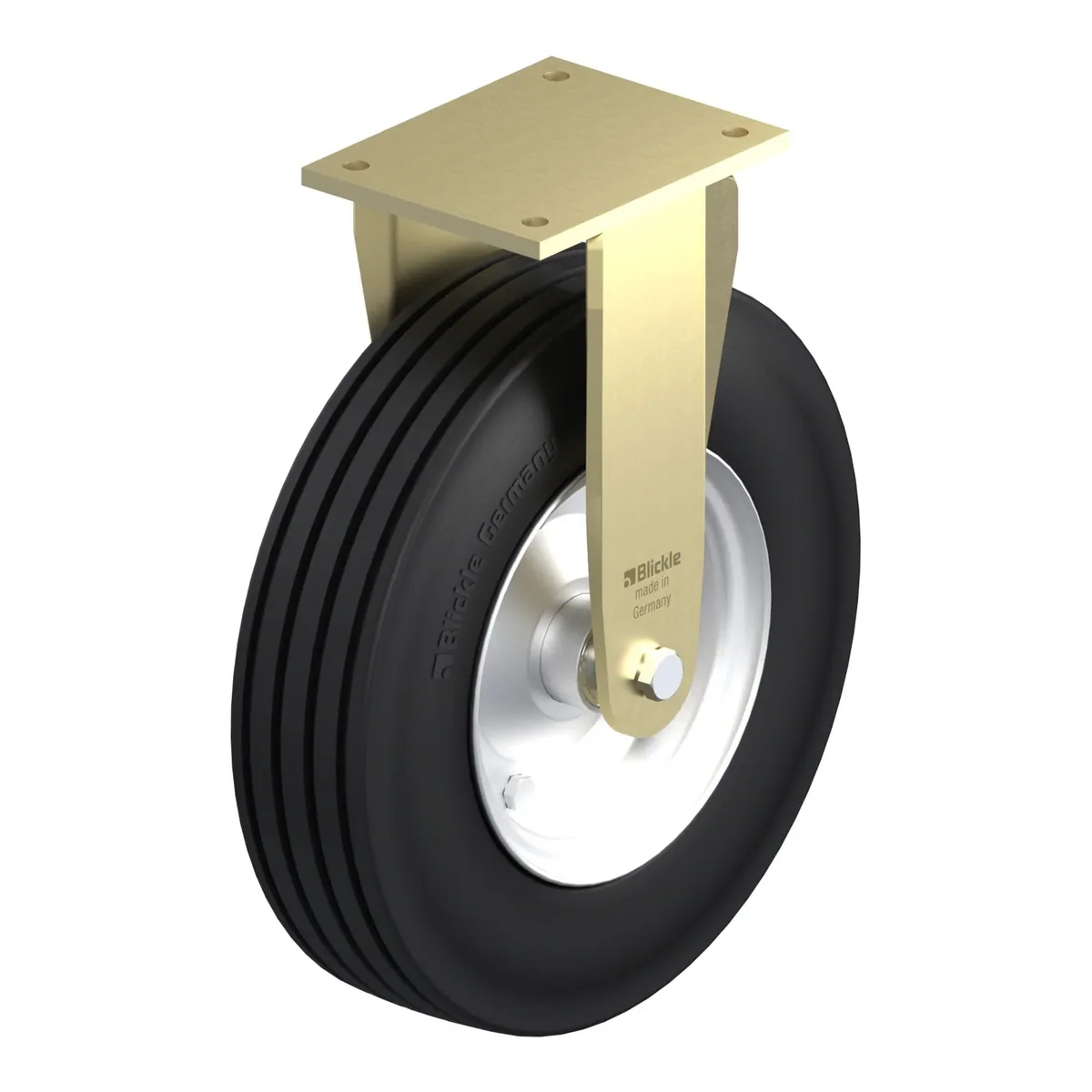

Šifra 625533
BS-VLE 405K
Fiksni točkić, Blickle, Made in Germany
Ukratko: BS-VLE 405K je fiksni točkić Blickle promjera 405 mm, širine 105 mm, nosivosti 950 kg pri 4 km/h (statički 2375 kg). Ukupna visina je 473 mm. Cijena je 1038.61 KM s PDV-om.
Heavy duty welded steel fixed castor, heavy duty wheel, with elastic solid rubber tyre
1038.61 KM
Cijena s PDV-om. Dostava širom Bosne i Hercegovine.
Veće količine: posebna ponuda na upit, +387 62 924 140, info@mhtrade.co.ba.
Tehnički podaci
| Šifra artikla | 625533 |
|---|---|
| EAN | 4047526625535 |
| Promjer točka | 405 mm |
| Širina točka | 105 mm |
| Ukupna visina | 473 mm |
| Nosivost pri 4 km/h | 950 kg |
| Statička nosivost | 2375 kg |
| Veličina ploče | 200 x 160 mm |
| Razmak rupa | 165.0 x 130.0 mm |
Nosač
- particularly robust welded steel construction
- zinc-plated, yellow-passivated, Cr6-free
Točak
- tyre: super-elastic solid rubber, hardness 70 Shore A, colour black
- 3-component tyre, highly-elastic cushion layer, abrasion-resistant tread
- rim: heavy pressed steel, zinc-plated, blue-passivated, Cr6-free
Dodatne karakteristike
- chemical resistance to many aggressive substances, except oils
- operating temperature: -20 °C to +80 °C, temporarily up to +100 °C, reduced load capacity over +60 °C
- puncture-proof, maintenance-free
