Šifra 591453
BS-GSPO 101K

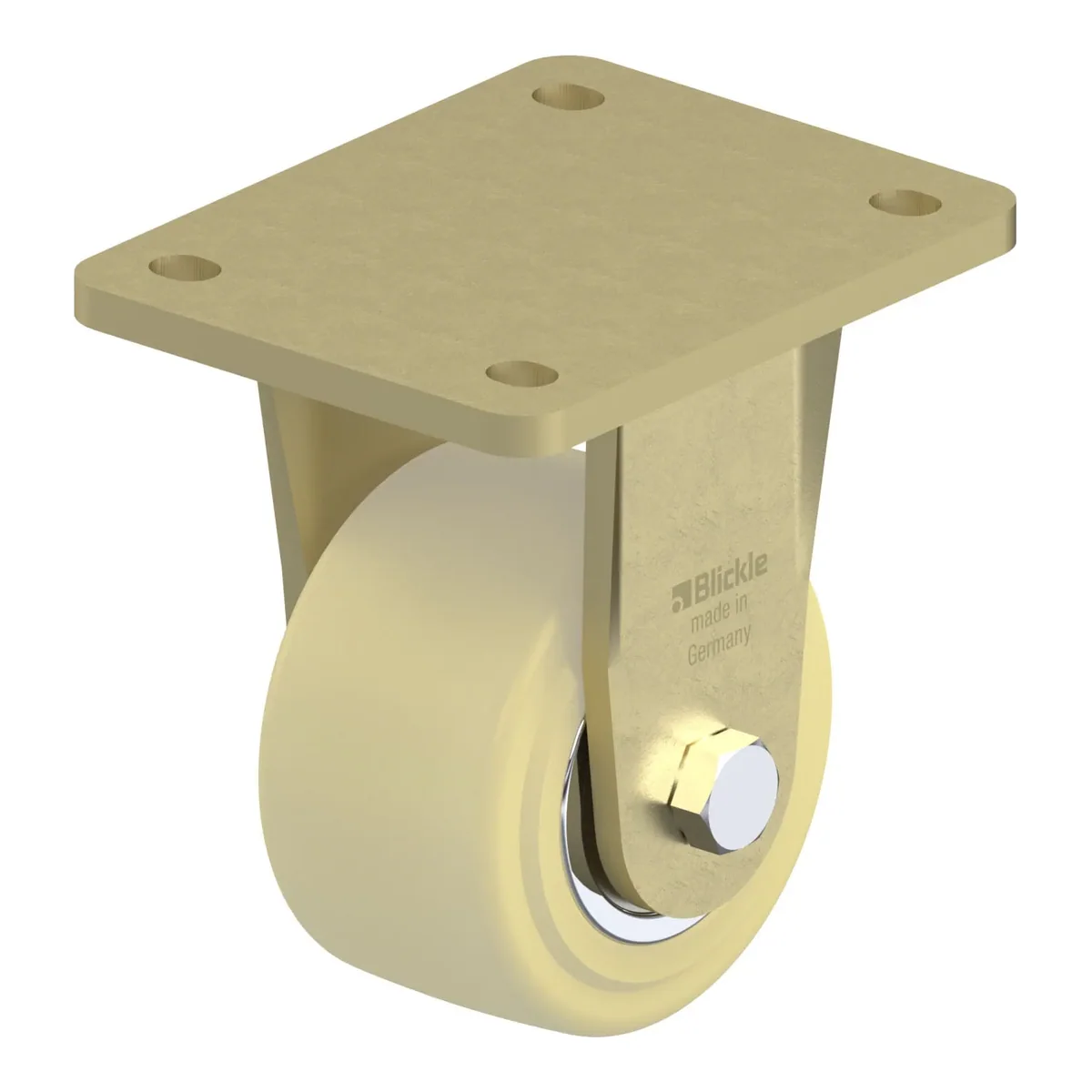

Fiksni točkić, Blickle, Made in Germany
Ukratko: BS-GSPO 101K je fiksni točkić Blickle promjera 100 mm, širine 55 mm, nosivosti 1500 kg pri 4 km/h (statički 3750 kg). Ukupna visina je 145 mm. Cijena je 221.76 KM s PDV-om.
Heavy duty welded steel fixed castor, heavy duty wheel made of compressed cast nylon
221.76 KM
Cijena s PDV-om. Dostava širom Bosne i Hercegovine.
Veće količine: posebna ponuda na upit, +387 62 924 140, info@mhtrade.co.ba.
Tehnički podaci
| Šifra artikla | 591453 |
|---|---|
| EAN | 4047526591458 |
| Promjer točka | 100 mm |
| Širina točka | 55 mm |
| Ukupna visina | 145 mm |
| Nosivost pri 4 km/h | 1500 kg |
| Statička nosivost | 3750 kg |
| Veličina ploče | 140 x 110 mm |
| Razmak rupa | 105.0 x 80.0 mm |
| Ne ostavlja tragove | da |
Nosač
- particularly robust welded steel construction
- zinc-plated, yellow-passivated, Cr6-free
Točak
- high-quality cast nylon, reaction-injected, impact resistant, hardness 80 Shore D, colour natural beige
Dodatne karakteristike
- high chemical resistance to many aggressive substances
- reduced moisture absorption
- operating temperature: -20 °C to +80 °C, reduced load capacity over +35 °C
- consider the surface pressure on sensitive floors due to high point loads
