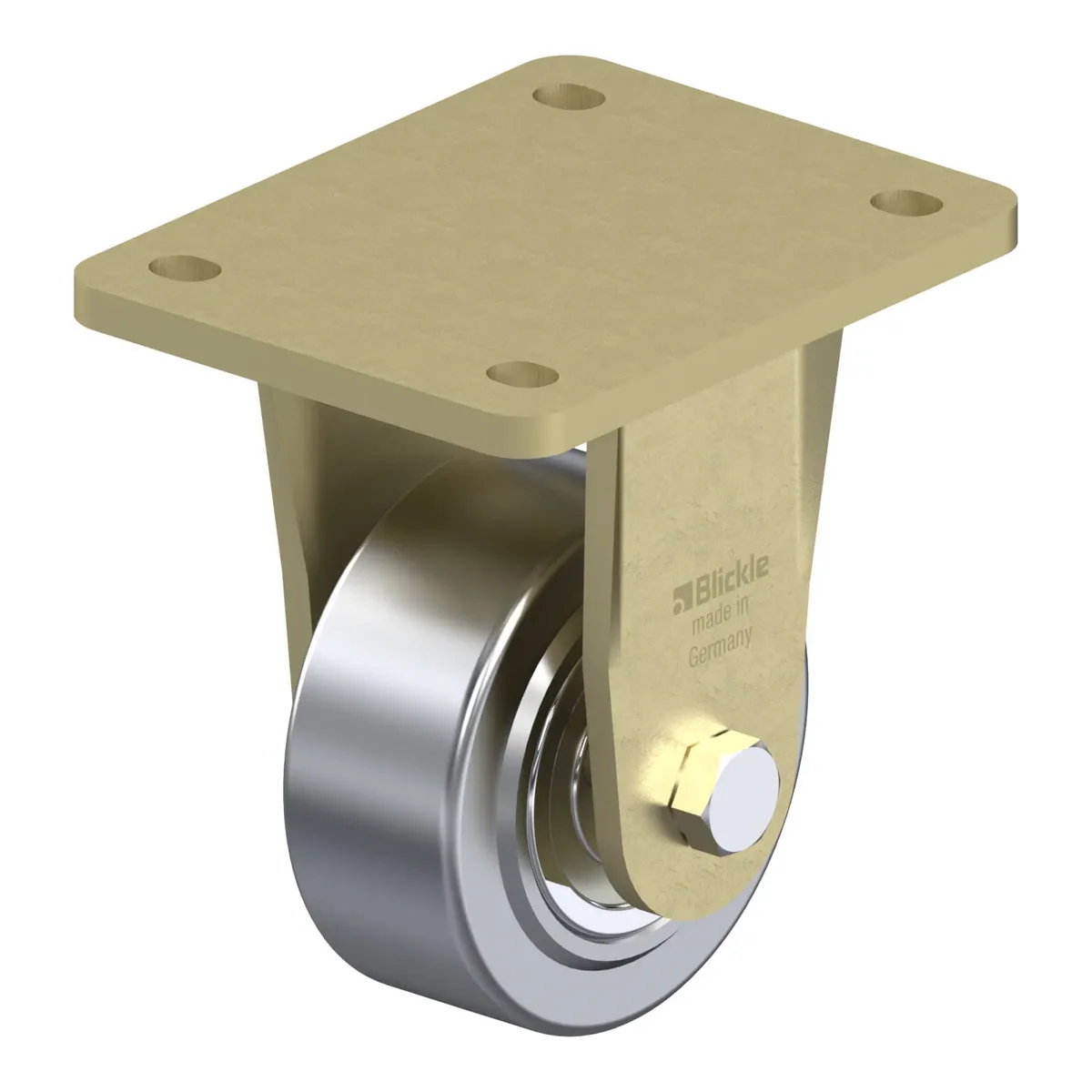

Šifra 608752
BS-SVS 100K
Fiksni točkić, Blickle, Made in Germany
Ukratko: BS-SVS 100K je fiksni točkić Blickle promjera 100 mm, širine 40 mm, nosivosti 1700 kg pri 4 km/h (statički 4250 kg). Ukupna visina je 145 mm. Cijena je 218.30 KM s PDV-om.
Heavy duty welded steel fixed castor, extra heavy duty solid steel wheel
218.30 KM
Cijena s PDV-om. Dostava širom Bosne i Hercegovine.
Veće količine: posebna ponuda na upit, +387 62 924 140, info@mhtrade.co.ba.
Tehnički podaci
| Šifra artikla | 608752 |
|---|---|
| EAN | 4047526608750 |
| Promjer točka | 100 mm |
| Širina točka | 40 mm |
| Ukupna visina | 145 mm |
| Nosivost pri 4 km/h | 1700 kg |
| Statička nosivost | 4250 kg |
| Veličina ploče | 140 x 110 mm |
| Razmak rupa | 105.0 x 80.0 mm |
| Ne ostavlja tragove | da |
| ESD zaštita | da |
Nosač
- particularly robust welded steel construction
- zinc-plated, yellow-passivated, Cr6-free
Točak
- heat-treatable steel, hardness 190–230 HB, slightly crowned tread
Dodatne karakteristike
- chemical resistance to many aggressive substances
- operating temperature: -20 °C to +120 °C
- consider the surface pressure on sensitive floors due to high point loads
