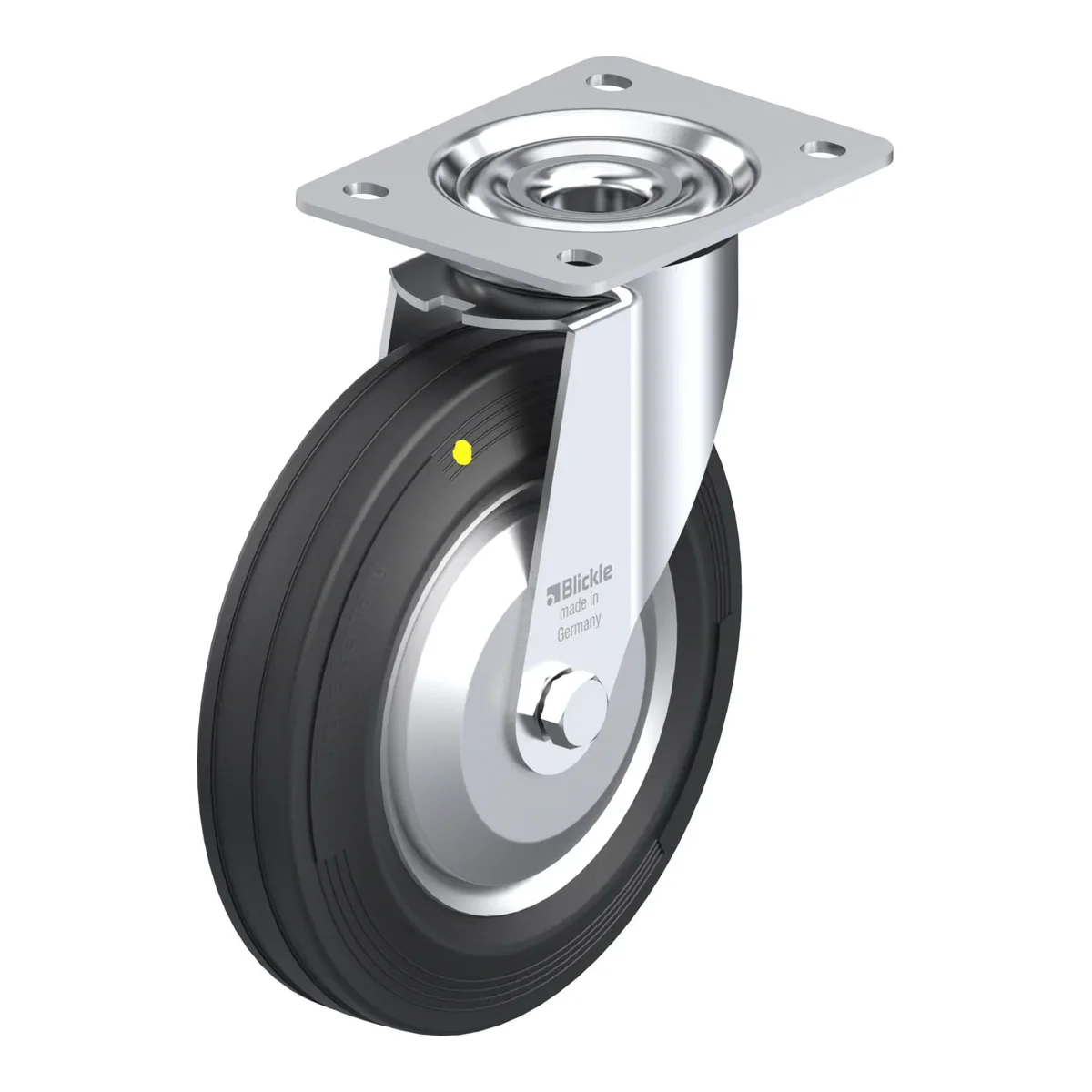

LE-VE 200R-EL-FA – okretni točkić Blickle

Šifra 695445

LE-VE 200R-EL-FA

Okretni točkić, Blickle, Made in Germany

Ukratko: LE-VE 200R-EL-FA je okretni točkić Blickle promjera 200 mm, širine 50 mm, nosivosti 205 kg pri 4 km/h (statički 512.5 kg). Ukupna visina je 235 mm. Cijena je 125.80 KM s PDV-om.

Pressed steel swivel castor, with top plate fitting, wheel, with standard solid rubber tyre, with pressed steel rim, with steel thread guard, electrically conductive

125.80 KM

Cijena s PDV-om. Dostava širom Bosne i Hercegovine.

Veće količine: posebna ponuda na upit, +387 62 924 140, info@mhtrade.co.ba.

Tehnički podaci

Šifra artikla695445
EAN4047526695446
Promjer točka200 mm
Širina točka50 mm
Ukupna visina235 mm
Nosivost pri 4 km/h205 kg
Statička nosivost512.5 kg
Veličina ploče140 x 110 mm
Razmak rupa105.0 x 80.0 mm
Offset54 mm
ESD zaštitada

Nosač

  • pressed steel, zinc-plated, blue-passivated, Cr6-free
  • double ball bearing in the swivel head
  • swivel head seal
  • minimum swivel head play and smooth rolling characteristic and increased service life due to the special dynamic Blickle riveting process

Točak

  • tyre: standard solid rubber, hardness 80 Shore A, colour black
  • rim: pressed steel, zinc-plated, blue-passivated, Cr6-free

Dodatne karakteristike

  • chemical resistance to many aggressive substances, except oils
  • operating temperature: -25 °C to +80 °C, reduced load capacity over +60 °C
  • electrical conductivity (ohmic resistance) ≤ 104Ω
