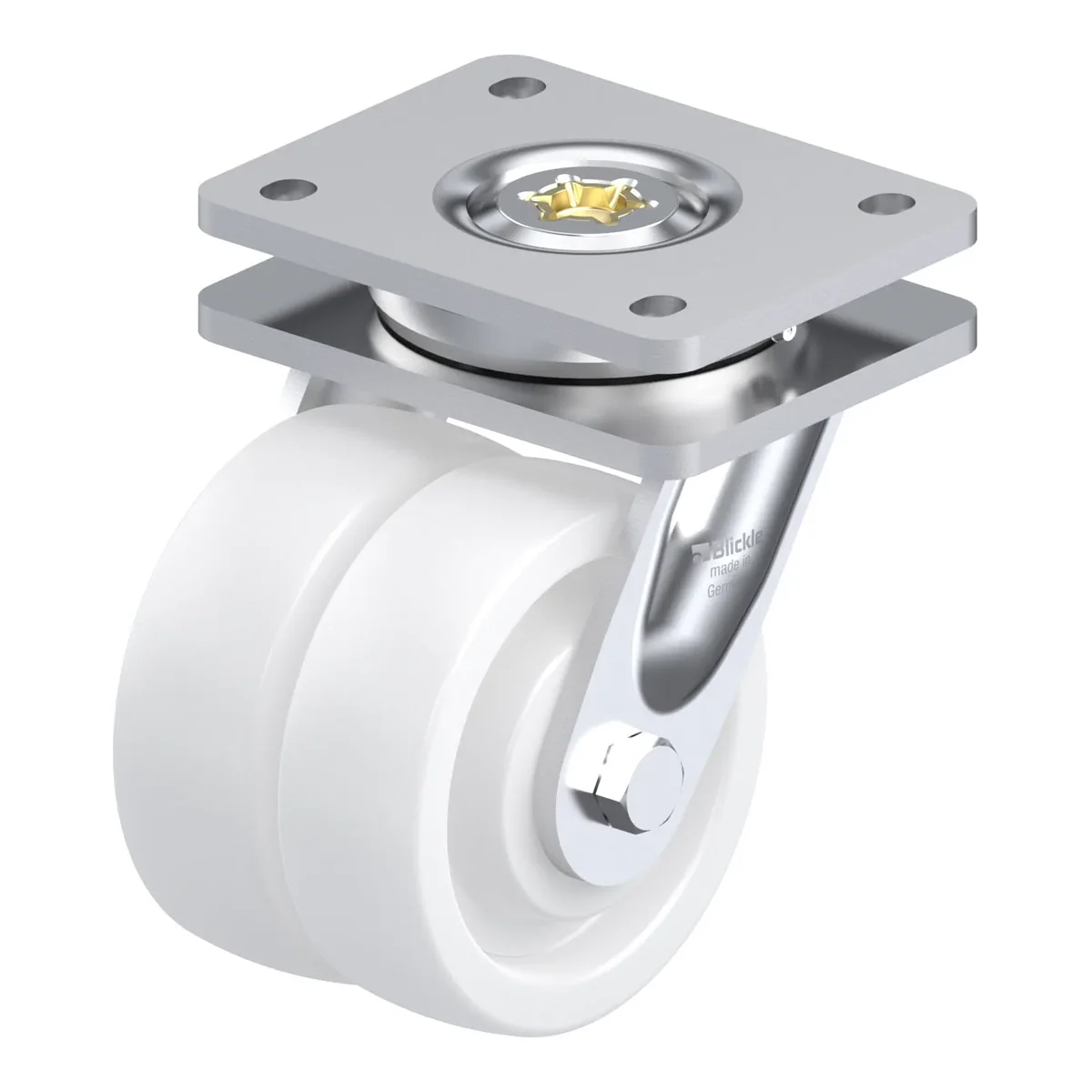

LOD-SPO 125K – dvostruki točkić Blickle

Šifra 610899

LOD-SPO 125K

Dvostruki točkić, Blickle, Made in Germany

Ukratko: LOD-SPO 125K je dvostruki točkić Blickle promjera 125 mm, širine 40 mm, nosivosti 1200 kg pri 4 km/h (statički 3000 kg). Ukupna visina je 170 mm. Cijena je 362.28 KM s PDV-om.

Heavy duty welded steel twin wheel swivel castor, nylon heavy duty wheel

362.28 KM

Cijena s PDV-om. Dostava širom Bosne i Hercegovine.

Veće količine: posebna ponuda na upit, +387 62 924 140, info@mhtrade.co.ba.

Tehnički podaci

Šifra artikla610899
EAN4047526610890
Promjer točka125 mm
Širina točka40 mm
Ukupna visina170 mm
Nosivost pri 4 km/h1200 kg
Statička nosivost3000 kg
Veličina ploče140 x 110 mm
Razmak rupa105.0 x 80.0 mm
Offset50 mm
Ne ostavlja tragoveda

Nosač

  • solid welded steel construction, zinc-plated, blue-passivated, Cr6-free
  • double ball bearing in the swivel head
  • four specially-shaped, hardened bearing seatsfor additional strength
  • bolted and secured welded central kingpin, extremely strong
  • swivel head seal with labyrinth design
  • grease nipple

Točak

  • high-quality nylon 6, impact resistant, hardness 70 Shore D, extremely robust heavy-duty version, colour natural white

Dodatne karakteristike

  • high chemical resistance to many aggressive substances
  • operating temperature: -20 °C to +80 °C, reduced load capacity over +35 °C
