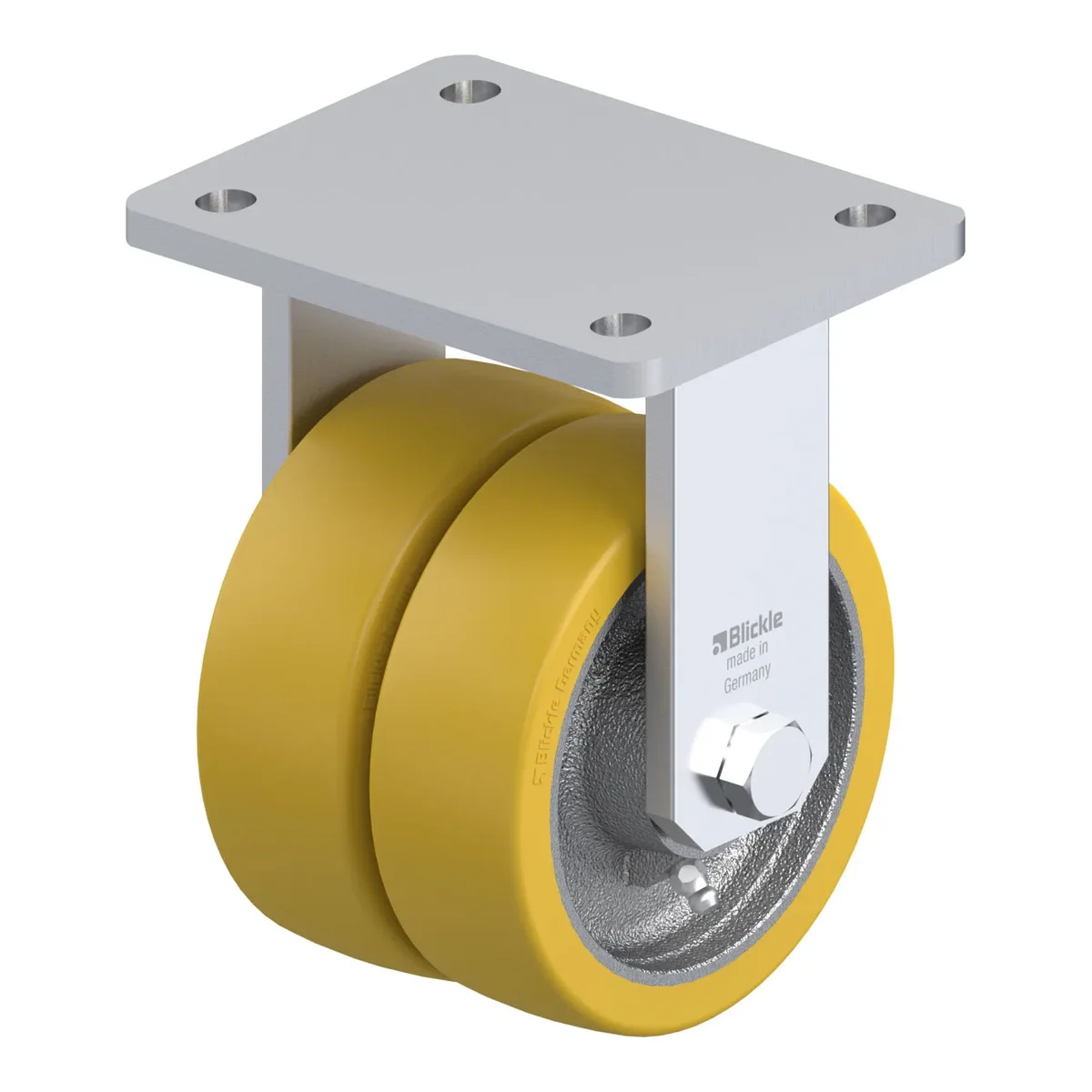

BOD-GTH 125K – dvostruki točkić Blickle

Šifra 616565

BOD-GTH 125K

Dvostruki točkić, Blickle, Made in Germany

Ukratko: BOD-GTH 125K je dvostruki točkić Blickle promjera 125 mm, širine 40 mm, nosivosti 990 kg pri 4 km/h (statički 2475 kg). Ukupna visina je 170 mm. Cijena je 341.25 KM s PDV-om.

Heavy duty welded steel twin wheel fixed castor, heavy duty wheel, with Blickle Extrathane® polyurethane tread, with cast iron wheel centre

341.25 KM

Cijena s PDV-om. Dostava širom Bosne i Hercegovine.

Veće količine: posebna ponuda na upit, +387 62 924 140, info@mhtrade.co.ba.

Tehnički podaci

Šifra artikla616565
EAN4047526616564
Promjer točka125 mm
Širina točka40 mm
Ukupna visina170 mm
Nosivost pri 4 km/h990 kg
Statička nosivost2475 kg
Veličina ploče140 x 110 mm
Razmak rupa105.0 x 80.0 mm
Ne ostavlja tragoveda

Nosač

  • solid welded steel construction, zinc-plated, blue-passivated, Cr6-free

Točak

  • tread: high-quality polyurethane elastomer Blickle Extrathane®, hardness 92 Shore A, colour yellow, non-marking, non-staining
  • wheel centre: rugged grey cast iron, lacquered, colour silver

Dodatne karakteristike

  • high chemical resistance to many aggressive substances
  • operating temperature: -20 °C to +70 °C, temporarily up to +90 °C, reduced load capacity over +40 °C
