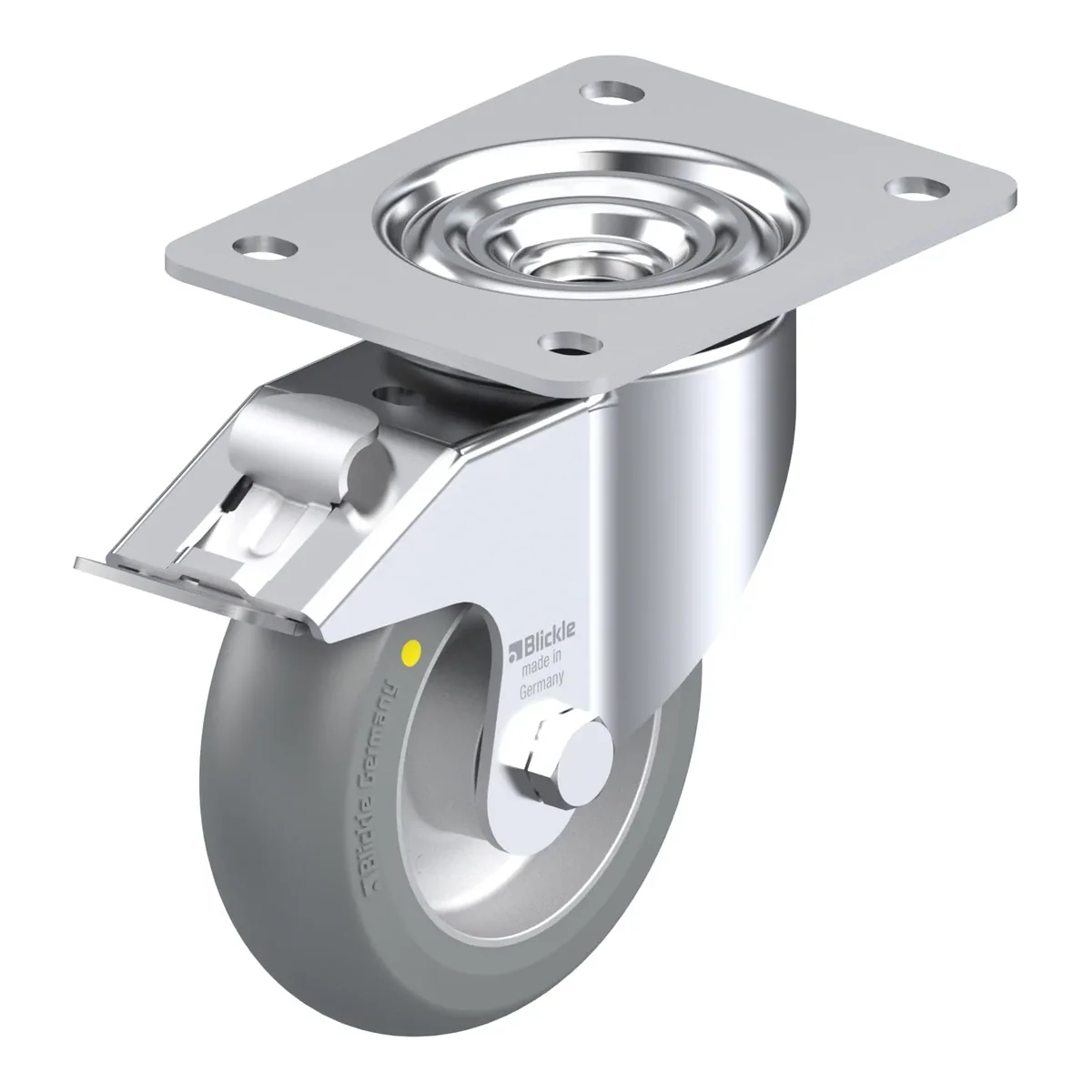

LK-ALTH 125K-3-FI-AS-CO – okretni točkić Blickle

Šifra 936611

LK-ALTH 125K-3-FI-AS-CO

Okretni točkić, Blickle, Made in Germany

Ukratko: LK-ALTH 125K-3-FI-AS-CO je okretni točkić Blickle promjera 125 mm, širine 40 mm, nosivosti 350 kg pri 4 km/h (statički 875 kg). Ukupna visina je 155 mm. Cijena je 172.41 KM s PDV-om.

Pressed steel swivel castor, Heavy duty design, with brake system 'stop-fix', heavy duty wheel, with Blickle Extrathane® polyurethane tread, with aluminium wheel centre, with extra crowned running tread, antist atic

172.41 KM

Cijena s PDV-om. Dostava širom Bosne i Hercegovine.

Veće količine: posebna ponuda na upit, +387 62 924 140, info@mhtrade.co.ba.

Tehnički podaci

Šifra artikla936611
EAN4047526390341
Promjer točka125 mm
Širina točka40 mm
Ukupna visina155 mm
Nosivost pri 4 km/h350 kg
Statička nosivost875 kg
Veličina ploče140 x 110 mm
Razmak rupa105.0 x 80.0 mm
Offset42 mm
Ne ostavlja tragoveda
ESD zaštitada

Nosač

  • strong pressed steel, zinc-plated, blue-passivated, Cr6-free
  • double ball bearing in the swivel head
  • strong central kingpin (from wheel Ø 125x50 mm)
  • swivel head seal
  • minimum swivel head play and smooth rolling characteristic and increased service life due to the special dynamic Blickle riveting process

Točak

  • tread: high-quality polyurethane elastomer Blickle Extrathane®, hardness 92 Shore A, colour grey, non-marking, non-staining
  • wheel centre: die-cast aluminium, colour silver grey

Dodatne karakteristike

  • high chemical resistance to many aggressive substances
  • operating temperature: -20 °C to +70 °C, temporarily up to +90 °C, reduced load capacity over +40 °C
  • electrical conductivity (ohmic resistance) ≤ 107Ω
