Šifra 757014
HRIG-POA 72G

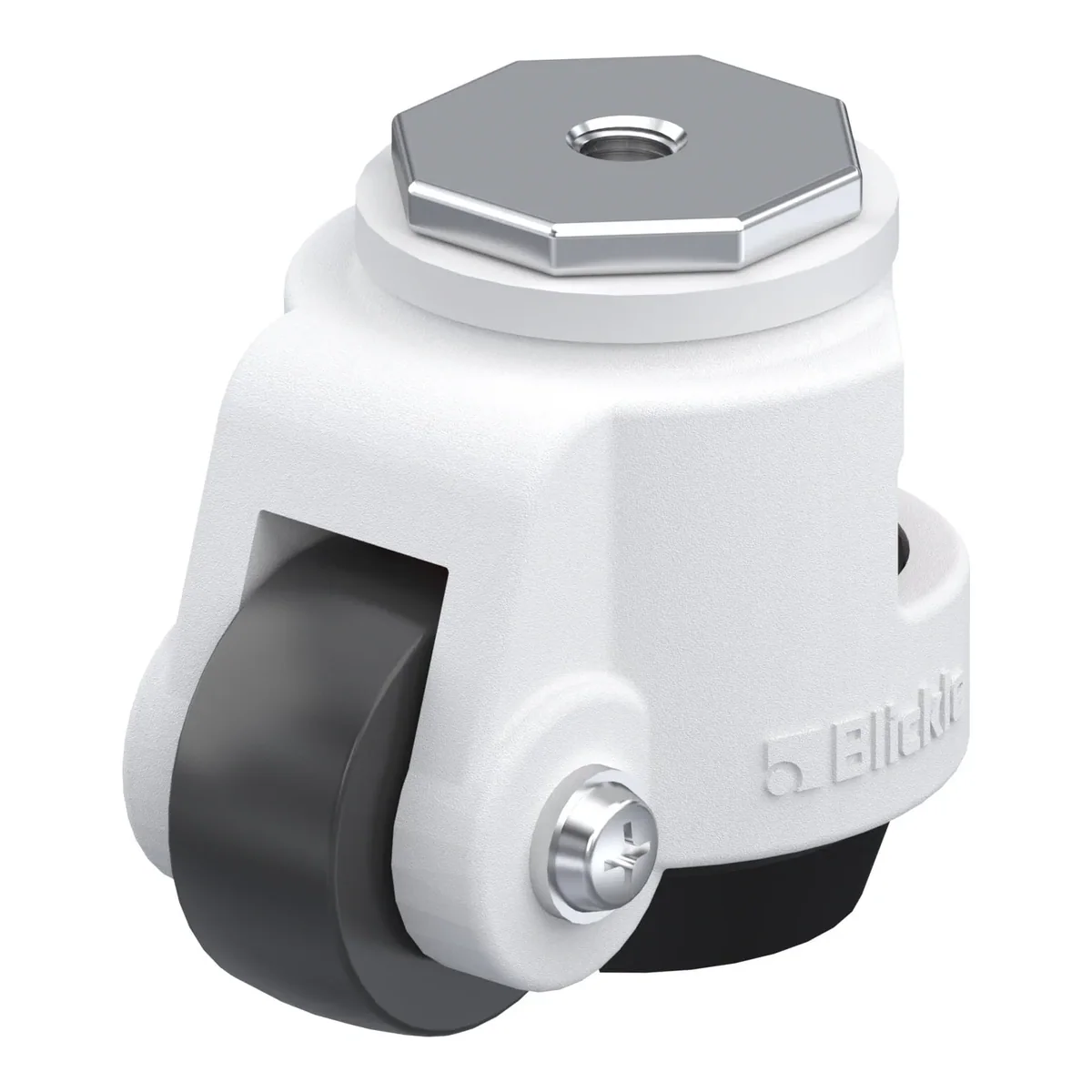

Nivelirni točkić, Blickle, Made in Germany
Ukratko: HRIG-POA 72G je nivelirni točkić Blickle promjera 72 mm, širine 32 mm, nosivosti 750 kg pri 4 km/h (statički 1875 kg). Ukupna visina je 120 mm. Cijena je 135.94 KM s PDV-om.
Levelling castor, with integrated truck lock and bolt hole, nylon wheel
135.94 KM
Cijena s PDV-om. Dostava širom Bosne i Hercegovine.
Veće količine: posebna ponuda na upit, +387 62 924 140, info@mhtrade.co.ba.
Tehnički podaci
| Šifra artikla | 757014 |
|---|---|
| EAN | 4047526117535 |
| Promjer točka | 72 mm |
| Širina točka | 32 mm |
| Ukupna visina | 120 mm |
| Nosivost pri 4 km/h | 750 kg |
| Statička nosivost | 1875 kg |
| Offset | 52 mm |
| Ne ostavlja tragove | da |
Nosač
- die-cast aluminium, powder-coated, colour ivory
- sealed ball bearing in the swivel head
- hexagonal steel top plate
- female thread in bolt hole
- truck lock made of hard rubber
- height adjustment using wrench or integrated adjustment wheel
- steel parts zinc-plated, blue-passivated, Cr6-free
Točak
- high-quality nylon 6, impact resistant, hardness 70 Shore D, colour black
Dodatne karakteristike
- Load capacity determined under the following conditions:– speed: max. 1 km/h– temperature: +15 °C to +30 °C– hardness, horizontal tread without obstacles– route: A cooling off period of 15 minutes is required after a maximum of 50 m
