Šifra 757016
HRLHD-SPO 75K

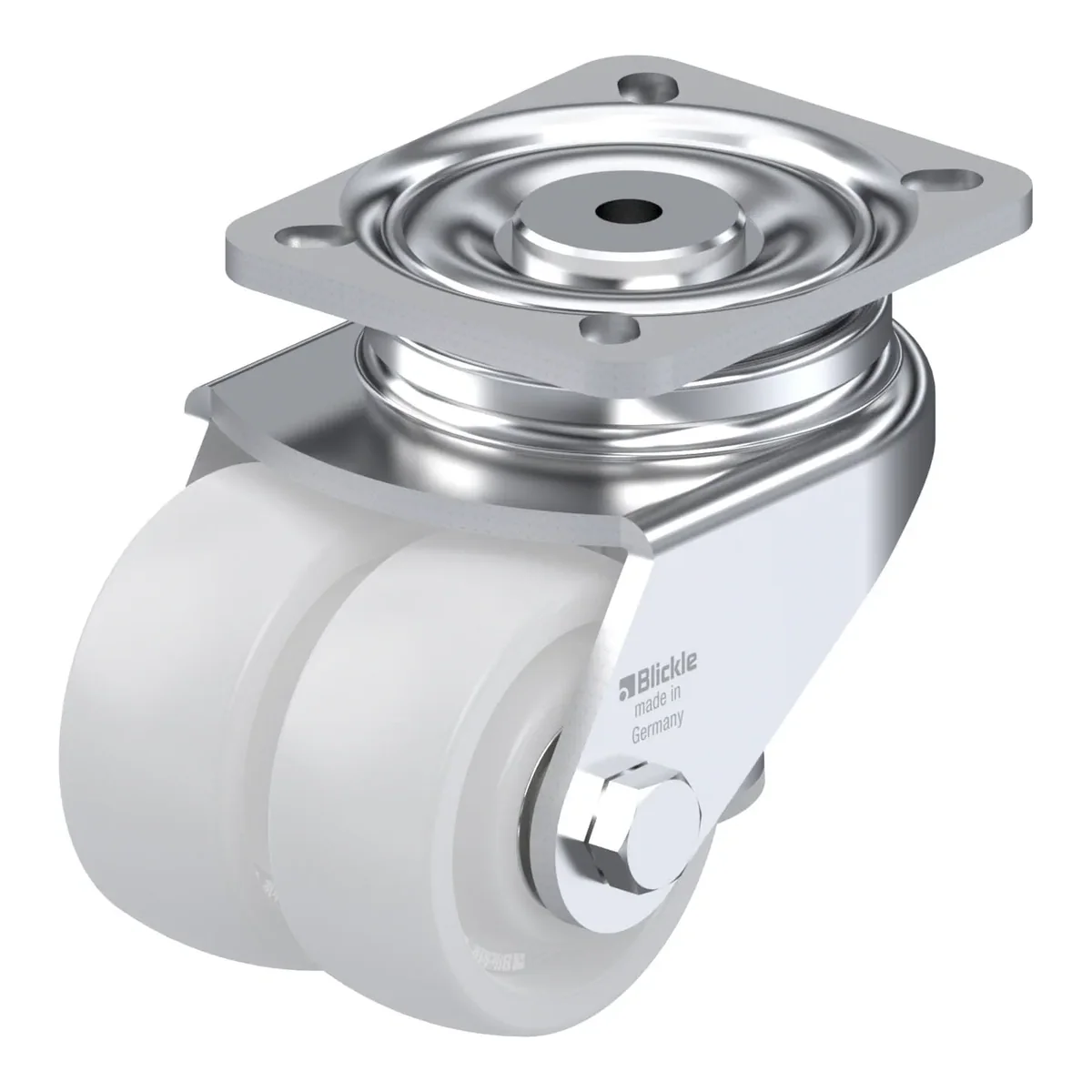

Nivelirni točkić, Blickle, Made in Germany
Ukratko: HRLHD-SPO 75K je nivelirni točkić Blickle promjera 75 mm, širine 32 mm, nosivosti 600 kg pri 4 km/h (statički 1500 kg). Ukupna visina je 108 mm. Cijena je 272.72 KM s PDV-om.
Levelling castor, with integrated truck lock and top plate fitting, nylon heavy duty wheel
272.72 KM
Cijena s PDV-om. Dostava širom Bosne i Hercegovine.
Veće količine: posebna ponuda na upit, +387 62 924 140, info@mhtrade.co.ba.
Tehnički podaci
| Šifra artikla | 757016 |
|---|---|
| EAN | 4047526117559 |
| Promjer točka | 75 mm |
| Širina točka | 32 mm |
| Ukupna visina | 108 mm |
| Nosivost pri 4 km/h | 600 kg |
| Statička nosivost | 1500 kg |
| Veličina ploče | 100 x 85 mm |
| Razmak rupa | 65.0 x 55.0 mm |
| Offset | 55 mm |
| Ne ostavlja tragove | da |
Nosač
- strong pressed steel, zinc-plated, blue-passivated, Cr6-free
- heavy fork and top plate
- bolted and secured central kingpin, extremely strong
- double ball bearing in the swivel head
- particularly resistant to shocks and impact due tofour specially-shaped, hardened bearing seats
- steel truck lock with rubber pad
- height adjustment with wrench
Točak
- high-quality nylon 6, impact resistant, hardness 70 Shore D, extremely robust heavy-duty version, colour natural white
Dodatne karakteristike
- high chemical resistance to many aggressive substances
- operating temperature: -20 °C to +80 °C, reduced load capacity over +35 °C
