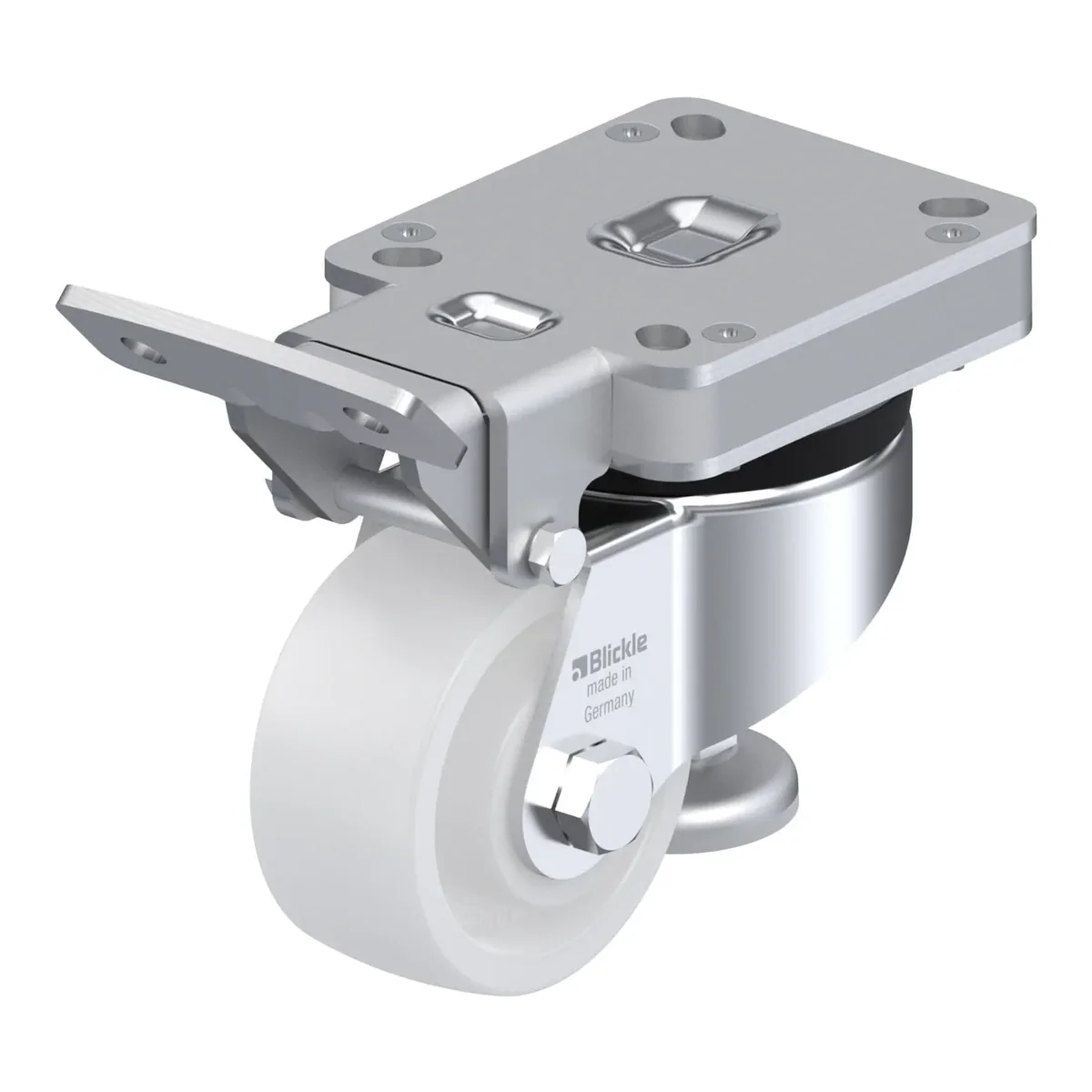

HRLK-SPO 80K – nivelirni točkić Blickle

Šifra 882265

HRLK-SPO 80K

Nivelirni točkić, Blickle, Made in Germany

Ukratko: HRLK-SPO 80K je nivelirni točkić Blickle promjera 80 mm, širine 37 mm, nosivosti 300 kg pri 4 km/h (statički 750 kg). Ukupna visina je 120 mm. Radi na temperaturi od -20 °C do 70 °C. Cijena je 232.88 KM s PDV-om.

Levelling castor, with fixed-position operating lever and integrated truck lock, with top plate fitting, nylon heavy duty wheel

232.88 KM

Cijena s PDV-om. Dostava širom Bosne i Hercegovine.

Veće količine: posebna ponuda na upit, +387 62 924 140, info@mhtrade.co.ba.

Tehnički podaci

Šifra artikla882265
EAN4047526216665
Promjer točka80 mm
Širina točka37 mm
Ukupna visina120 mm
Nosivost pri 4 km/h300 kg
Statička nosivost750 kg
Veličina ploče100 x 85 mm
Razmak rupa65.0 x 55.0 mm
Offset56 mm
Tvrdoća gazišta70 Shore A
Radna temperatura-20 °C do 70 °C
Težina2.2 kg
Ne ostavlja tragoveda

Nosač

  • strong pressed steel, zinc-plated, blue-passivated, Cr6-free
  • double ball bearing in the swivel head
  • swivel head seal
  • minimum swivel head play and smooth rolling characteristic and increased service life due to the special dynamic Blickle riveting process
  • steel truck lock with rubber pad
  • height adjustment with lever

Točak

  • high-quality nylon 6, impact resistant, hardness 70 Shore D, extremely robust heavy-duty version, colour natural white

Dodatne karakteristike

  • high chemical resistance to many aggressive substances
  • operating temperature: -20 °C to +80 °C, reduced load capacity over +35 °C
