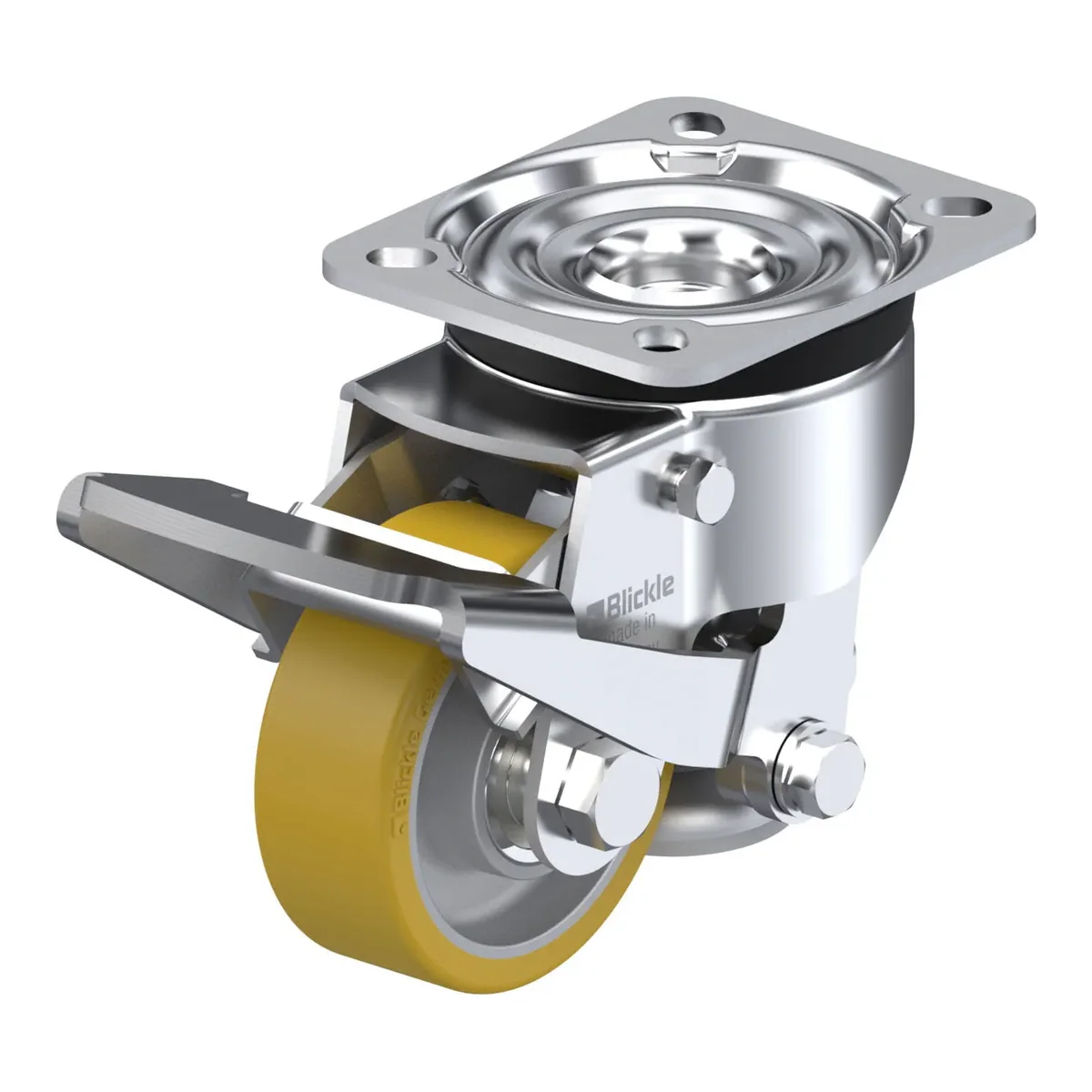

HRLK-ALTH 80K-HN – nivelirni točkić Blickle

Šifra 912428

HRLK-ALTH 80K-HN

Nivelirni točkić, Blickle, Made in Germany

Ukratko: HRLK-ALTH 80K-HN je nivelirni točkić Blickle promjera 80 mm, širine 30 mm, nosivosti 200 kg pri 4 km/h (statički 500 kg). Ukupna visina je 117 mm. Cijena je 404.81 KM s PDV-om.

Levelling castor, with swivelling operating and release levers, with top plate fitting, heavy duty wheel, with Blickle Extrathane® polyurethane tread, with aluminium wheel centre

404.81 KM

Cijena s PDV-om. Dostava širom Bosne i Hercegovine.

Veće količine: posebna ponuda na upit, +387 62 924 140, info@mhtrade.co.ba.

Tehnički podaci

Šifra artikla912428
EAN4047526341237
Promjer točka80 mm
Širina točka30 mm
Ukupna visina117 mm
Nosivost pri 4 km/h200 kg
Statička nosivost500 kg
Veličina ploče100 x 85 mm
Razmak rupa65.0 x 55.0 mm
Offset56 mm
Ne ostavlja tragoveda

Nosač

  • strong pressed steel, zinc-plated, blue-passivated, Cr6-free
  • double ball bearing in the swivel head
  • swivel head seal
  • minimum swivel head play and smooth rolling characteristic and increased service life due to the special dynamic Blickle riveting process
  • steel truck lock with rubber pad
  • height adjustment with swiveling operating and release lever

Točak

  • tread: high-quality polyurethane elastomer Blickle Extrathane®, hardness 92 Shore A, colour yellow, non-marking, non-staining
  • wheel centre: die-cast aluminium, colour silver grey

Dodatne karakteristike

  • high chemical resistance to many aggressive substances
  • operating temperature: -20 °C to +70 °C, temporarily up to +90 °C, reduced load capacity over +40 °C
