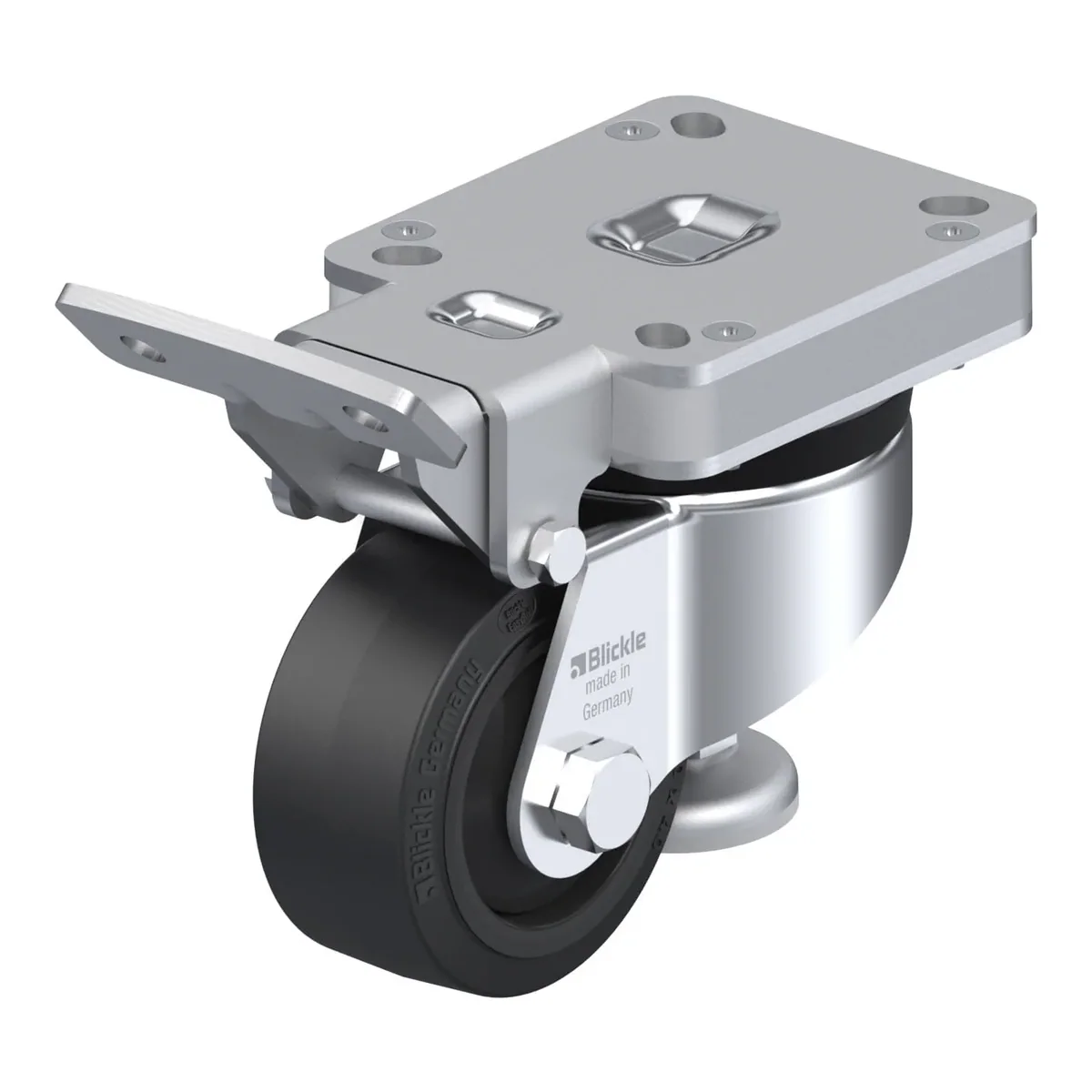

HRLK-POEV 82KF – nivelirni točkić Blickle

Šifra 886655

HRLK-POEV 82KF

Nivelirni točkić, Blickle, Made in Germany

Ukratko: HRLK-POEV 82KF je nivelirni točkić Blickle promjera 80 mm, širine 40 mm, nosivosti 170 kg pri 4 km/h (statički 425 kg). Ukupna visina je 120 mm. Cijena je 222.35 KM s PDV-om.

Levelling castor, with fixed-position operating lever and integrated truck lock, with top plate fitting, heavy duty wheel, with 'Blickle EasyRoll' elastic solid rubber tyres, with nylon wheel centre, with synthetic thread guard, large

222.35 KM

Cijena s PDV-om. Dostava širom Bosne i Hercegovine.

Veće količine: posebna ponuda na upit, +387 62 924 140, info@mhtrade.co.ba.

Tehnički podaci

Šifra artikla886655
EAN4047526299743
Promjer točka80 mm
Širina točka40 mm
Ukupna visina120 mm
Nosivost pri 4 km/h170 kg
Statička nosivost425 kg
Veličina ploče100 x 85 mm
Razmak rupa65.0 x 55.0 mm
Offset56 mm

Nosač

  • strong pressed steel, zinc-plated, blue-passivated, Cr6-free
  • double ball bearing in the swivel head
  • swivel head seal
  • minimum swivel head play and smooth rolling characteristic and increased service life due to the special dynamic Blickle riveting process
  • steel truck lock with rubber pad
  • height adjustment with lever

Točak

  • tyre: high-quality elastic solid rubber "Blickle EasyRoll" in smooth rolling quality, hardness 65 Shore A, colour black
  • wheel centre: high-quality nylon 6, impact resistant, colour black

Dodatne karakteristike

  • with synthetic thread guard, large
  • high chemical resistance to many aggressive substances, except oils
  • operating temperature: -20 °C to +80 °C, temporarily up to +100 °C, reduced load capacity over +35 °C
