Šifra 911713
HRLK-PO 82G-VS

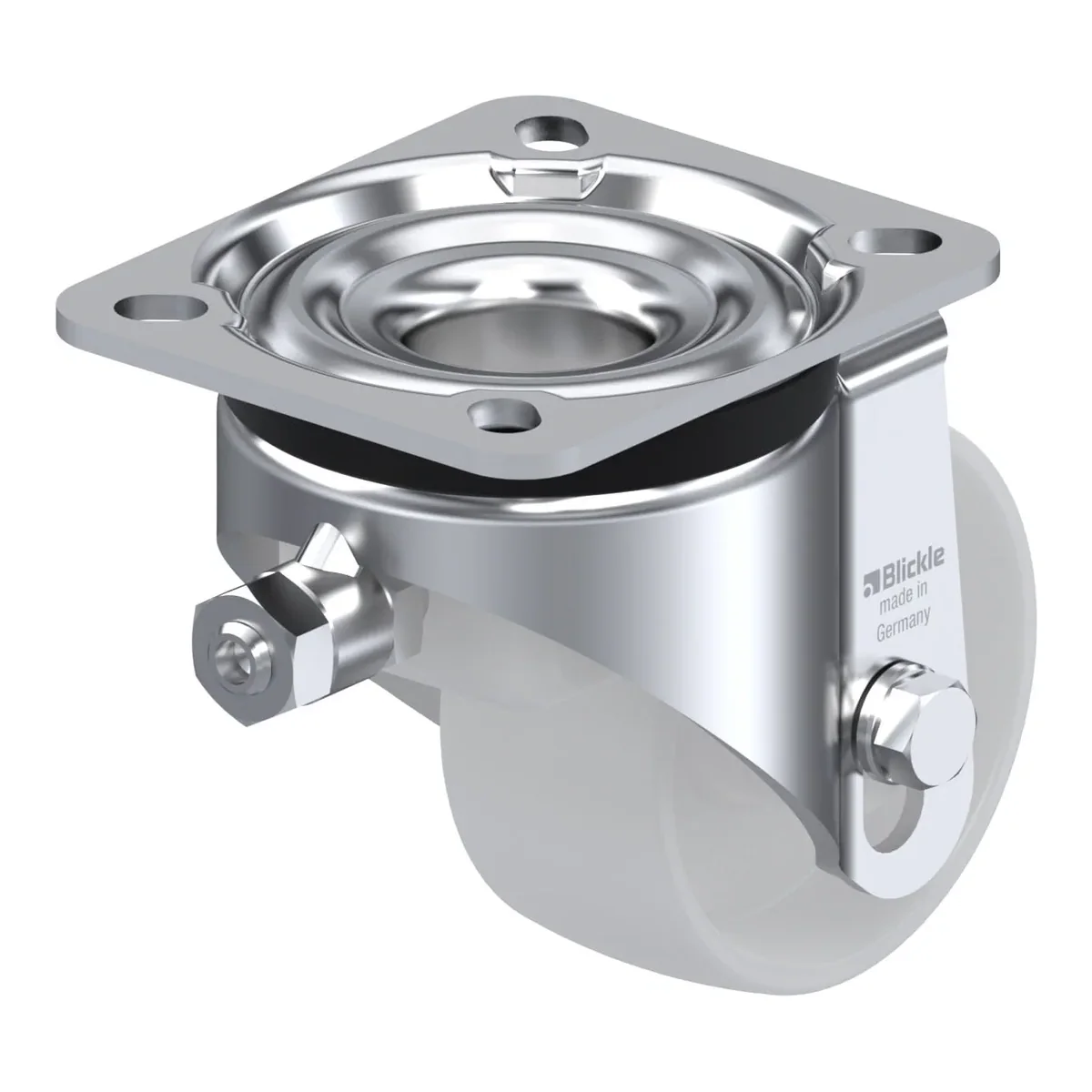

Nivelirni točkić, Blickle, Made in Germany
Ukratko: HRLK-PO 82G-VS je nivelirni točkić Blickle promjera 80 mm, širine 37 mm, nosivosti 230 kg pri 4 km/h (statički 575 kg). Ukupna visina je 108 mm. Cijena je 159.34 KM s PDV-om.
Pressed steel height adjustment castor, with adjustment screw, heavy duty design, with top plate fitting, nylon wheel
159.34 KM
Cijena s PDV-om. Dostava širom Bosne i Hercegovine.
Veće količine: posebna ponuda na upit, +387 62 924 140, info@mhtrade.co.ba.
Tehnički podaci
| Šifra artikla | 911713 |
|---|---|
| EAN | 4047526341268 |
| Promjer točka | 80 mm |
| Širina točka | 37 mm |
| Ukupna visina | 108 mm |
| Nosivost pri 4 km/h | 230 kg |
| Statička nosivost | 575 kg |
| Veličina ploče | 100 x 85 mm |
| Razmak rupa | 65.0 x 55.0 mm |
| Offset | 42 mm |
| Ne ostavlja tragove | da |
Nosač
- strong pressed steel, zinc-plated, blue-passivated, Cr6-free
- double ball bearing in the swivel head
- swivel head seal
- minimum swivel head play and smooth rolling characteristic and increased service life due to the special dynamic Blickle riveting process
- total height can be adjusted when stationary with adjustment screw (SW17), wheel locked in place with adjustment screw is used
Točak
- high-quality nylon 6, impact resistant, hardness 70 Shore D, colour natural white
Dodatne karakteristike
- high chemical resistance to many aggressive substances
- operating temperature: -25 °C to +80 °C, reduced load capacity over +35 °C
