Šifra 757022

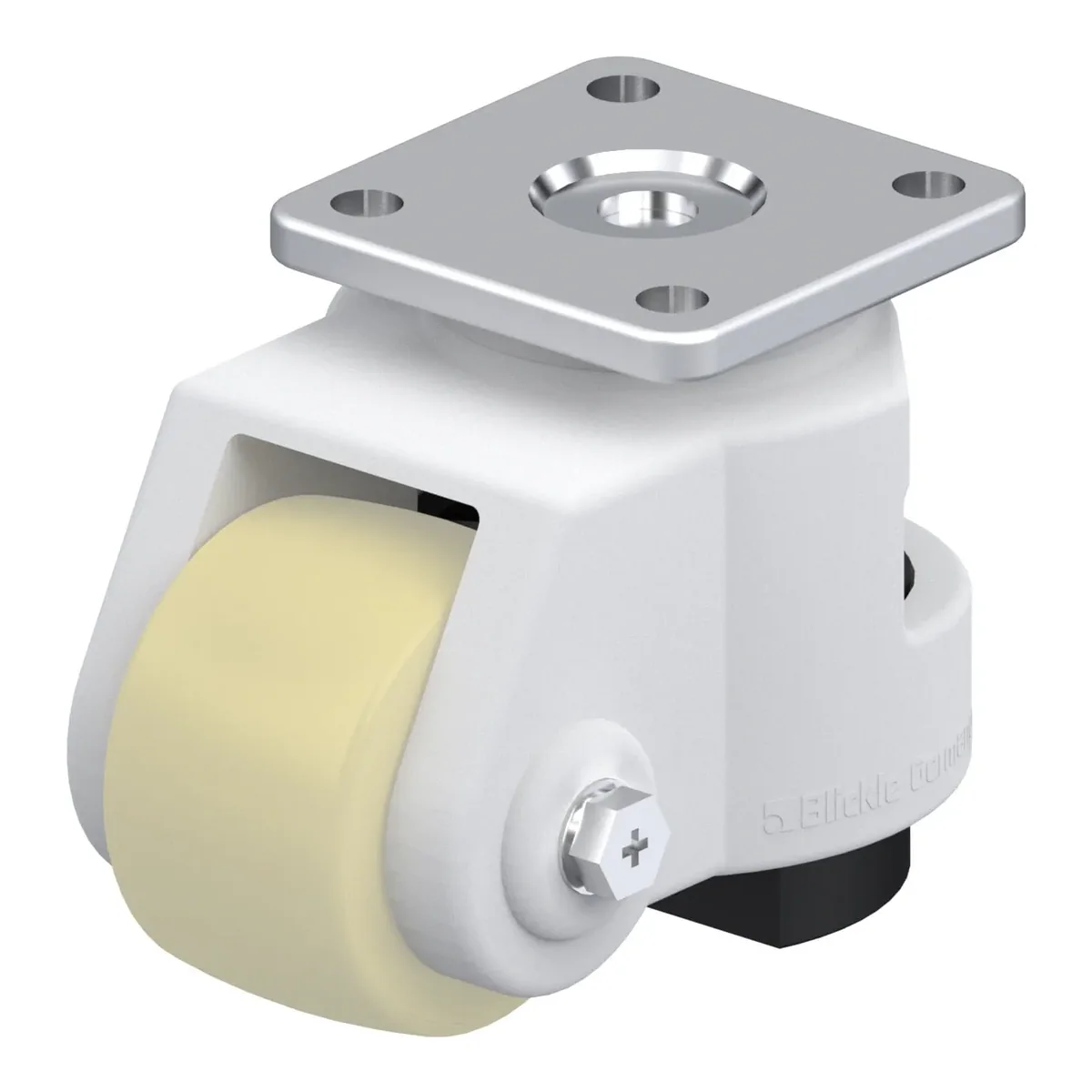

HRSP-GSPO 90G
Nivelirni točkić, Blickle, Made in Germany
Ukratko: HRSP-GSPO 90G je nivelirni točkić Blickle promjera 90 mm, širine 55 mm, nosivosti 2000 kg pri 4 km/h (statički 5000 kg). Ukupna visina je 130 mm. Cijena je 299.81 KM s PDV-om.
Levelling castor, with integrated truck lock and top plate fitting, heavy duty wheel made of compressed cast nylon
299.81 KM
Cijena s PDV-om. Dostava širom Bosne i Hercegovine.
Veće količine: posebna ponuda na upit, +387 62 924 140, info@mhtrade.co.ba.
Tehnički podaci
| Šifra artikla | 757022 |
|---|---|
| EAN | 4047526117603 |
| Promjer točka | 90 mm |
| Širina točka | 55 mm |
| Ukupna visina | 130 mm |
| Nosivost pri 4 km/h | 2000 kg |
| Statička nosivost | 5000 kg |
| Veličina ploče | 100 x 100 mm |
| Razmak rupa | 65.0 x 70.0 mm |
| Offset | 70 mm |
| Ne ostavlja tragove | da |
Nosač
- die-cast aluminium, powder-coated, colour ivory
- sealed ball bearing in the swivel head
- steel top plate
- truck lock made of aluminium
- height adjustment with wrench
- steel parts zinc-plated, blue-passivated, Cr6-free
Točak
- high-quality cast nylon, reaction-injected, impact resistant, hardness 80 Shore D, colour natural beige
Dodatne karakteristike
- Load capacity determined under the following conditions:– speed: max. 1 km/h– temperature: +15 °C to +30 °C– hardness, horizontal tread without obstacles– route: A cooling off period of 15 minutes is required after a maximum of 50 m
